DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KR03ESWITCH SLIDE DIP SPST 0.025A 24V |
635 |
|
规格书 |
KR | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

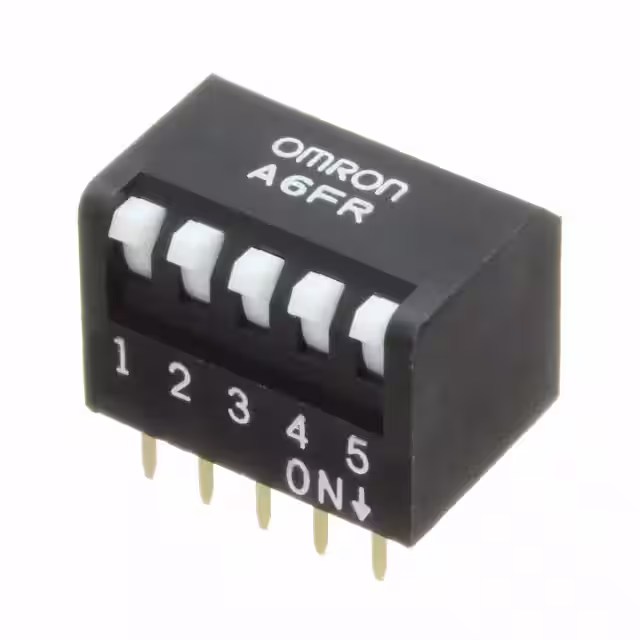

A6FR-5101SWITCH PIANO DIP SPST 0.025A 24V |
131 |
|
规格书 |
A6FR | Tube | Active | SPST | 5 | 25mA | 24VDC | Piano | Flush, Recessed | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
KJ02RTRSWITCH SLIDE DIP SPST 0.025A 24V |
888 |
|
规格书 |
KJ | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
CFS-0202MASWITCH SLIDE DIP SPST 0.1A 6V |
211 |
|
规格书 |
CFS | Tube | Active | SPST | 2 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.178" (4.52mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
208-12SWITCH SLIDE DIP SPST 0.05A 24V |
727 |
|
规格书 |
208 | Tube | Active | SPST | 12 | 50mA | 24VDC | Slide (Standard) | Raised | - | Tin | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
210-12MSSWITCH SLIDE DIP SPST 0.1A 20V |
2,544 |
|
规格书 |
210 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
206-8LPSTSWITCH SLIDE DIP SPST 0.05A 24V |
1,248 |
|
规格书 |
206 | Tube | Active | SPST | 8 | 50mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.299" (7.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

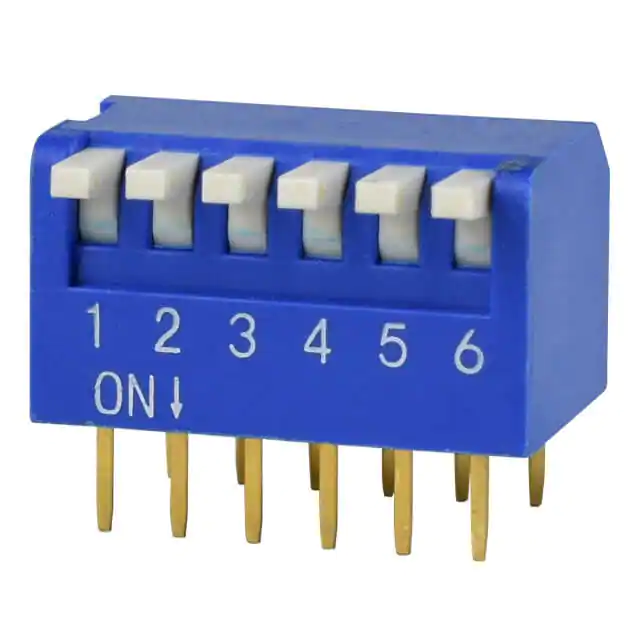

DS02C-254-1L-06BESWITCH PIANO DIP SPST 0.025A 24V |
762 |
|
规格书 |
DS02-254 | Tube | Active | SPST | 6 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

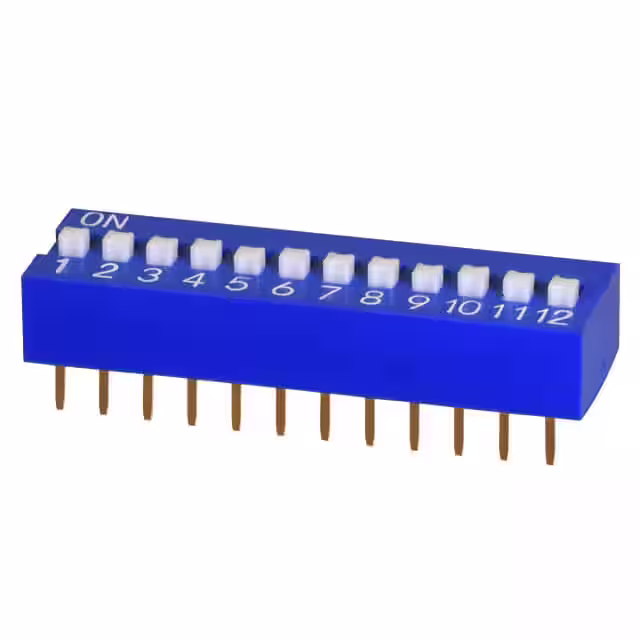

DS01C-254-L-12BESWITCH SLIDE DIP SPST 0.025A 24V |
542 |
|
规格书 |
DS01-254 | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

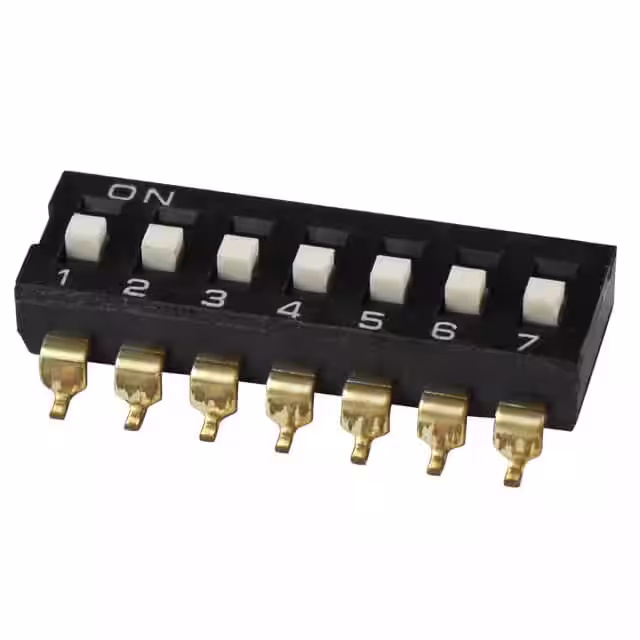

DS04-254-2-07BK-SMTSWITCH SLIDE DIP SPST 0.025A 24V |
822 |
|
规格书 |
DS04-254-SMT | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.167" (4.25mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KR04RSWITCH SLIDE DIP SPST 0.025A 24V |
764 |
|
规格书 |
KR | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KR04ESWITCH SLIDE DIP SPST 0.025A 24V |
709 |
|
规格书 |
KR | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

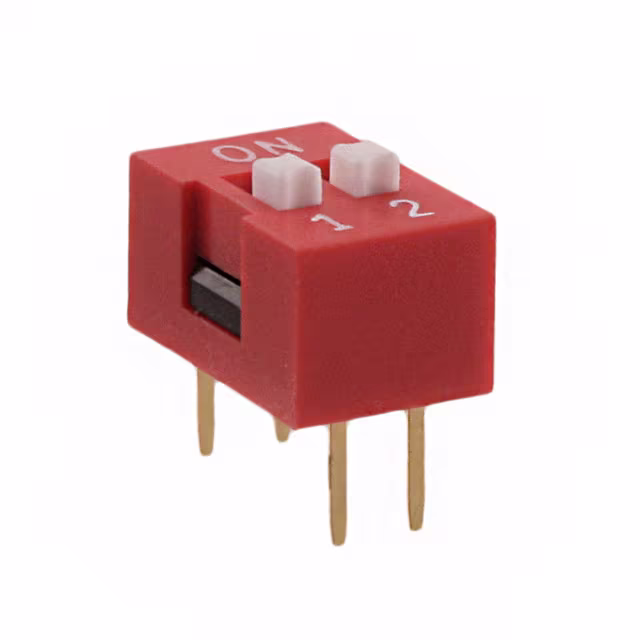

KAS1102ESWITCH SLIDE DIP SPST 0.025A 24V |
1,336 |
|
规格书 |
KAS | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.275" (6.99mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

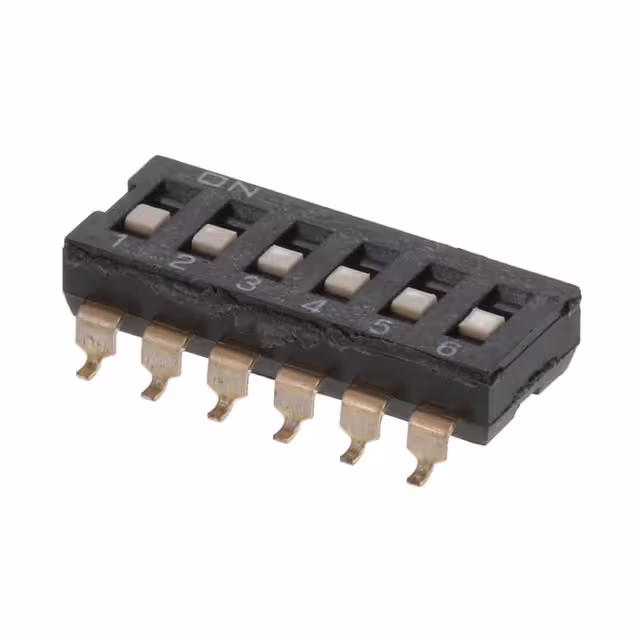

DS04-254-2-06BK-SMT-TRSWITCH SLIDE DIP SPST 0.025A 24V |
597 |
|
规格书 |
DS04-254-SMT | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.167" (4.25mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
206-7STSWITCH SLIDE DIP SPST 0.05A 24V |
4,454 |
|
规格书 |
206 | Tube | Active | SPST | 7 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

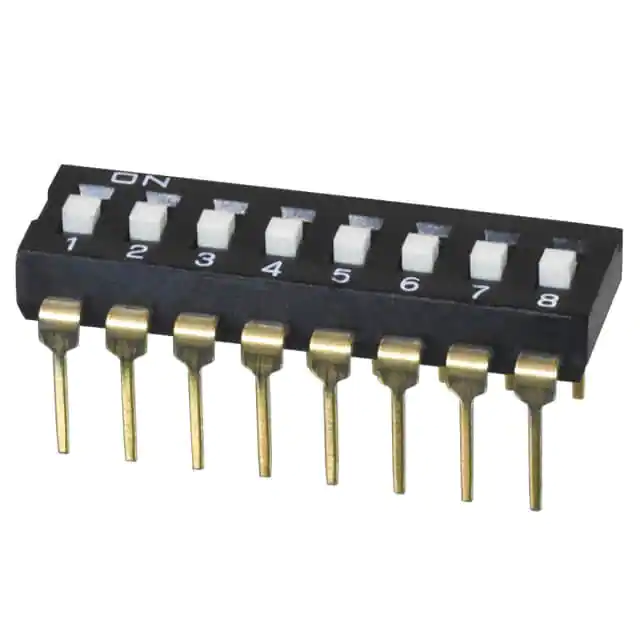

DS04-254-2L-08BKSWITCH SLIDE DIP SPST 0.025A 24V |
861 |
|
规格书 |
DS04-254 | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
204-4STRSWITCH SLIDE DIP SPST 0.05A 24V |
20,503 |
|
规格书 |
204 | Tape & Reel (TR) | Active | SPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
KAE04LGGTSWITCH SLIDE DIP SPST 0.025A 24V |
8,977 |
|
规格书 |
KAE | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
206-9SWITCH SLIDE DIP SPST 0.05A 24V |
912 |
|
规格书 |
206 | Tube | Active | SPST | 9 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|

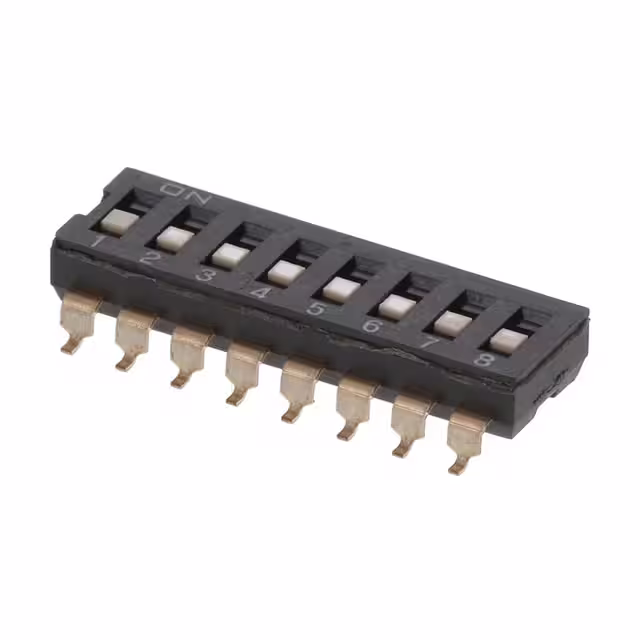

DS04-254-2-08BK-SMTSWITCH SLIDE DIP SPST 0.025A 24V |
538 |
|
规格书 |
DS04-254-SMT | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.167" (4.25mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
