DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78B08SWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
规格书 |
78 | Bag | Obsolete | SPST | 8 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
78B09SWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
规格书 |
78 | Bag | Obsolete | SPST | 9 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
78B10SWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
规格书 |
78 | Bag | Obsolete | SPST | 10 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
78B12SWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
规格书 |
78 | Bag | Obsolete | SPST | 12 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
78RB02SSWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
规格书 |
78 | Bag | Obsolete | SPST | 2 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
78RB03SSWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
规格书 |
78 | Bag | Obsolete | SPST | 3 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
78RB04SSWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
规格书 |
78 | Bag | Obsolete | SPST | 4 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
78RB05SSWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
规格书 |
78 | Bag | Obsolete | SPST | 5 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
78RB06SSWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
规格书 |
78 | Bag | Obsolete | SPST | 6 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
78RB07SSWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
规格书 |
78 | Bag | Obsolete | SPST | 7 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
78RB08SSWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
规格书 |
78 | Bag | Obsolete | SPST | 8 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
78RB09SSWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
规格书 |
78 | Tube | Obsolete | SPST | 9 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
78RB10SSWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
规格书 |
78 | Bag | Obsolete | SPST | 10 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
78RB02SWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
规格书 |
78 | Bag | Obsolete | SPST | 2 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
78RB03SWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
规格书 |
78 | Bag | Obsolete | SPST | 3 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
78RB04SWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
规格书 |
78 | Bag | Obsolete | SPST | 4 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
78RB05SWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
规格书 |
78 | Bag | Obsolete | SPST | 5 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|

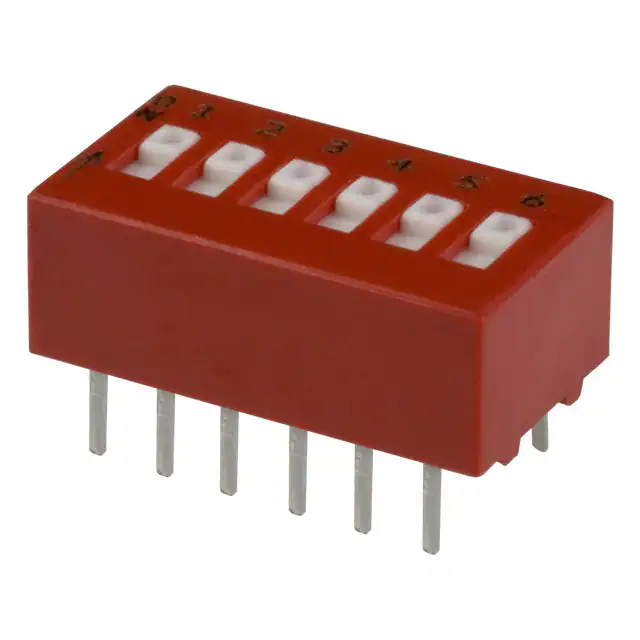

78RB06SWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
规格书 |
78 | Bag | Obsolete | SPST | 6 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|

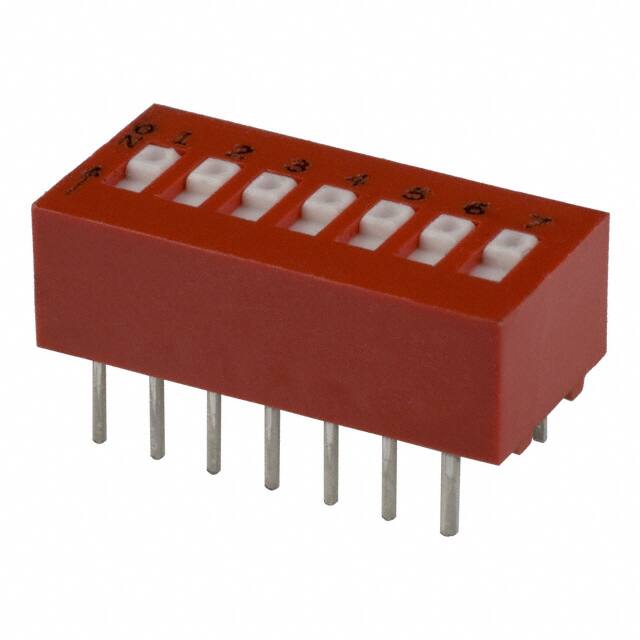

78RB07SWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
规格书 |
78 | Bag | Obsolete | SPST | 7 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
78RB08SWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
规格书 |
78 | Bag | Obsolete | SPST | 8 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
