DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT65125SWITCH ROTARY DIP BCD 0.15A 24V |
0 |
|
规格书 |
PT65 | Tube | Active | BCD | 6 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
PT65127SW ROTARY DIP OCT COMP 0.15A 24V |
0 |
|
规格书 |
PT65 | Tube | Active | Octal Complement | 8 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
76RSC04STSWITCH ROCKER DIP SPDT 0.15A 30V |
0 |
|
规格书 |
76 | Tube | Active | SPDT | 4 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.267" (6.78mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
PT65726SW ROTARY DIP OCTAL 0.15A 24V |
0 |
|
规格书 |
PT65 | Tube | Active | Octal | 8 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65721SWITCH ROTARY DIP SP4T 0.15A 24V |
0 |
|
规格书 |
PT65 | Tube | Active | SP4T | 4 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65712SWITCH ROTARY DIP BCD 0.15A 24V |
0 |
|
规格书 |
PT65 | Tube | Active | BCD | 4 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
1825428-7SWITCH SLIDE DIP SPST 0.1A 24V |
0 |
|
规格书 |
ARE | Tube | Obsolete | SPST | 8 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
78J02SRATSWITCH SLIDE DIP SPDT 0.15A 30V |
0 |
|
规格书 |
78 | Tube | Active | SPDT | 2 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

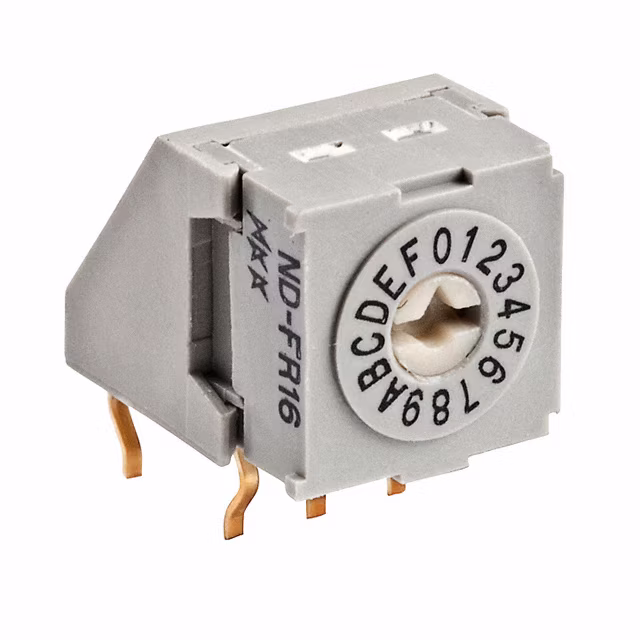

NDFR16HSWITCH ROTARY DIP HEX 0.1A 5V |
25 |
|
规格书 |
ND | Tray | Obsolete | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.312" (7.92mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 75°C |
|
|
IKH0407000DIP SWITCH IKH HALF PITCH |
0 |
|
规格书 |
IKH | Bulk | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.060" (1.52mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -20°C ~ 70°C |
|
|
IKH0803001DIP SWITCH IKH HALF PITCH |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
78F04SRATSWITCH SLIDE DIP DPST 0.15A 30V |
0 |
|
规格书 |
78 | Tube | Active | DPST | 4 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
P60A301L508SWITCH ROTARY DIP BCD 0.15A 24V |
0 |
|
- |
P60A | Tube | Active | BCD | 10 | 150mA | 24VDC | Rotary with Shaft | Raised | Stainless Steel | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
PT65702L254DIP ROTARY SWITCH P60 10MM |
0 |
|
规格书 |
PT65 | Bulk | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | 0.393" (9.98mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 70°C |
|
|
PT65702L508DIP ROTARY SWITCH P60 10MM |
0 |
|
规格书 |
PT65 | Bulk | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | 0.393" (9.98mm) | Through Hole, Right Angle | PC Pin | 0.200" (5.08mm) | Yes | - | -20°C ~ 70°C |
|
PT65502SW ROTARY DIP BCD COMP 0.15A 24V |
0 |
|
规格书 |
PT65 | Tube | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary with Knob | Raised | Phosphor Bronze | Gold | 0.469" (11.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65301VSWITCH ROTARY DIP BCD 0.15A 24V |
0 |
|
规格书 |
PT65 | Tube | Active | BCD | 10 | 150mA | 24VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
76SD02TSWITCH ROCKER DIP DPDT 0.15A 30V |
0 |
|
规格书 |
76 | Tube | Active | DPDT | 2 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CRD16RW1ABSW ROTARY DIP HEX 0.4VA 20VAC/DC |
0 |
|
规格书 |
CRD | Bulk | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary with Knob | Raised | Beryllium Copper | Gold | 0.414" (10.51mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|

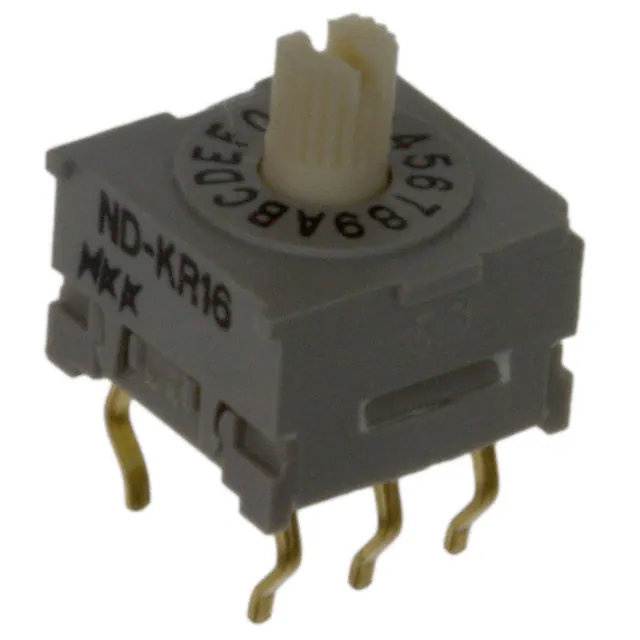

NDKR16PSWITCH ROTARY DIP HEX 0.1A 5V |
18 |
|
规格书 |
ND | Tray | Obsolete | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.331" (8.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 75°C |
