DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD10CM0CBSW ROTARY DIP BCD COMP 0.4VA 20V |
0 |
|
规格书 |
CD | Bulk | Active | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.168" (4.27mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
|
NDS09TVDIP SWITCH ND STANDARD |
0 |
|
规格书 |
NDS | Bulk | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.270" (6.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
DRM16RASWITCH ROTARY DIP HEX 0.4VA 20V |
0 |
|
规格书 |
DR | Tube | Obsolete | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.413" (10.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
|
94HAC08WRSW ROTARY DIP OCT COMP 0.1A 50V |
0 |
|
规格书 |
94H | Tape & Reel (TR) | Obsolete | Octal Complement | 8 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
|
76HPSB08GWTSWITCH PIANO DIP SPST 0.15A 30V |
0 |
|
规格书 |
76HP | Tube | Active | SPST | 8 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.337" (8.56mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
78HF02GWTSWITCH SLIDE DIP DPST 0.15A 30V |
0 |
|
规格书 |
78H | Tube | Active | DPST | 2 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.327" (8.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
76PRB06TSWITCH PIANO DIP SPST 0.15A 30V |
0 |
|
规格书 |
76 | Tube | Active | SPST | 6 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
78B02RATSWITCH SLIDE DIP SPST 0.15A 30V |
0 |
|
规格书 |
78 | Tube | Active | SPST | 2 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
P56SMT964TRSW ROTARY DIP GRAY CODE 0.1A 24V |
0 |
|
- |
P56 | Tape & Reel (TR) | Obsolete | Gray Code | 64 | 100mA | 24VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.220" (5.59mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -25°C ~ 95°C |
|
|
94HFB16TSWITCH ROTARY DIP HEX 0.1A 50V |
0 |
|
规格书 |
94H | Tube | Active | Hexadecimal | 16 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.225" (5.72mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|

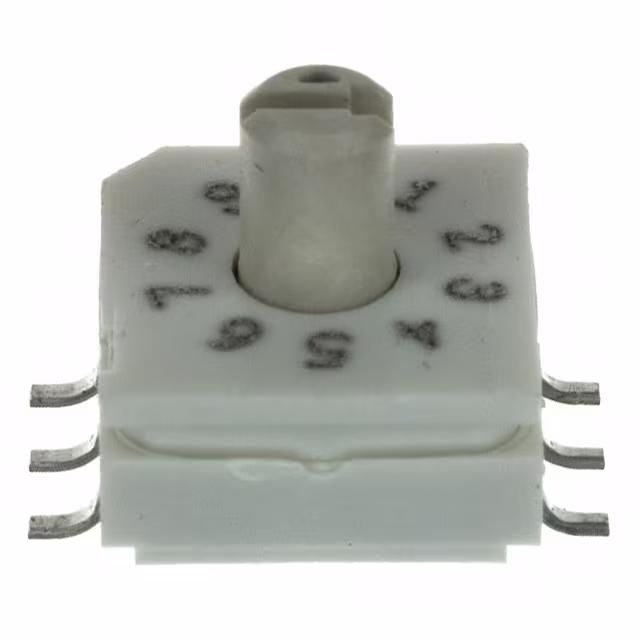

94HCB10WTSWITCH ROTARY DIP BCD 0.1A 50V |
0 |
|
规格书 |
94H | Tube | Active | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
|
94HAC10WTSW ROTARY DIP BCD COMP 0.1A 50V |
0 |
|
规格书 |
94H | Tube | Active | BCD Complement | 10 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
|
94HBC08TSW ROTARY DIP OCT COMP 0.1A 50V |
0 |
|
规格书 |
94H | Tube | Active | Octal Complement | 8 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.495" (12.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
|
94HBC10TSW ROTARY DIP BCD COMP 0.1A 50V |
0 |
|
规格书 |
94H | Tube | Active | BCD Complement | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.495" (12.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
|
94HBC10WTSW ROTARY DIP BCD COMP 0.1A 50V |
0 |
|
规格书 |
94H | Tube | Active | BCD Complement | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
|
94HBC16TSW ROTARY DIP HEX COMP 0.1A 50V |
0 |
|
规格书 |
94H | Tube | Active | Hexadecimal Complement | 16 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.495" (12.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
|
94HBC16WTSW ROTARY DIP HEX COMP 0.1A 50V |
0 |
|
规格书 |
94H | Tube | Active | Hexadecimal Complement | 16 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
|
94HCC08TSW ROTARY DIP OCT COMP 0.1A 50V |
0 |
|
规格书 |
94H | Tube | Active | Octal Complement | 8 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.395" (10.02mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
|
94HCC08WTSW ROTARY DIP OCT COMP 0.1A 50V |
0 |
|
规格书 |
94H | Tube | Active | Octal Complement | 8 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
|
94HCC10TSW ROTARY DIP BCD COMP 0.1A 50V |
0 |
|
规格书 |
94H | Tube | Active | BCD Complement | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.395" (10.02mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
