上传BOM
DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
210-4ESSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
1,471 |
|
规格书 |
210 | Tube | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
195-2MSTSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
78,833 |
|
规格书 |
195 | Tube | Active | SPST | 2 | 50mA | 24VDC | Piano | Raised | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
208-2SWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
2,122 |
|
规格书 |
208 | Tube | Active | SPST | 2 | 50mA | 24VDC | Slide (Standard) | Raised | - | Tin | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
209-2LPSTSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,456 |
|
规格书 |
209 | Tube | Active | SPST | 2 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
|
208-3SWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
7,865 |
|
规格书 |
208 | Tube | Active | SPST | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Tin | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
206-7SWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
8,365 |
|
规格书 |
206 | Tube | Active | SPST | 7 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
206-3SWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
3,028 |
|
规格书 |
206 | Tube | Active | SPST | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
210-6MSSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
1,528 |
|
规格书 |
210 | Tube | Active | SPST | 6 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
209-4LPSTSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,077 |
|
规格书 |
209 | Tube | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|

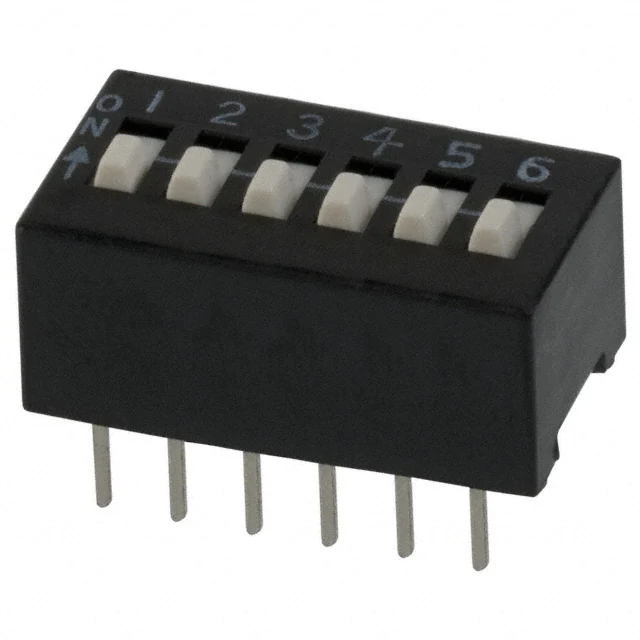

208-6SWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
2,045 |
|
规格书 |
208 | Tube | Active | SPST | 6 | 50mA | 24VDC | Slide (Standard) | Raised | - | Tin | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
