DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DMR02TNTRDIP SWITCH DM LOW PROFILE |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GDB10SW ROCKER DIP SPST 0.025A 24V |
0 |
|
- |
GDB | Bulk | Obsolete | SPST | 10 | 25mA | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.169" (4.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
TDP10H1SBD1SWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
规格书 |
TDP | Tube | Active | SPST | 10 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.161" (4.10mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
DRD10RAESWITCH ROTARY DIP BCD 0.4VA 20V |
0 |
|
规格书 |
DRD | Tube | Obsolete | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.413" (10.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
90HBW08RTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
90HB | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CHS-08MB1SWITCH SLIDE DIP SPST 0.1A 6V |
0 |
|
- |
CHS | Tube | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
CHS-08MA1SWITCH SLIDE DIP SPST 0.1A 6V |
0 |
|
- |
CHS | Tube | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
CRD10CM0SKRSW ROTARY DIP BCD COMP 0.4VA 20V |
0 |
|
规格书 |
CRD | Tape & Reel (TR) | Obsolete | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.271" (6.88mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -20°C ~ 85°C |
|

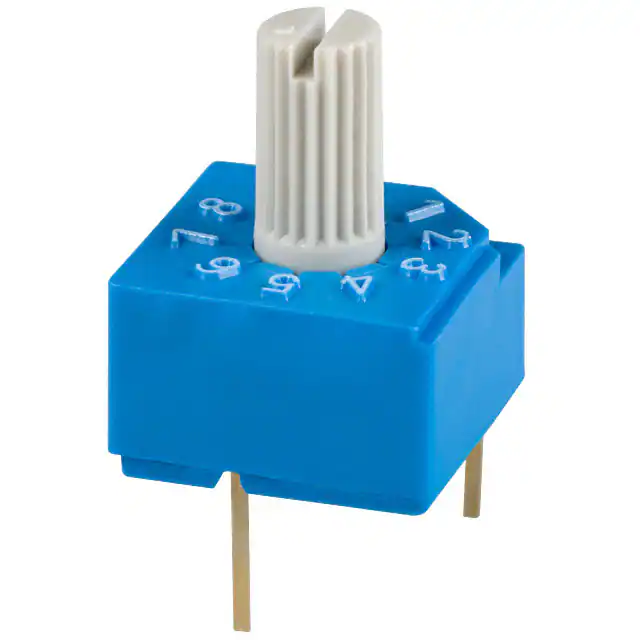

S-2110ASWITCH ROTARY DIP BCD 0.1A 5V |
0 |
|
规格书 |
S-2000A | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.535" (13.59mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
S-1130ASW ROTARY DIP HEX COMP 0.1A 5V |
0 |
|
规格书 |
S-1000A | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.535" (13.59mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
S-2130ASW ROTARY DIP BCD COMP 0.1A 5V |
0 |
|
规格书 |
S-2000A | Bulk | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.535" (13.59mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
SD10H0SBRSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
规格书 |
SD | Tape & Reel (TR) | Active | SPST | 10 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
MRD16STRSWITCH ROTARY DIP HEX 0.4VA 20V |
0 |
|
规格书 |
MRD | Tape & Reel (TR) | Obsolete | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.130" (3.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Process Sealed | -10°C ~ 85°C |
|

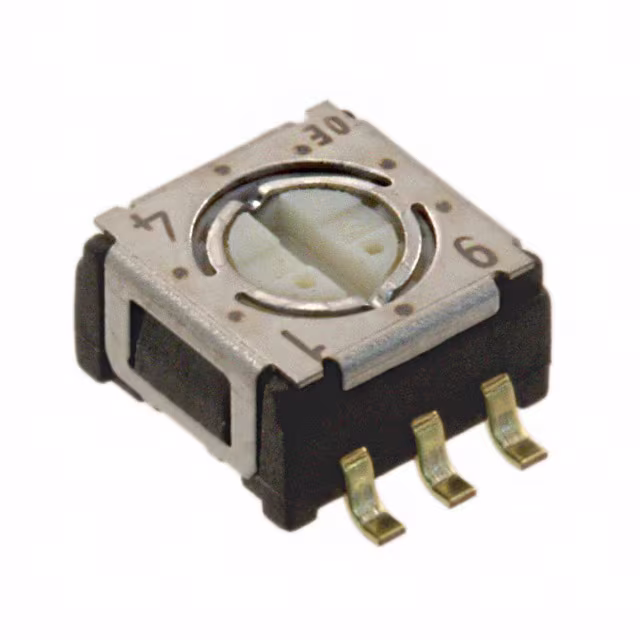

S-4010TBSWITCH ROTARY DIP BCD 0.1A 2.4V |
0 |
|
规格书 |
S-4000 | Tape & Reel (TR) | Active | BCD | 10 | 100mA | 2.4VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.102" (2.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -25°C ~ 70°C |
|
|
90HGBW08RTSWITCH SLIDE DIP SPST 0.01A 30V |
0 |
|
- |
90HGB | Tape & Reel (TR) | Obsolete | SPST | 8 | 10mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SS-10-16NPEWSWITCH ROTARY DIP SP6T 0.1A 5V |
0 |
|
- |
SS-10 | Tray | Active | SP6T | 6 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.535" (13.59mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|
|
SS-10-15SPEWSWITCH ROTARY DIP SP5T 0.1A 5V |
0 |
|
- |
SS-10 | Tray | Active | SP5T | 5 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | - | - | 0.276" (7.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 70°C |
|
|
SS-10-16SP-AEWSWITCH ROTARY DIP SP6T 0.1A 5V |
0 |
|
- |
SS-10 | Tray | Active | SP6T | 6 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.535" (13.59mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 70°C |
|
|
DMR02TVTRDIP SWITCH DM LOW PROFILE |
0 |
|
规格书 |
DM | Bulk | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
MPG305BSW PIANO DIP DPST 0.025A 24V |
0 |
|
规格书 |
MPG | Tube | Active | DPST-NO/NC | 5 | 25mA | 24VDC | Piano | Raised | Brass | Gold | 0.381" (9.68mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 70°C |
