DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

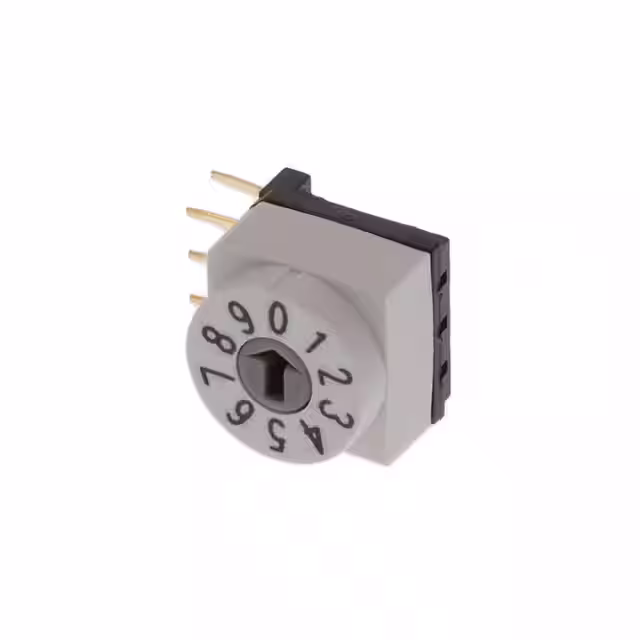

RDTAR10R2TSWITCH ROTARY DIP BCD 0.15A 42V |
0 |
|
规格书 |
RDT | Tube | Active | BCD | 10 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
1-1825013-6SW ROTARY DIP HEX COMP 0.4VA 20V |
0 |
|
规格书 |
MRD | Tape & Reel (TR) | Obsolete | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.122" (3.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Process Sealed | -30°C ~ 85°C |
|
|
A6S-4102-PMHSWITCH SLIDE DIP SPST 0.025A 24V |
4 |
|
规格书 |
A6S-H | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
|
DM03DIP SWITCH DM LOW PROFILE |
0 |
|
规格书 |
DM | Bulk | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
DMR03DIP SWITCH DM LOW PROFILE |
0 |
|
规格书 |
DM | Bulk | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
NDIR09HTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
NDI | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
SSH06SWITCH SLIDE DIP SPST 0.4VA 20V |
0 |
|
规格书 |
SSH | Tube | Obsolete | SPST | 6 | 0.4VA | 20VAC/DC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.169" (4.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|
|
CFP-0602MBSWITCH PIANO DIP SPST 0.1A 6V |
0 |
|
- |
CFP | Tube | Active | SPST | 6 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFP-0611MBSWITCH PIANO DIP SPST 0.1A 6V |
0 |
|
- |
CFP | Tube | Active | SPST | 6 | 100mA | 6VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.264" (6.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFP-0612MCSWITCH PIANO DIP SPST 0.1A 6V |
0 |
|
- |
CFP | Tube | Active | SPST | 6 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.295" (7.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFP-0612MBSWITCH PIANO DIP SPST 0.1A 6V |
0 |
|
- |
CFP | Tube | Active | SPST | 6 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFP-0611MCSWITCH PIANO DIP SPST 0.1A 6V |
0 |
|
- |
CFP | Tube | Active | SPST | 6 | 100mA | 6VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.295" (7.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFP-0601MCSWITCH PIANO DIP SPST 0.1A 6V |
0 |
|
- |
CFP | Tube | Active | SPST | 6 | 100mA | 6VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.295" (7.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFP-0601MBSWITCH PIANO DIP SPST 0.1A 6V |
0 |
|
- |
CFP | Tube | Active | SPST | 6 | 100mA | 6VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.264" (6.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFP-0602MCSWITCH PIANO DIP SPST 0.1A 6V |
0 |
|
- |
CFP | Tube | Active | SPST | 6 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.295" (7.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
97CG04SRTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
97 | Bulk | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
|
RTF04C3CSW ROTARY DIP BCD COMP 0.1A 5VDC |
0 |
|
规格书 |
RTF | Bulk | Active | BCD Complement | 4 | 100mA | 5VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.272" (6.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RTF04R1CSWITCH ROTARY DIP BCD 100MA 5VDC |
0 |
|
规格书 |
RTF | Bulk | Active | BCD | 4 | 100mA | 5VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.154" (3.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RTF04C1CSW ROTARY DIP BCD COMP 0.1A 5VDC |
0 |
|
规格书 |
RTF | Bulk | Active | BCD Complement | 4 | 100mA | 5VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.154" (3.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RTF04R3CSWITCH ROTARY DIP BCD 100MA 5VDC |
0 |
|
规格书 |
RTF | Bulk | Active | BCD | 4 | 100mA | 5VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.272" (6.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
