DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6TN-7101SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
32 |
|
规格书 |
A6TN | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
A6SR-4101SWITCH PIANO DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
88 |
|
规格书 |
A6SR | Tube | Active | SPST | 4 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6T-5102SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
35 |
|
规格书 |
A6T | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
|
A6S-5104-PHSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
79 |
|
规格书 |
A6S-H | Tape & Reel (TR) | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

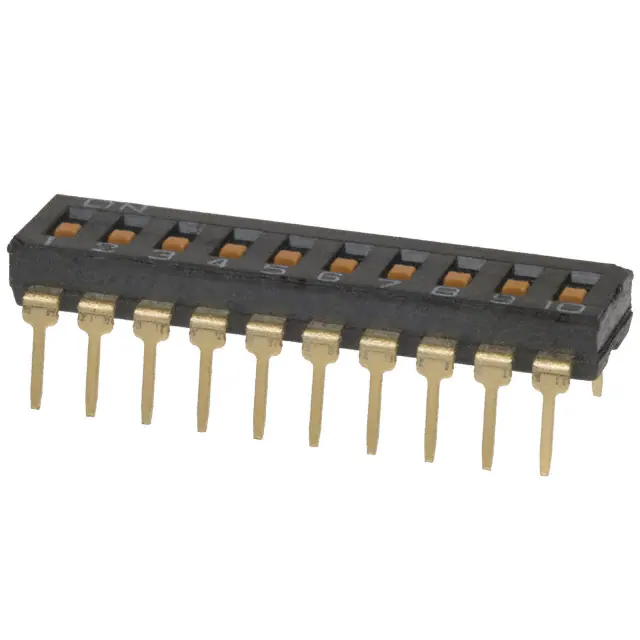

A6T-0102SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
62 |
|
规格书 |
A6T | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|

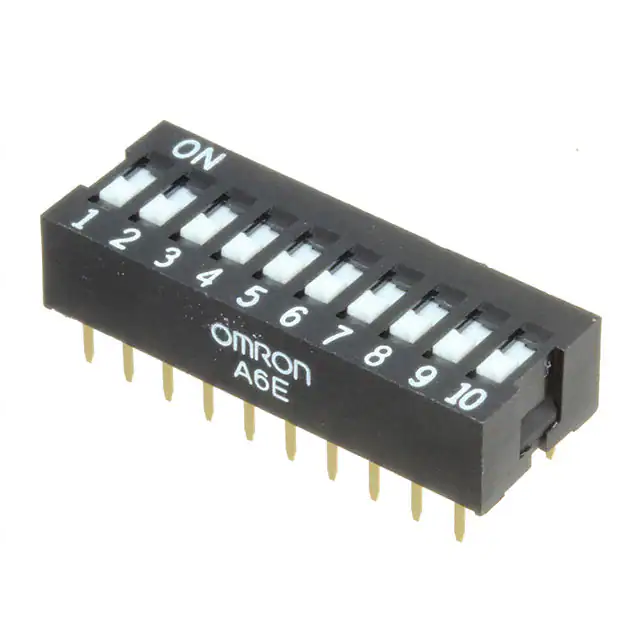

A6E-0101-NSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
31 |
|
规格书 |
A6E-N | Tray | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.230" (5.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

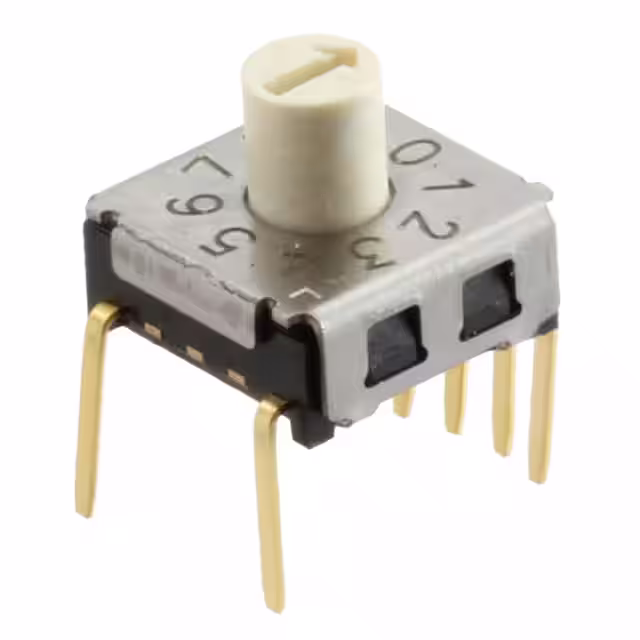

A6K-104RSSWITCH ROTARY DIP BCD 0.025A 24V Omron Electronics Inc-EMC Div |
19 |
|
规格书 |
A6K | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.050" (1.27mm), Half | No | - | -30°C ~ 80°C |
|
6HF-0102-PSWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div |
96 |
|
规格书 |
A6HF | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|

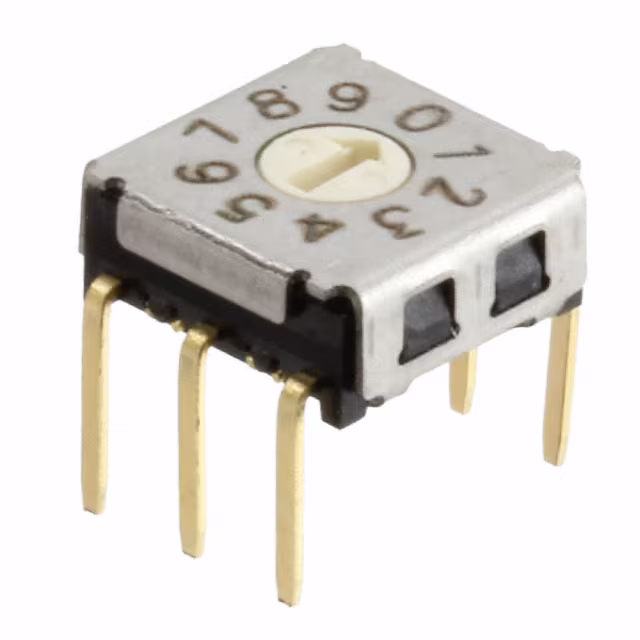

A6K-102RFSWITCH ROTARY DIP BCD 0.025A 24V Omron Electronics Inc-EMC Div |
77 |
|
规格书 |
A6K | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.118" (3.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 80°C |
|

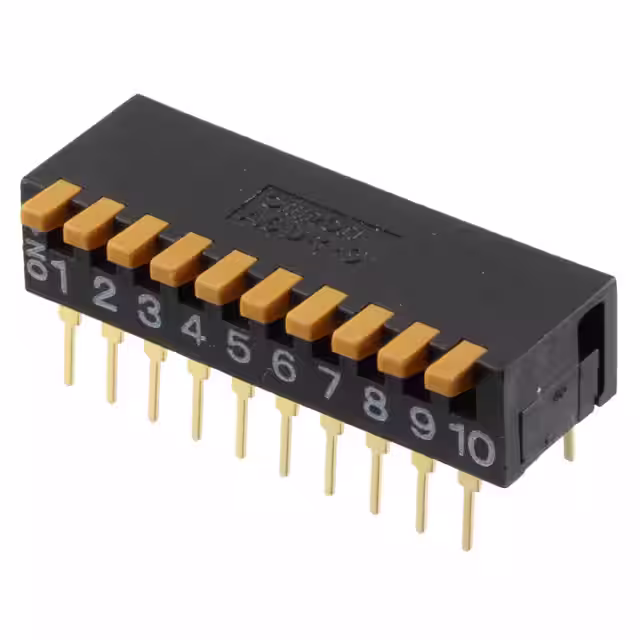

A6DR-0100SWITCH PIANO DIP SPST 0.03A 30V Omron Electronics Inc-EMC Div |
50 |
|
规格书 |
A6DR | Tray | Active | SPST | 10 | 30mA | 30VDC | Piano | Raised | - | Gold | 0.292" (7.41mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
