DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IKH1004000DIP SWITCH IKH HALF PITCH |
0 |
|
规格书 |
IKH | Bulk | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.060" (1.52mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -20°C ~ 70°C |
|
|
NDIR07SSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
NDI | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
NDIR07HSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
NDI | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
NDI07SSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
NDI | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.197" (5.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
CHS-08A1SWITCH SLIDE DIP SPST 0.1A 6V |
0 |
|
规格书 |
CHS | Bulk | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
CHS-08B1SWITCH SLIDE DIP SPST 0.1A 6V |
0 |
|
规格书 |
CHS | Bulk | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
SD07H0SBRSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
规格书 |
SD | Tape & Reel (TR) | Active | SPST | 7 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

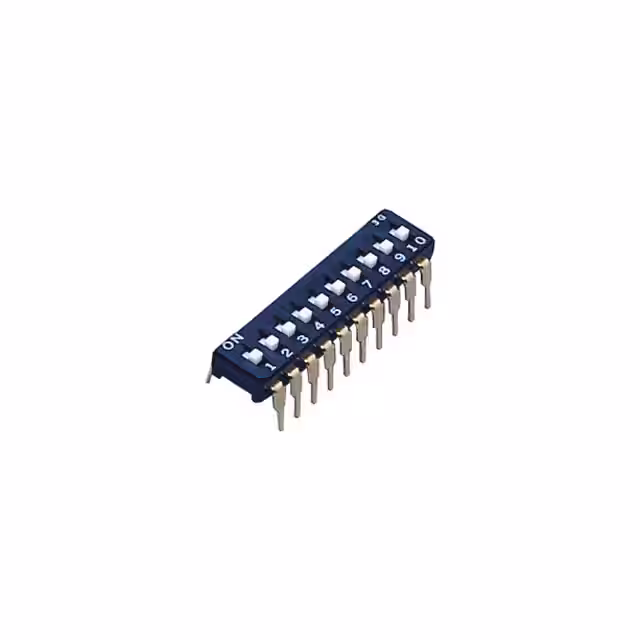

CFS-1002MCSWITCH SLIDE DIP SPST 0.1A 6V |
0 |
|
规格书 |
CFS | Tube | Active | SPST | 10 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.201" (5.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
1825007-8SWITCH ROTARY DIP BCD 0.4VA 20V |
0 |
|
规格书 |
DRD | Tube | Active | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.291" (7.39mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
1825152-4SWITCH SLIDE DIP SPST 0.4VA 20V |
0 |
|
规格书 |
SSV | Tube | Obsolete | SPST | 8 | 0.4VA | 20VAC/DC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.197" (5.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
NDI08SSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
NDI | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.197" (5.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
CRE10RRDM0ASW ROTARY DIP BCD 150MA 42VDC |
0 |
|
规格书 |
CRE | Bulk | Active | BCD | 10 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Brass | Gold | 0.463" (11.75mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
CRE10RRDM1ASW ROTARY DIP BCD 150MA 42VDC |
0 |
|
规格书 |
CRE | Bulk | Active | BCD | 10 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Brass | Gold | 0.463" (11.75mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
CRE10ROTM0ASW ROTARY DIP BCD 150MA 42VDC |
0 |
|
规格书 |
CRE | Bulk | Active | BCD | 10 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Brass | Gold | 0.463" (11.75mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
CFP-0512MBSWITCH PIANO DIP SPST 0.1A 6V |
0 |
|
- |
CFP | Tube | Active | SPST | 5 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFP-0501MBSWITCH PIANO DIP SPST 0.1A 6V |
0 |
|
- |
CFP | Tube | Active | SPST | 5 | 100mA | 6VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.264" (6.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFP-0502MBSWITCH PIANO DIP SPST 0.1A 6V |
0 |
|
- |
CFP | Tube | Active | SPST | 5 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFP-0511MBSWITCH PIANO DIP SPST 0.1A 6V |
0 |
|
- |
CFP | Tube | Active | SPST | 5 | 100mA | 6VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.264" (6.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFP-0501MCSWITCH PIANO DIP SPST 0.1A 6V |
0 |
|
- |
CFP | Tube | Active | SPST | 5 | 100mA | 6VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.295" (7.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFP-0502MCSWITCH PIANO DIP SPST 0.1A 6V |
0 |
|
- |
CFP | Tube | Active | SPST | 5 | 100mA | 6VDC | Piano | Raised | Copper Alloy | Gold | 0.295" (7.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
