DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SH-7030MASW ROTARY DIP BCD COMP 0.1A 5V |
0 |
|
- |
SH-7000 | Tube | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.148" (3.75mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SH-7070MASW ROTARY DIP HEX COMP 0.1A 5V |
0 |
|
- |
SH-7000 | Tube | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.148" (3.75mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
SH-7070MBSW ROTARY DIP HEX COMP 0.1A 5V |
0 |
|
- |
SH-7000 | Tube | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

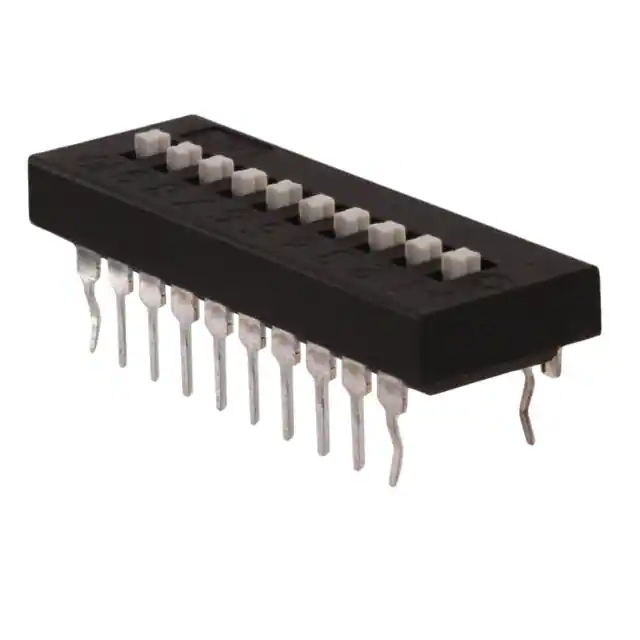

KAT1110ESWITCH SLIDE DIP SPDT 0.025A 24V |
0 |
|
规格书 |
KAT | Tube | Obsolete | SPDT | 10 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | - |
|
|
CRE04RRDM1ASW ROTARY DIP BCD 150MA 42VDC |
0 |
|
规格书 |
CRE | Bulk | Active | BCD | 4 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Brass | Gold | 0.463" (11.75mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
CVS-02BSWITCH SLIDE DIP SPST 0.1A 6V |
0 |
|
规格书 |
CVS | Bulk | Active | SPST | 2 | 100mA | 6VDC | Slide (Standard) | Raised | Stainless Steel | Gold | 0.057" (1.45mm) | Surface Mount | Gull Wing | 0.039" (1.00mm) | No | - | -40°C ~ 85°C |
|
RTE1610N44SWITCH ROTARY DIP HEX 0.1A 30V |
0 |
|
规格书 |
RTE | Tube | Active | Hexadecimal | 16 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
RTE1612N44SWITCH ROTARY DIP HEX 0.1A 30V |
0 |
|
规格书 |
RTE | Tube | Active | Hexadecimal | 16 | 100mA | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 0.321" (8.15mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
RTE1000N34SW ROTARY DIP GRAY CODE 0.1A 30V |
0 |
|
规格书 |
RTE | Bulk | Active | Gray Code | 10 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
RTE1002R14SWITCH ROTARY DIP BCD 0.1A 30V |
0 |
|
规格书 |
RTE | Bulk | Active | BCD | 10 | 100mA | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | - | Through Hole, Reverse | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
1825286-7SW ROCKER DIP SPST 0.025A 24V |
0 |
|
- |
GDR | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.270" (6.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
SD05H0SBRSWITCH SLIDE DIP SPST 0.1A 25V |
0 |
|
规格书 |
SD | Tape & Reel (TR) | Active | SPST | 5 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
KAN1110RR-ONSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
- |
KAN | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.064" (1.63mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
|
|
JS0204AP4-RSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
JS | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
|
3-5435802-8SWITCH PIANO DIP SPST |
0 |
|
规格书 |
7000 | Tube | Active | SPST | 8 | - | - | Piano | Flush, Recessed | - | - | - | Through Hole | - | - | Yes | - | - |
|
3-435640-9SWITCH ROCKER DIP SPST 0.06A 5V |
0 |
|
规格书 |
7100 | Bulk | Active | SPST | 8 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -55°C ~ 105°C |
|
|
IKD0303101DIP SWITCH IKD 24VDC |
0 |
|
规格书 |
IKD | Bulk | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.157" (4.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|

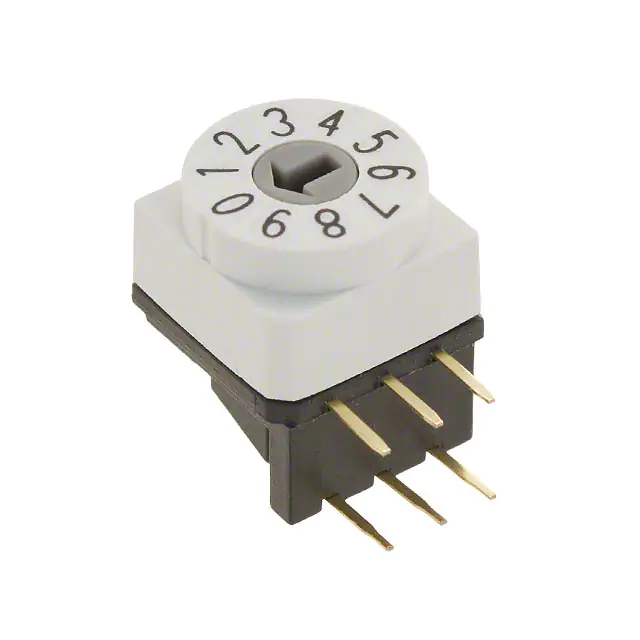

RDTAR10R1TSWITCH ROTARY DIP BCD 0.15A 42V |
0 |
|
规格书 |
RDT | Tube | Active | BCD | 10 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
|
RDTCR16R1TSWITCH ROTARY DIP HEX 0.15A 42V |
0 |
|
规格书 |
RDT | Tube | Active | Hexadecimal | 16 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
|
RDTCR16R2TSWITCH ROTARY DIP HEX 0.15A 42V |
0 |
|
规格书 |
RDT | Tube | Active | Hexadecimal | 16 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
