DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NDI10SSWITCH SLIDE DIP SPST 0.025A 24V APEM Inc. |
0 |
|
规格书 |
NDI | Bulk | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.197" (5.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
NDA-12-VSWITCH SLIDE DIP SPST 0.025A 24V APEM Inc. |
0 |
|
规格书 |
NDA | Bulk | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

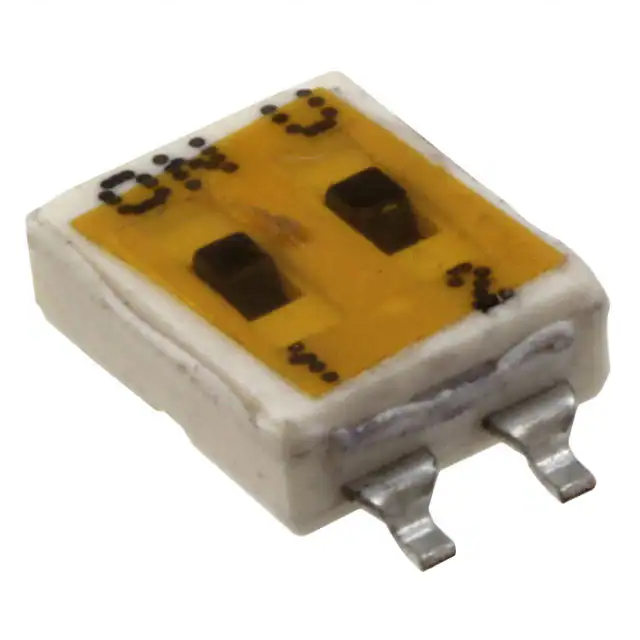

IKN0204000SWITCH SLIDE DIP SPST 0.1A 24V APEM Inc. |
716 |
|
规格书 |
IKN | Tape & Reel (TR) | Obsolete | SPST | 2 | 100mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.112" (2.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 100°C |
|
|
DHS10CSWITCH SLIDE DIP SPST 0.1A 6V APEM Inc. |
388 |
|
规格书 |
DHS | Bulk | Active | SPST | 10 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.087" (2.20mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 80°C |
|

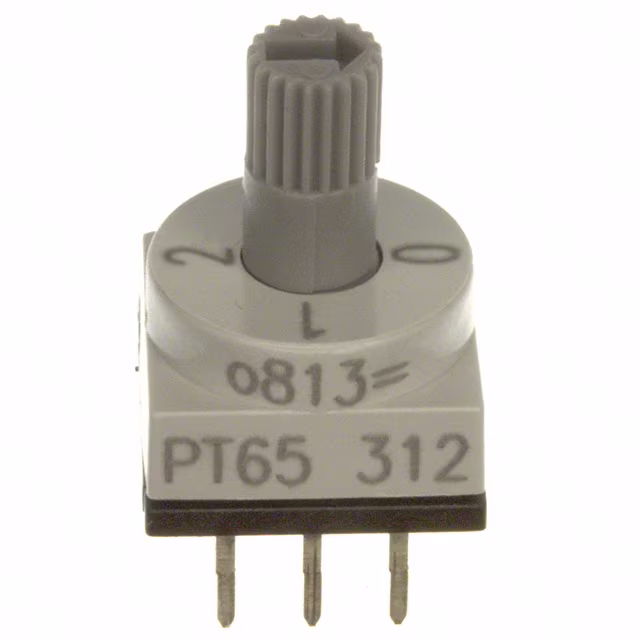

PT65312SWITCH ROTARY DIP BCD 0.15A 24V APEM Inc. |
0 |
|
规格书 |
PT65 | Bulk | Active | BCD | 4 | 150mA | 24VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|

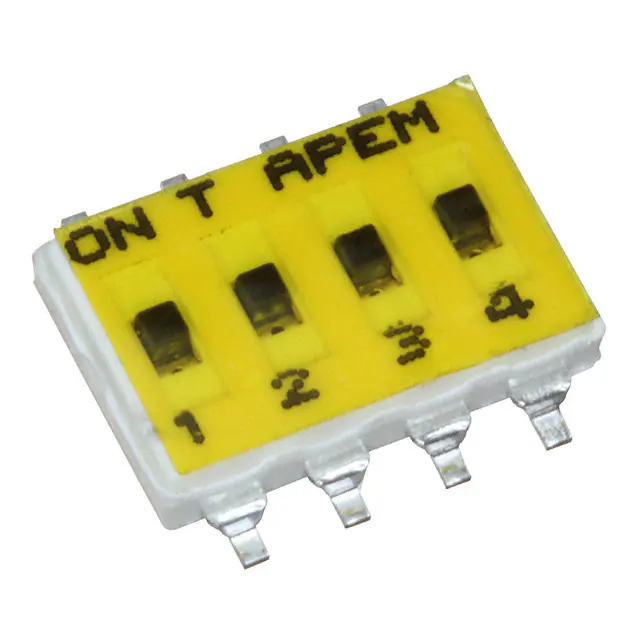

IKN0403000SWITCH SLIDE DIP SPST 0.1A 24V APEM Inc. |
11,543 |
|
规格书 |
IKN | Tube | Obsolete | SPST | 4 | 100mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.112" (2.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 100°C |
|

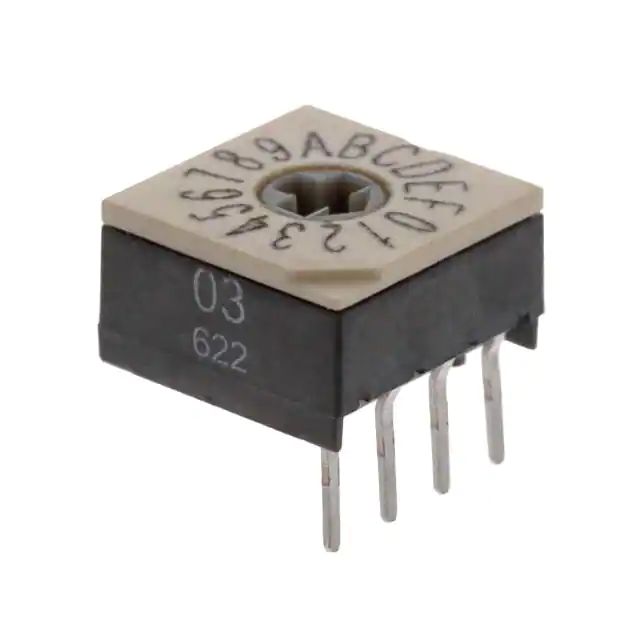

P60A703SWITCH ROTARY DIP HEX 0.15A 24V APEM Inc. |
50 |
|
规格书 |
P60A | Tube | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Stainless Steel | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|

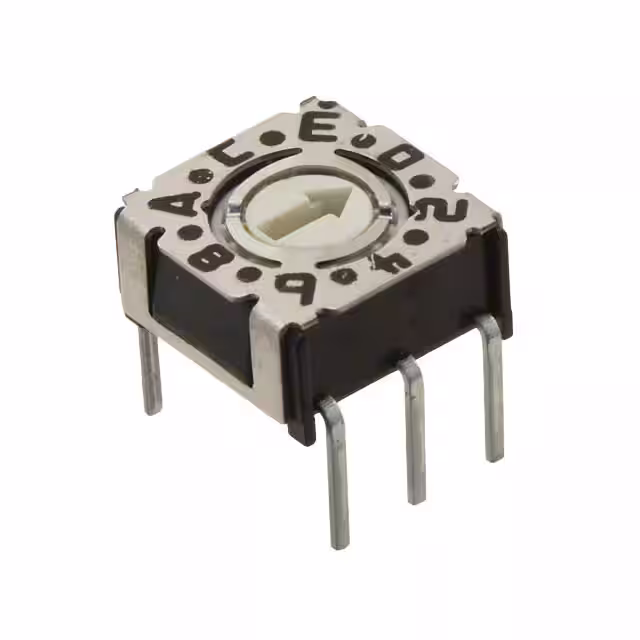

P36106SW ROTARY DIP HEX COMP 0.1A 24V APEM Inc. |
92 |
|
规格书 |
P36 | Tube | Active | Hexadecimal Complement | 16 | 100mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.143" (3.63mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -50°C ~ 125°C |
|

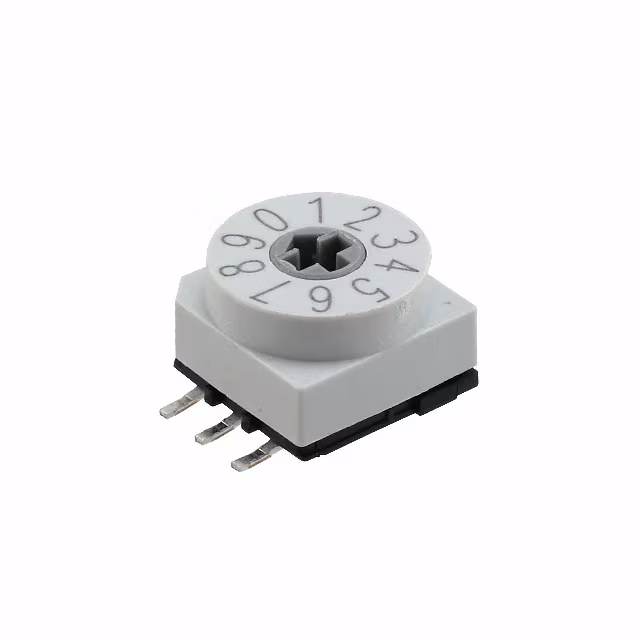

P65SMT701SWITCH ROTARY DIP BCD 0.2A 50V APEM Inc. |
50 |
|
规格书 |
P65 | Tube | Active | BCD | 10 | 200mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -60°C ~ 125°C |
|
PT65121L508SWITCH ROTARY DIP SP4T 0.15A 24V APEM Inc. |
76 |
|
规格书 |
PT65 | Tube | Active | SP4T | 4 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
