DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT65321L254SWITCH ROTARY DIP SP4T 0.15A 24V APEM Inc. |
0 |
|
规格书 |
PT65 | Tube | Active | SP4T | 4 | 150mA | 24VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65321L508SWITCH ROTARY DIP SP4T 0.15A 24V APEM Inc. |
0 |
|
规格书 |
PT65 | Tube | Active | SP4T | 4 | 150mA | 24VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
IKN0400000SWITCH SLIDE DIP SPST 0.1A 24V APEM Inc. |
0 |
|
规格书 |
IKN | Tube | Obsolete | SPST | 4 | 100mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.157" (4.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 100°C |
|
|
RM3H10RCAPTRDIP ROTARY SWITCH APEM Inc. |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

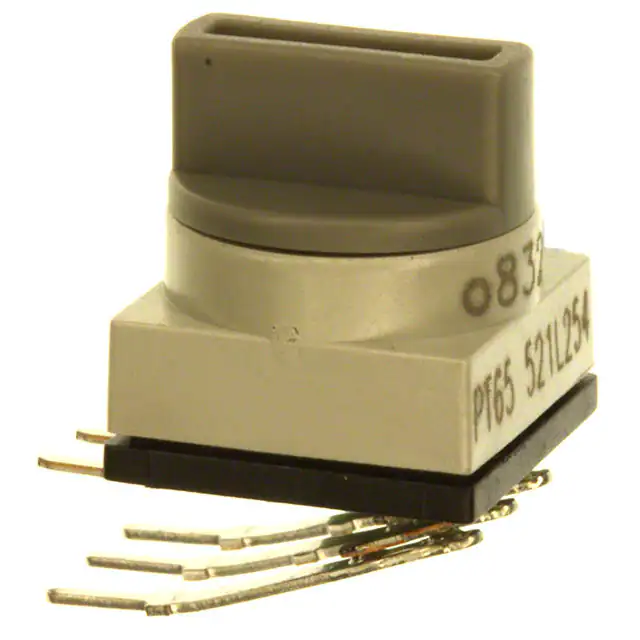

PT65521L254SWITCH ROTARY DIP SP4T 0.15A 24V APEM Inc. |
0 |
|
规格书 |
PT65 | Tube | Active | SP4T | 4 | 150mA | 24VDC | Rotary with Knob | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
PT65521L508SWITCH ROTARY DIP SP4T 0.15A 24V APEM Inc. |
0 |
|
规格书 |
PT65 | Tube | Active | SP4T | 4 | 150mA | 24VDC | Rotary with Knob | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|

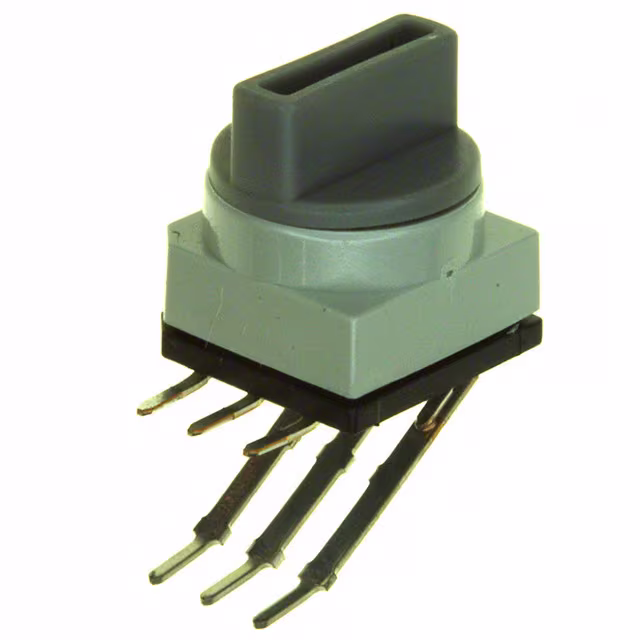

PT65526L508SW ROTARY DIP OCTAL 0.15A 24V APEM Inc. |
0 |
|
规格书 |
PT65 | Tube | Active | Octal | 8 | 150mA | 24VDC | Rotary with Knob | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65731L254DIP ROTARY SWITCH P60 10MM APEM Inc. |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PT65731L508DIP ROTARY SWITCH P60 10MM APEM Inc. |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IKN0603000SWITCH SLIDE DIP SPST 0.1A 24V APEM Inc. |
0 |
|
规格书 |
IKN | Tube | Obsolete | SPST | 6 | 100mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.112" (2.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 100°C |
