DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

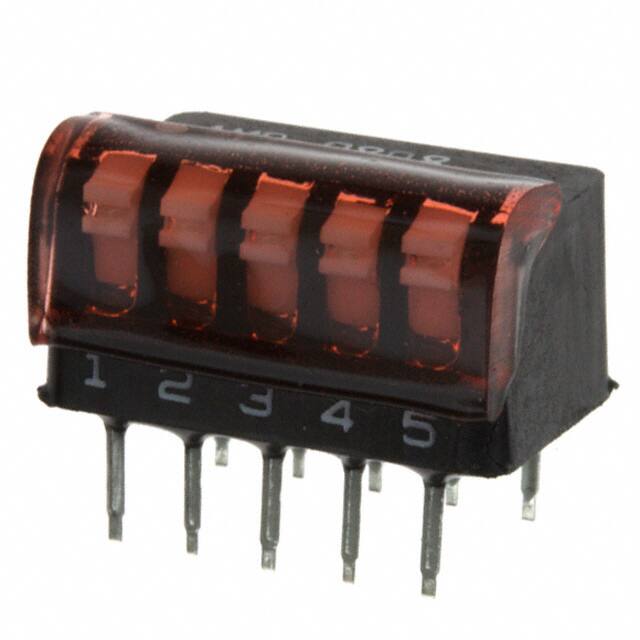

1-5435802-6SWITCH PIANO DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
0 |
|
规格书 |
7000 | Tube | Active | SPST | 5 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
GDP02SSWITCH PIANO DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
0 |
|
规格书 |
GDP | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.343" (8.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
GDS06SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
0 |
|
- |
GDS | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.114" (2.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
1825006-1SWITCH STANDARD DIP SPST TE Connectivity ALCOSWITCH Switches |
0 |
|
规格书 |
GDS | Bulk | Active | SPST | 2 | - | - | Standard | Flush, Recessed | - | - | - | Through Hole | - | - | Yes | - | - |
|
|
5-5435640-0SWITCH ROCKER DIP SPST TE Connectivity ALCOSWITCH Switches |
0 |
|
规格书 |
7100 | Bulk | Active | SPST | 8 | - | - | Rocker | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|
|
ADP06SSWITCH PIANO DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
0 |
|
规格书 |
ADP | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.303" (7.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
ADP07SWITCH PIANO DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
0 |
|
规格书 |
ADP | Tube | Obsolete | SPST | 7 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.294" (7.47mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
ADPA06SSWITCH PIANO DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
0 |
|
规格书 |
ADPA | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
SSH02SWITCH SLIDE DIP SPST 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
0 |
|
规格书 |
SSH | Tube | Obsolete | SPST | 2 | 0.4VA | 20VAC/DC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.169" (4.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|

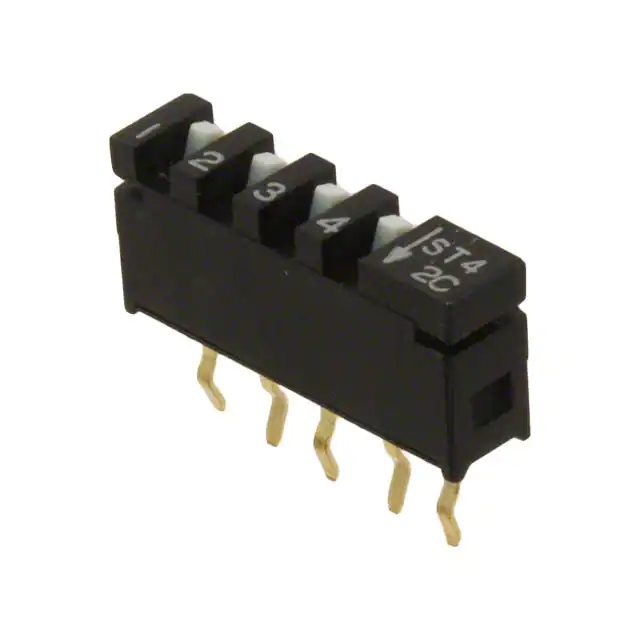

1977104-2SWITCH SLIDE DIP SPST 0.01A 5V TE Connectivity ALCOSWITCH Switches |
0 |
|
规格书 |
STV | Tube | Active | SPST | 4 | 10mA | 5VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.244" (6.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
