上传BOM
DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
209-12MSTSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
规格书 |
209 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
|
209-12MSTDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
规格书 |
209 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
|
209-12MSTFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
规格书 |
209 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
|
209-12MSTFDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
规格书 |
209 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
|
206-122RASWITCH SLIDE DIP SPDT 0.05A 24V |
0 |
|
规格书 |
206RA | Tube | Active | SPDT | 2 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
ADE03SSWITCH SLIDE DIP SPST 0.1A 24V |
0 |
|
规格书 |
ADE | Tube | Obsolete | SPST | 3 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.219" (5.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
ADF03SSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
ADF | Tube | Obsolete | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
209-12LPSTFDSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
规格书 |
209 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
|
206-121RASTSWITCH SLIDE DIP SPDT 0.05A 24V |
0 |
|
规格书 |
206RA | Tube | Active | SPDT | 1 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
206-9ESSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
规格书 |
206 | Tube | Active | SPST | 9 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.434" (11.02mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
DMR01SWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
DM | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
204-10SSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
规格书 |
204 | Tube | Active | SPST | 10 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.01mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
DS02-254-1L-07BESWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
规格书 |
DS02-254 | Tube | Obsolete | SPST | 7 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
218-6LPSTJRSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
218 | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
218-6LPSTJRFSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
218 | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

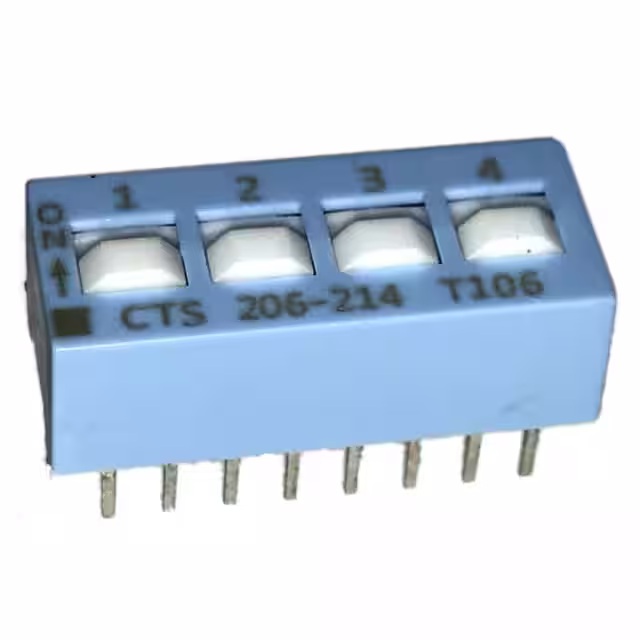

206-214SSWITCH SLIDE DIP DPST 0.05A 24V |
0 |
|
规格书 |
206 | Tube | Active | DPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
NHDS04TTRSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
NHDS | Tape & Reel (TR) | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.062" (1.57mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
|
ADE06SASWITCH SLIDE DIP SPST 0.1A 24V |
0 |
|
规格书 |
ADE | Tube | Obsolete | SPST | 6 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.246" (6.25mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
206-123SSWITCH SLIDE DIP SPDT 0.05A 24V |
0 |
|
规格书 |
206 | Tube | Active | SPDT | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
204-121SWITCH SLIDE DIP SPDT 0.05A 24V |
0 |
|
规格书 |
204 | Tube | Active | SPDT | 1 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
