DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
195-7MSTSWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
规格书 |
195 | Tube | Active | SPST | 7 | 50mA | 24VDC | Piano | Raised | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
219-7LPSTJRSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
规格书 |
219 | Tape & Reel (TR) | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
219-7LPSTJRFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
规格书 |
219 | Tape & Reel (TR) | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
219-7MSTJRSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
规格书 |
219 | Tape & Reel (TR) | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
219-7MSTJRFSWITCH SLIDE DIP SPST 0.1A 20V |
0 |
|
规格书 |
219 | Tape & Reel (TR) | Active | SPST | 7 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
KAR04LGGRSWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
规格书 |
KAR | Tape & Reel (TR) | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.287" (7.30mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
|
|
206-4RASSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
规格书 |
206RA | Tube | Active | SPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
DS02C-254-2L-07BESWITCH PIANO DIP SPST 0.025A 24V |
0 |
|
规格书 |
DS02-254 | Tube | Obsolete | SPST | 7 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
208-12LPSTSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
规格书 |
208 | Tube | Active | SPST | 12 | 50mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Tin | 0.299" (7.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
208-12STSWITCH SLIDE DIP SPST 0.05A 24V |
0 |
|
规格书 |
208 | Tube | Active | SPST | 12 | 50mA | 24VDC | Slide (Standard) | Raised | - | Tin | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
195-10MSSWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
规格书 |
195 | Tube | Active | SPST | 10 | 50mA | 24VDC | Piano | Raised | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
195-10MSNSWITCH PIANO DIP SPST 0.05A 24V |
0 |
|
规格书 |
195 | Tube | Active | SPST | 10 | 50mA | 24VDC | Piano | Raised | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
KAE02SGGTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
KAE | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|

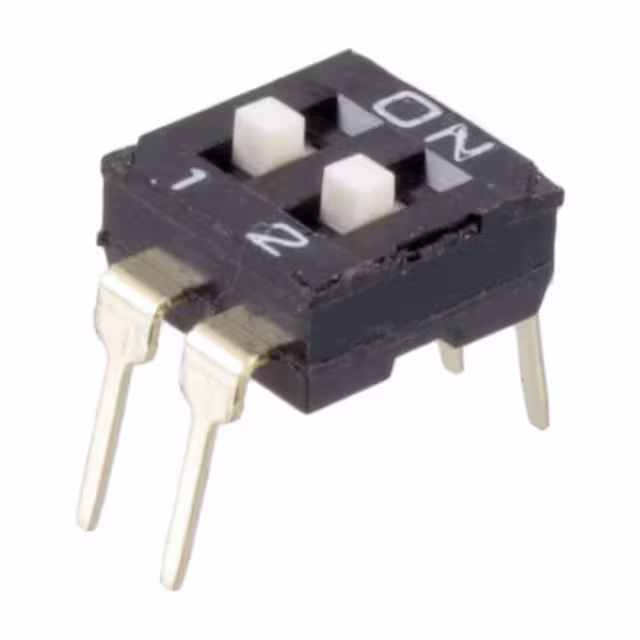

KAE02LAGTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
KAE | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Copper | Gold | 0.169" (4.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
KAE02LHGTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
KAE | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Copper | Gold | 0.169" (4.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
KAE01SGGRSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
KAE | Tape & Reel (TR) | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 0.123" (3.12mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
KAE02LGGTSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
KAE | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
1-1825058-6SWITCH STANDARD DIP SPST |
0 |
|
规格书 |
ADE | Tube | Active | SPST | 7 | - | - | Standard | Raised | - | - | - | Surface Mount | - | - | Yes | - | - |
|
218-4LPSJRSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
218 | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
218-4LPSJRFSWITCH SLIDE DIP SPST 0.025A 24V |
0 |
|
规格书 |
218 | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
