DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

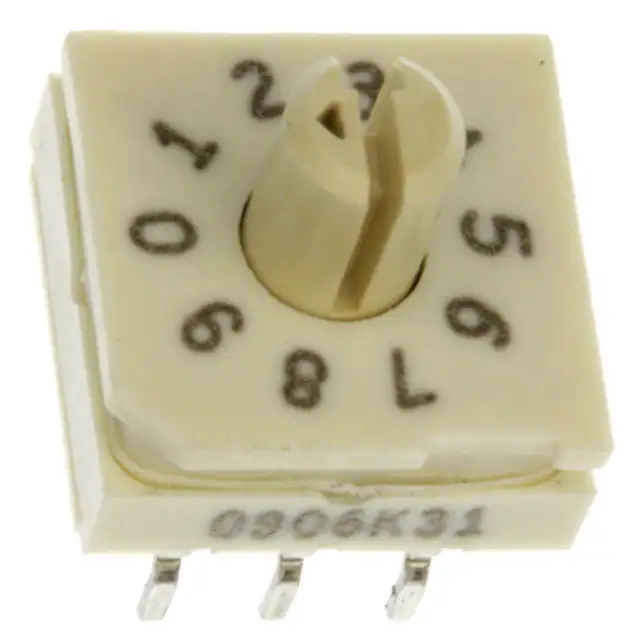

94HCB10TSWITCH ROTARY DIP BCD 0.1A 50V Grayhill Inc. |
949 |
|
规格书 |
94H | Tube | Active | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.395" (10.02mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
94HAB08RATSWITCH ROTARY DIP OCTAL 0.1A 50V Grayhill Inc. |
4,159 |
|
规格书 |
94H | Tube | Active | Octal | 8 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
94HBB10RATSWITCH ROTARY DIP BCD 0.1A 50V Grayhill Inc. |
2,570 |
|
规格书 |
94H | Tube | Active | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
94HAB10RATSWITCH ROTARY DIP BCD 0.1A 50V Grayhill Inc. |
1,034 |
|
规格书 |
94H | Tube | Active | BCD | 10 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|

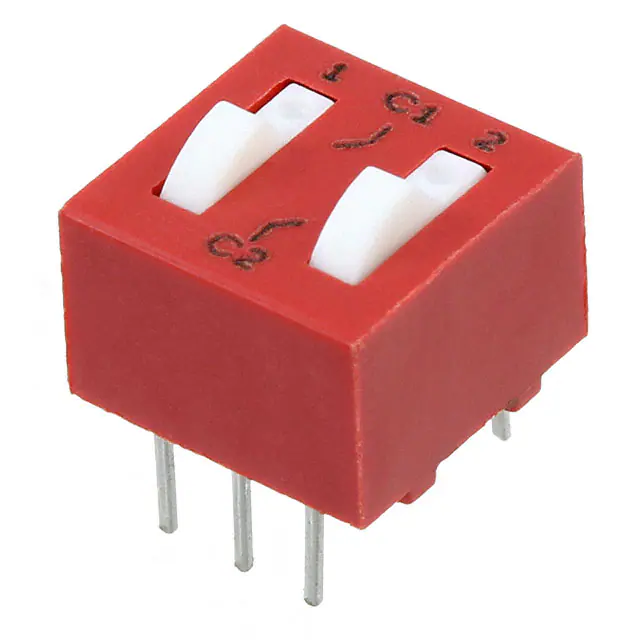

76SC02TSWITCH ROCKER DIP SPDT 0.15A 30V Grayhill Inc. |
721 |
|
规格书 |
76 | Tube | Active | SPDT | 2 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

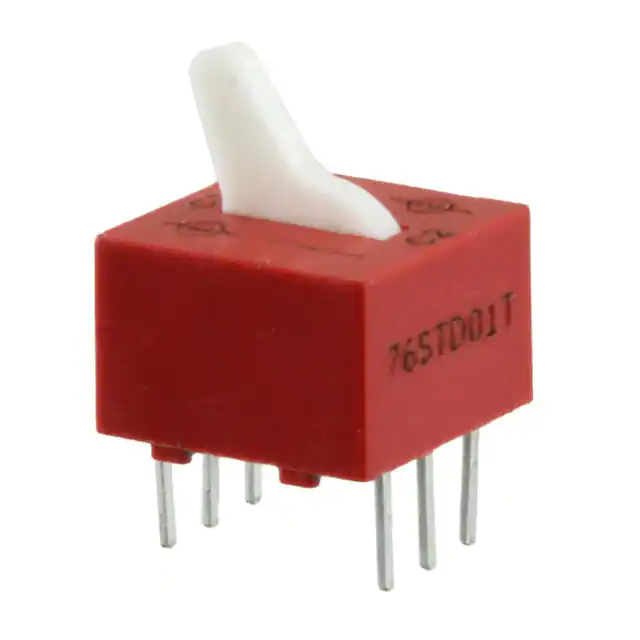

76STD01TSWITCH TOGGLE DIP DPDT 0.15A 30V Grayhill Inc. |
1,701 |
|
规格书 |
76 | Tube | Active | DPDT | 1 | 150mA | 30VDC | Toggle | Raised | Copper Alloy | Gold | 0.467" (11.86mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

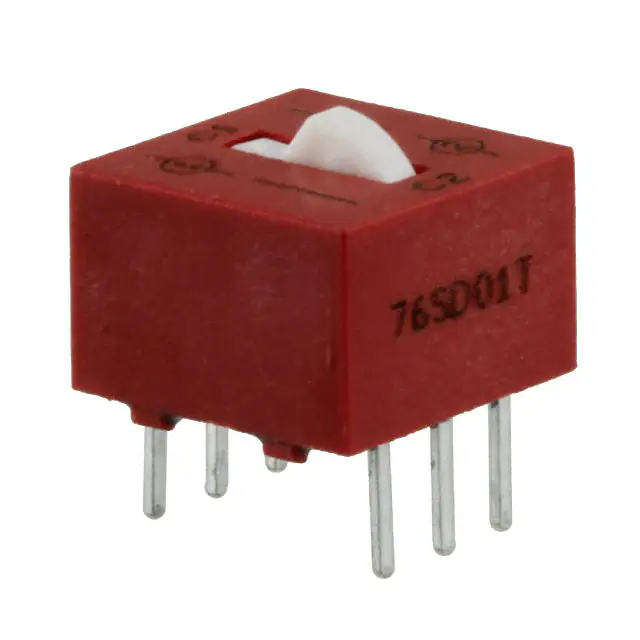

76SD01TSWITCH ROCKER DIP DPDT 0.15A 30V Grayhill Inc. |
132 |
|
规格书 |
76 | Tube | Active | DPDT | 1 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
78B08SRATSWITCH SLIDE DIP SPST 0.15A 30V Grayhill Inc. |
1,449 |
|
规格书 |
78 | Tube | Active | SPST | 8 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
78J05TSWITCH SLIDE DIP SPDT 0.15A 30V Grayhill Inc. |
144 |
|
规格书 |
78 | Tube | Active | SPDT | 5 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
79A10TSWITCH SLIDE DIP 10PST 0.125A 6V Grayhill Inc. |
856 |
|
规格书 |
79A | Tube | Active | 10PST | 10 | 125mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.250" (6.35mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
