直流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电压 - 输入（最小） | 电压 - 输入（最大） | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 安装类型 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD-350C-5DC/DC CONVERTER 5V 300W |
10 |
|
规格书 |
SD-350 (350W) | Box | Active | Enclosed | 36V | 72V | 1 | 5V | - | - | - | 60A | 300W | 1.5 kV | ITE (Commercial) | 76% | -20°C ~ 60°C (With Derating) | Chassis Mount | 8.46" L x 4.53" W x 1.97" H (215.0mm x 115.0mm x 50.0mm) | CE | - |
|
|
SD-350C-48DC/DC CONVERTER 48V 350W |
3 |
|
规格书 |
SD-350 (350W) | Box | Active | Enclosed | 36V | 72V | 1 | 48V | - | - | - | 7.3A | 350W | 1.5 kV | ITE (Commercial) | 82% | -20°C ~ 60°C (With Derating) | Chassis Mount | 8.46" L x 4.53" W x 1.97" H (215.0mm x 115.0mm x 50.0mm) | CE | - |
|
TEQ 20-4815WIRDC/DC CONVERTER 24V 20W |
5 |
|
规格书 |
TEQ 20WIR (20W) | Box | Active | Enclosed | 18V | 75V | 1 | 24V | - | - | - | 833mA | 20W | 2.25 kV | ITE (Commercial), Railway | 87% | -40°C ~ 93°C (With Derating) | Chassis Mount | 4.06" L x 2.25" W x 1.03" H (103.1mm x 57.2mm x 26.2mm) | - | - |
|

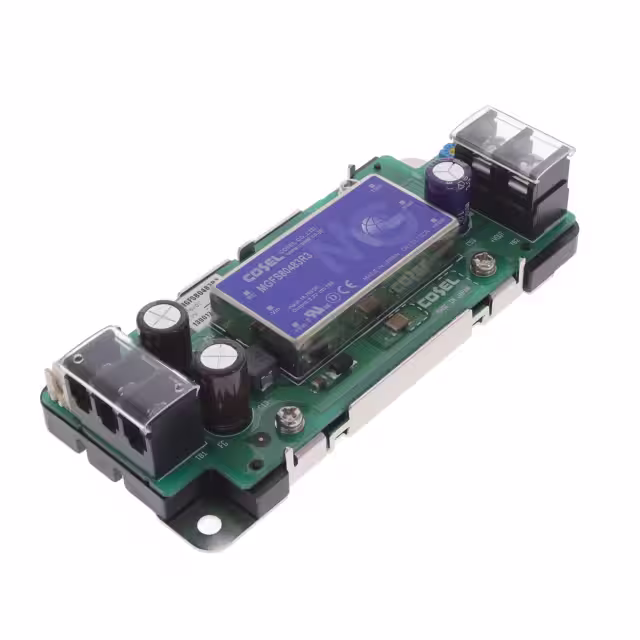

STMGFS80483R3DC/DC CONVERTER 3.3V 59W |
5 |
|
规格书 |
STMG | Bulk | Active | Enclosed | 18V | 76V | 1 | 3.3V | - | - | - | 18A | 59W | 1.5 kV | ITE (Commercial) | 90% | -20°C ~ 70°C (With Derating) | Chassis Mount | 4.61" L x 2.05" W x 1.14" H (117.1mm x 52.1mm x 29.0mm) | CE | 62368-1 |
|
RSD-300D-48DC/DC CONVERTER 48V 302W |
3 |
|
规格书 |
RSD-300 (300W) | Box | Active | Enclosed | 67.2V | 143V | 1 | 48V | - | - | - | 6.3A | 302W | 4 kV | ITE (Commercial), Railway | 91.5% | -40°C ~ 70°C (With Derating) | Chassis Mount | 8.50" L x 3.80" W x 1.57" H (216.0mm x 96.5mm x 40.0mm) | CE | - |
|
TEQ 20-2422WIRDC/DC CONVERTER +/-12V 20W |
4 |
|
规格书 |
TEQ 20WIR (20W) | Box | Active | Enclosed | 9V | 36V | 2 | 12V | -12V | - | - | 833mA, 833mA | 20W | 2.25 kV | ITE (Commercial), Railway | 87% | -40°C ~ 93°C (With Derating) | Chassis Mount | 4.06" L x 2.25" W x 1.03" H (103.1mm x 57.2mm x 26.2mm) | CB, CE, cURus | - |
|
TEQ 20-4811WIRDC/DC CONVERTER 5V 20W |
2 |
|
规格书 |
TEQ 20WIR (20W) | Box | Active | Enclosed | 18V | 75V | 1 | 5V | - | - | - | 4A | 20W | 2.25 kV | ITE (Commercial), Railway | 87% | -40°C ~ 93°C (With Derating) | Chassis Mount | 4.06" L x 2.25" W x 1.03" H (103.1mm x 57.2mm x 26.2mm) | - | - |
|
CQB75-300S15-CMFCDC/DC CONVERTER 15V 75W |
25 |
|
规格书 |
CQB75-300S-CMFC(D) (75W) | Box | Active | Open Frame | 180V | 450V | 1 | 15V | - | - | - | 5A | 75W | 3 kV | ITE (Commercial) | 88% | -40°C ~ 105°C (With Derating) | Chassis Mount | 4.60" L x 2.40" W x 1.24" H (116.8mm x 61.0mm x 31.4mm) | CE | 62368-1 |
|
|
CQB75-300S24N-CMFCDC/DC CONVERTER 24V 75W |
25 |
|
规格书 |
CQB75-300S-CMFC(D) (75W) | Box | Active | Open Frame | 180V | 450V | 1 | 24V | - | - | - | 3.12A | 75W | 3 kV | ITE (Commercial) | 90% | -40°C ~ 105°C (With Derating) | Chassis Mount | 4.60" L x 2.40" W x 1.24" H (116.8mm x 61.0mm x 31.4mm) | CE | 62368-1 |
|
|
CQB75-300S15N-CMFCDC/DC CONVERTER 15V 75W |
25 |
|
规格书 |
CQB75-300S-CMFC(D) (75W) | Box | Active | Open Frame | 180V | 450V | 1 | 15V | - | - | - | 5A | 75W | 3 kV | ITE (Commercial) | 88% | -40°C ~ 105°C (With Derating) | Chassis Mount | 4.60" L x 2.40" W x 1.24" H (116.8mm x 61.0mm x 31.4mm) | CE | 62368-1 |
|
|
CQB75-300S05-CMFCDC/DC CONVERTER 5V 75W |
25 |
|
规格书 |
CQB75-300S-CMFC(D) (75W) | Box | Active | Open Frame | 180V | 450V | 1 | 5V | - | - | - | 15A | 75W | 3 kV | ITE (Commercial) | 82% | -40°C ~ 105°C (With Derating) | Chassis Mount | 4.60" L x 2.40" W x 1.24" H (116.8mm x 61.0mm x 31.4mm) | CE | 62368-1 |
|
|
CQB75-300S24-CMFCDC/DC CONVERTER 24V 75W |
25 |
|
规格书 |
CQB75-300S-CMFC(D) (75W) | Box | Active | Open Frame | 180V | 450V | 1 | 24V | - | - | - | 3.12A | 75W | 3 kV | ITE (Commercial) | 90% | -40°C ~ 105°C (With Derating) | Chassis Mount | 4.60" L x 2.40" W x 1.24" H (116.8mm x 61.0mm x 31.4mm) | CE | 62368-1 |
|
|
CQB75-300S48-CMFCDC/DC CONVERTER 48V 75W |
25 |
|
规格书 |
CQB75-300S-CMFC(D) (75W) | Box | Active | Open Frame | 180V | 450V | 1 | 48V | - | - | - | 1.56A | 75W | 3 kV | ITE (Commercial) | 89% | -40°C ~ 105°C (With Derating) | Chassis Mount | 4.60" L x 2.40" W x 1.24" H (116.8mm x 61.0mm x 31.4mm) | CE | 62368-1 |
|
|
CQB75-300S05N-CMFCDC/DC CONVERTER 5V 75W |
13 |
|
规格书 |
CQB75-300S-CMFC(D) (75W) | Box | Active | Open Frame | 180V | 450V | 1 | 5V | - | - | - | 15A | 75W | 3 kV | ITE (Commercial) | 82% | -40°C ~ 105°C (With Derating) | Chassis Mount | 4.60" L x 2.40" W x 1.24" H (116.8mm x 61.0mm x 31.4mm) | CE | 62368-1 |
|
|
CQB75-300S12N-CMFCDC/DC CONVERTER 12V 75W |
13 |
|
规格书 |
CQB75-300S-CMFC(D) (75W) | Box | Active | Open Frame | 180V | 450V | 1 | 12V | - | - | - | 6.25A | 75W | 3 kV | ITE (Commercial) | 88% | -40°C ~ 105°C (With Derating) | Chassis Mount | 4.60" L x 2.40" W x 1.24" H (116.8mm x 61.0mm x 31.4mm) | CE | 62368-1 |
|

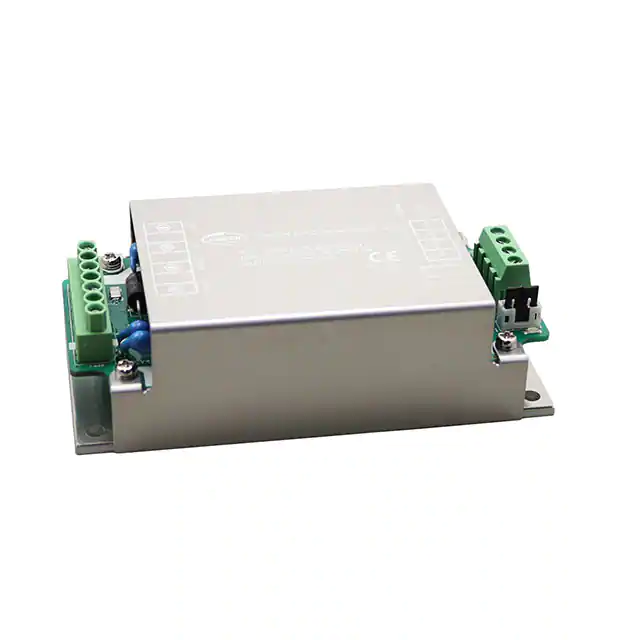

CQB75-300S05-CMFDDC/DC CONVERTER 5V 75W |
24 |
|
规格书 |
CQB75-300S-CMFC(D) (75W) | Box | Active | Enclosed | 180V | 450V | 1 | 5V | - | - | - | 15A | 75W | 3 kV | ITE (Commercial) | 82% | -40°C ~ 105°C (With Derating) | Chassis Mount | 4.60" L x 2.49" W x 1.35" H (116.8mm x 63.4mm x 34.2mm) | CE | 62368-1 |
|

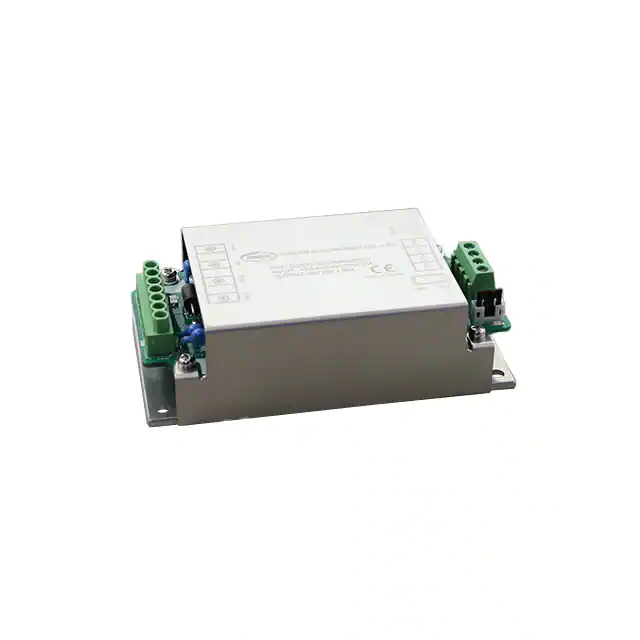

CQB75-300S48N-CMFDDC/DC CONVERTER 48V 75W |
24 |
|
规格书 |
CQB75-300S-CMFC(D) (75W) | Box | Active | Enclosed | 180V | 450V | 1 | 48V | - | - | - | 1.56A | 75W | 3 kV | ITE (Commercial) | 89% | -40°C ~ 105°C (With Derating) | Chassis Mount | 4.60" L x 2.49" W x 1.35" H (116.8mm x 63.4mm x 34.2mm) | CE | 62368-1 |
|

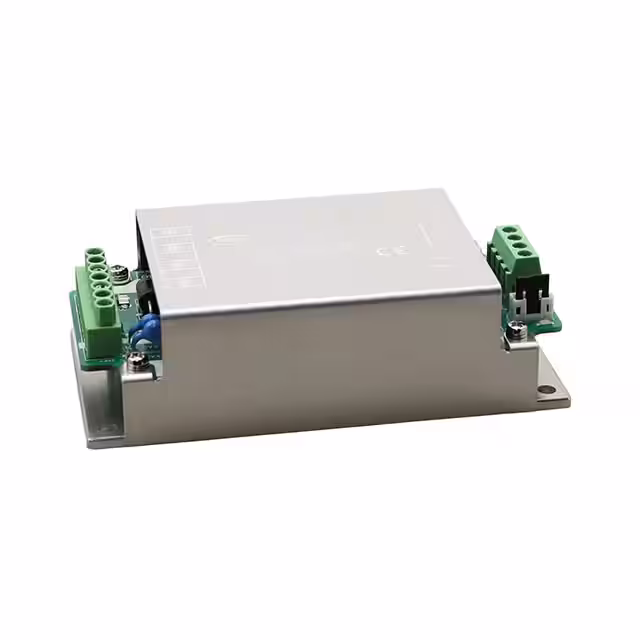

CQB75-300S15-CMFDDC/DC CONVERTER 15V 75W |
23 |
|
规格书 |
CQB75-300S-CMFC(D) (75W) | Box | Active | Enclosed | 180V | 450V | 1 | 15V | - | - | - | 5A | 75W | 3 kV | ITE (Commercial) | 88% | -40°C ~ 105°C (With Derating) | Chassis Mount | 4.60" L x 2.49" W x 1.35" H (116.8mm x 63.4mm x 34.2mm) | CE | 62368-1 |
|

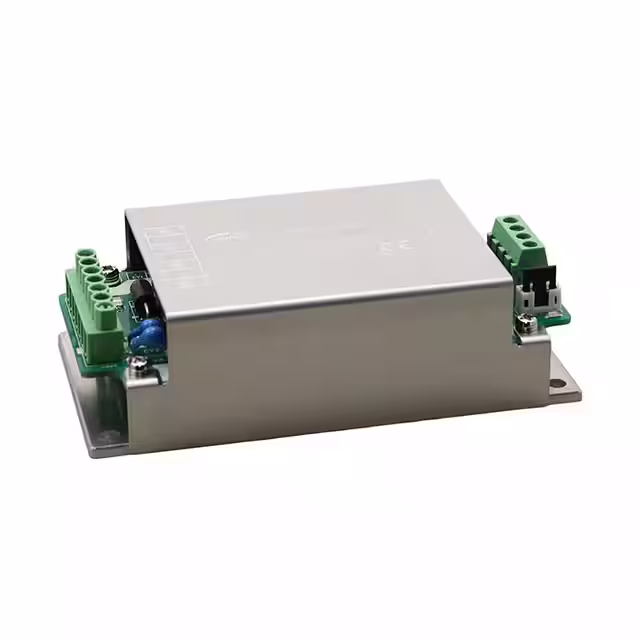

CQB75-300S15N-CMFDDC/DC CONVERTER 15V 75W |
22 |
|
规格书 |
CQB75-300S-CMFC(D) (75W) | Box | Active | Enclosed | 180V | 450V | 1 | 15V | - | - | - | 5A | 75W | 3 kV | ITE (Commercial) | 88% | -40°C ~ 105°C (With Derating) | Chassis Mount | 4.60" L x 2.49" W x 1.35" H (116.8mm x 63.4mm x 34.2mm) | CE | 62368-1 |
|
12RCM60-24DQFKDC-DC, 8-36V INPUT, 24V/2.5A OUT |
4 |
|
规格书 |
RCM60 (60W) | Box | Active | Enclosed, Conformal Coated | 8V | 36V | 1 | 24V | - | - | - | 2.5A | 60W | 4.2 kV | ITE (Commercial) | 88% | -40°C ~ 70°C (With Derating) | Chassis Mount | 6.77" L x 1.97" W x 1.26" H (172.0mm x 50.0mm x 32.0mm) | cCSAus, CE | 62368-1 |
