直流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电压 - 输入（最小） | 电压 - 输入（最大） | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 安装类型 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TEP 160-4818-CMFDC/DC CONVERTER 48V 192W |
0 |
|
规格书 |
TEP 160 (150 ~ 196W) | Box | Active | Enclosed | 33V | 75V | 1 | 48V | - | - | - | 4A | 192W | 2.25 kV | ITE (Commercial) | 91% | -40°C ~ 75°C (With Derating) | Chassis Mount | 3.35" L x 2.40" W x 1.27" H (85.1mm x 61.0mm x 32.3mm) | cURus | - |
|
VHK150W-Q24-S28DC/DC CONVERTER 28V 151W |
0 |
|
规格书 |
VHK150W (150W) | Box | Active | Enclosed | 9V | 36V | 1 | 28V | - | - | - | 5.4A | 151W | 1.5 kV | - | 87% | -40°C ~ 85°C | Chassis Mount | 4.23" L x 4.01" W x 1.50" H (107.5mm x 101.8mm x 38.0mm) | CE | - |
|
|
VHK150W-Q24-S5DC/DC CONVERTER 5V 125W |
0 |
|
规格书 |
VHK150W (150W) | Box | Active | Enclosed | 9V | 36V | 1 | 5V | - | - | - | 25A | 125W | 1.5 kV | - | 87% | -40°C ~ 85°C | Chassis Mount | 4.23" L x 4.01" W x 1.50" H (107.5mm x 101.8mm x 38.0mm) | CE | - |
|
VHK150W-Q48-S15DC/DC CONVERTER 15V 150W |
0 |
|
规格书 |
VHK150W (150W) | Box | Active | Enclosed | 18V | 75V | 1 | 15V | - | - | - | 10A | 150W | - | - | 88% | -40°C ~ 100°C | Chassis Mount | 4.23" L x 4.00" W x 1.50" H (107.5mm x 102.0mm x 38.0mm) | - | - |
|

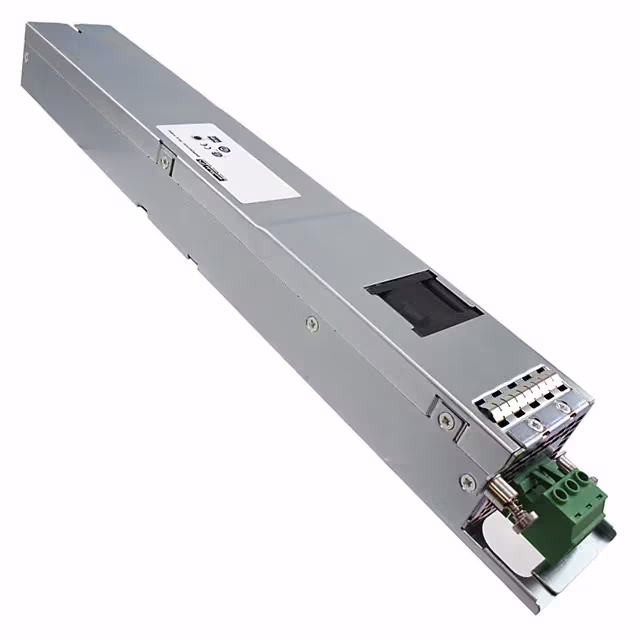

D1U2-D-400-12-HA4CDC/DC CONVERTER 12V 400W |
0 |
|
规格书 |
D1U2-D-400 (400W) | Box | Obsolete | Front End | -40V | -72V | 1 | 12V | - | - | - | 33.3A | 400W | - | ITE (Commercial) | 83% | 0°C ~ 50°C | Rack Mount | 13.67" L x 2.15" W x 1.54" H (347.2mm x 54.5mm x 39.0mm) | CB, CE, CSA, TUV, UL | - |
|
|
VHK150W-Q24-S15DC/DC CONVERTER 15V 150W |
0 |
|
规格书 |
VHK150W (150W) | Box | Active | Enclosed | 9V | 36V | 1 | 15V | - | - | - | 10A | 150W | - | - | 86% | -40°C ~ 100°C | Chassis Mount | 4.23" L x 4.00" W x 1.50" H (107.5mm x 102.0mm x 38.0mm) | - | - |
|
|
VHK150W-Q48-S5DC/DC CONVERTER 5V 125W |
0 |
|
规格书 |
VHK150W (150W) | Box | Active | Enclosed | 18V | 75V | 1 | 5V | - | - | - | 25A | 125W | 1.5 kV | - | 90% | -40°C ~ 85°C | Chassis Mount | 4.23" L x 4.01" W x 1.50" H (107.5mm x 101.8mm x 38.0mm) | CE | - |
|
VHK150W-Q48-S48DC/DC CONVERTER 48V 150W |
0 |
|
规格书 |
VHK150W (150W) | Box | Active | Enclosed | 18V | 75V | 1 | 48V | - | - | - | 3.12A | 150W | - | - | 87% | -40°C ~ 100°C | Chassis Mount | 4.23" L x 4.00" W x 1.50" H (107.5mm x 102.0mm x 38.0mm) | - | - |
|
DS1100SDC-3DC/DC CONVERTER 12V 1100W |
0 |
|
规格书 |
DS1100SDC (1100W) | Bulk | Active | Front End | -36V | -72V | 1 | 12V | - | - | - | 91.76A | 1100W | - | ITE (Commercial) | 90% | 0°C ~ 40°C | Rack Mount | 7.74" L x 3.40" W x 1.52" H (196.5mm x 86.3mm x 38.5mm) | CB, CCC, CE, cUL, DEMKO | - |
|
|
DS1100SDC-3-001DC/DC CONVERTER 12V 1100W |
0 |
|
规格书 |
DS1100SDC (1100W) | Bulk | Active | Front End | -36V | -72V | 1 | 12V | - | - | - | 91.76A | 1100W | - | ITE (Commercial) | 90% | 0°C ~ 50°C | Rack Mount | 7.74" L x 3.40" W x 1.52" H (196.5mm x 86.3mm x 38.5mm) | CB, CCC, CE, cUL, DEMKO | - |
|
|
TEP 160-2410-CMFDC/DC CONVERTER 3.3V 132W |
0 |
|
规格书 |
TEP 160 (150 ~ 196W) | Box | Active | Enclosed | 16.5V | 36V | 1 | 3.3V | - | - | - | 40A | 132W | 2.25 kV | ITE (Commercial) | 88% | -40°C ~ 75°C (With Derating) | Chassis Mount | 3.35" L x 2.40" W x 1.27" H (85.1mm x 61.0mm x 32.3mm) | cURus | - |
|
|
TEP 160-2411-CMFDC/DC CONVERTER 5V 150W |
0 |
|
规格书 |
TEP 160 (150 ~ 196W) | Box | Active | Enclosed | 16.5V | 36V | 1 | 5V | - | - | - | 30A | 150W | 2.25 kV | ITE (Commercial) | 90% | -40°C ~ 75°C (With Derating) | Chassis Mount | 3.35" L x 2.40" W x 1.27" H (85.1mm x 61.0mm x 32.3mm) | cURus | - |
|
|
TEP 160-4810-CMFDC/DC CONVERTER 3.3V 149W |
0 |
|
规格书 |
TEP 160 (150 ~ 196W) | Box | Active | Enclosed | 33V | 75V | 1 | 3.3V | - | - | - | 45A | 149W | 2.25 kV | ITE (Commercial) | 89% | -40°C ~ 75°C (With Derating) | Chassis Mount | 3.35" L x 2.40" W x 1.27" H (85.1mm x 61.0mm x 32.3mm) | cURus | - |
|
|
TEP 160-4811-CMFDC/DC CONVERTER 5V 170W |
0 |
|
规格书 |
TEP 160 (150 ~ 196W) | Box | Active | Enclosed | 33V | 75V | 1 | 5V | - | - | - | 34A | 170W | 2.25 kV | ITE (Commercial) | 91% | -40°C ~ 75°C (With Derating) | Chassis Mount | 3.35" L x 2.40" W x 1.27" H (85.1mm x 61.0mm x 32.3mm) | cURus | - |
|
|
PSR242-9RGDC/DC CONVERTER 24V 48W |
0 |
|
规格书 |
Melcher PSR | Bulk | Active | Enclosed, Conformal Coated | 29V | 80V | 1 | 24V | - | - | - | 2A | 48W | - | ITE (Commercial), Railway | 92% | -40°C ~ 71°C | Chassis Mount | 2.76" L x 1.98" W x 0.99" H (70.2mm x 50.2mm x 25.2mm) | cCSAus, CE | - |
|
TEQ 100-2416WIRDC/DC CONVERTER 28V 101W |
0 |
|
规格书 |
TEQ 100WIR (100W) | Box | Active | Enclosed | 10V | 36V | 1 | 28V | - | - | - | 3.6A | 101W | 2.25 kV | Industrial, ITE (Commercial), Railway | 90% | -40°C ~ 105°C | Chassis Mount | 4.06" L x 3.50" W x 3.45" H (103.1mm x 88.9mm x 87.6mm) | CB, cULus, cURus | - |
|
TEQ 100-2418WIRDC/DC CONVERTER 48V 101W |
0 |
|
规格书 |
TEQ 100WIR (100W) | Box | Active | Enclosed | 10V | 36V | 1 | 48V | - | - | - | 2.1A | 101W | 2.25 kV | Industrial, ITE (Commercial), Railway | 90% | -40°C ~ 105°C | Chassis Mount | 4.06" L x 3.50" W x 3.45" H (103.1mm x 88.9mm x 87.6mm) | CB, cULus, cURus | - |
|
TEQ 100-4812WIRDC/DC CONVERTER 12V 101W |
0 |
|
规格书 |
TEQ 100WIR (100W) | Box | Active | Enclosed | 19V | 75V | 1 | 12V | - | - | - | 8.4A | 101W | 2.25 kV | Industrial, ITE (Commercial), Railway | 90% | -40°C ~ 105°C | Chassis Mount | 4.06" L x 3.50" W x 3.45" H (103.1mm x 88.9mm x 87.6mm) | CB, cULus, cURus | - |
|

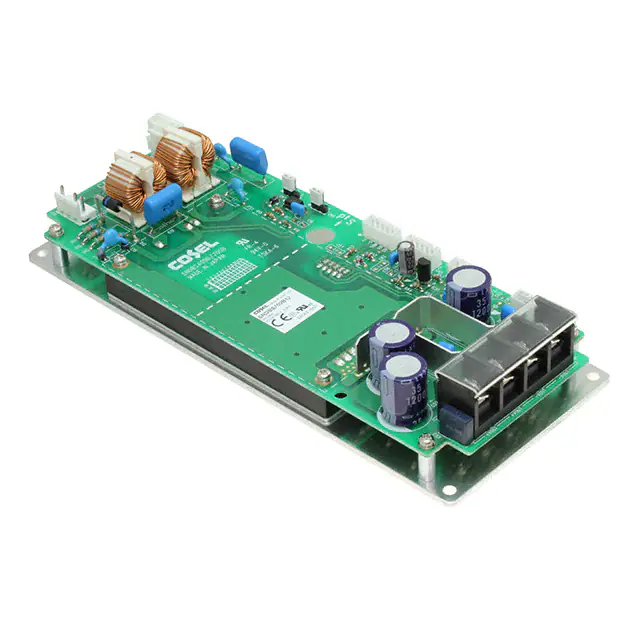

SNDBS700B12DC/DC CONVERTER 12V 696W |
0 |
|
规格书 |
SNDBS (700W) | Box | Active | Open Frame | 200V | 400V | 1 | 12V | - | - | - | 58A | 696W | - | ITE (Commercial) | 90% | -20°C ~ 95°C (With Derating) | Chassis Mount | 8.75" L x 3.51" W x 1.75" H (222.3mm x 89.2mm x 44.5mm) | CE, cURus | - |
|
|
SNDBS700B28DC/DC CONVERTER 28V 700W |
0 |
|
规格书 |
SNDBS (700W) | Box | Active | Open Frame | 200V | 400V | 1 | 28V | - | - | - | 25A | 700W | - | ITE (Commercial) | 90.5% | -20°C ~ 95°C (With Derating) | Chassis Mount | 8.75" L x 3.51" W x 1.75" H (222.3mm x 89.2mm x 44.5mm) | CE, cURus | - |
