电流传感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 用于测量 | 传感器类型 | 电流 - 传感 | 通道数 | 输出 | 灵敏度 | 频率 | 线性度 | 精度 | 电压 - 电源 | 响应时间 | 电流 - 电源（最大值） | 工作温度 | 等级 | 认证 | 极化 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATR1-420-24L-FTAC TRANSDUCER 50 A, 0-10 VDC |
25 |
|
规格书 |
ATR | Module | Box | Active | AC | Transformer w/Conditioning | 10A, 20A, 50A (Selectable) | 1 | Ratiometric, 4mA ~ 20mA | - | 10Hz ~ 400Hz | - | ±1% | 12V ~ 40V | 600ms | - | -20°C ~ 50°C | - | - | Unidirectional | Chassis Mount | - |
|

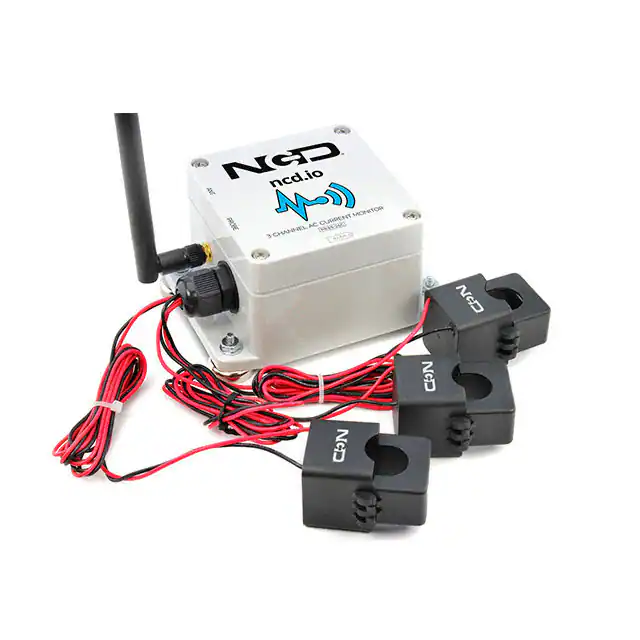

PR55-26C3-CHANNEL CURRENT MONITOR |
4 |
|
- |
PR55 | IoT Finished Device | Box | Active | AC | Current Sensor | 100A | 3 | Wireless | - | 50Hz ~ 100kHz | ±1% | ±2% | 2V ~ 3.8V | 100ms | - | - | - | - | - | Chassis Mount | - |
|
|
ATR1-420-24L-SPAC TRANSDUCER 50 A, 4-20 MA |
13 |
|
规格书 |
ATR | Module | Box | Active | AC | Transformer w/Conditioning | 10A, 20A, 50A (Selectable) | 1 | Ratiometric, 4mA ~ 20mA | - | 10Hz ~ 400Hz | - | ±1% | 12V ~ 40V | 600ms | - | -20°C ~ 50°C | - | - | Unidirectional | Chassis Mount | - |
|
|
ATR2-420-24L-SPAC TRANSDUCER 200 A, 4-20 MA |
7 |
|
规格书 |
ATR | Module | Box | Active | AC | Transformer w/Conditioning | 100A, 150A, 200A (Selectable) | 1 | Ratiometric, 4mA ~ 20mA | - | 10Hz ~ 400Hz | - | ±1% | 12V ~ 40V | 600ms | - | -20°C ~ 50°C | - | - | Unidirectional | Chassis Mount | - |
|
DS50.2T50A 7MHz current sensor for SiC |
20 |
|
规格书 |
- | 8-DIP Module | Case | Active | AC/DC | Current Sensor | 50A | 1 | Voltage | 42mV/A | DC ~ 7MHz | ±1% | - | 5V | 48ns | 20mA | -40°C ~ 125°C | - | - | Bidirectional | Through Hole | - |
|
CPC-1000-27-BP2DC-AC CURRENT PROBE, CLIP-ON, 1K |
25 |
|
规格书 |
CPC | Box | Box | Active | AC/DC | Open Loop | 1000A | 1 | Ratiometric, ±2V | - | DC ~ 75kHz | ±0.2% | 1% | 3.5V ~ 5.5V | 10µs | 85mA | -40°C ~ 100°C | - | - | Bidirectional | Free Hanging | - |
|
|
CPC-2000-27-BP2DC-AC CURRENT PROBE, CLIP-ON, 2K |
18 |
|
规格书 |
CPC | Box | Box | Active | AC/DC | Open Loop | 2000A | 1 | Ratiometric, ±2V | - | DC ~ 75kHz | ±0.2% | 1% | 3.5V ~ 5.5V | 10µs | 85mA | -40°C ~ 100°C | - | - | Bidirectional | Free Hanging | - |
|
|
CPC-500-27-BP2DC-AC CURRENT PROBE, CLIP-ON, 50 |
13 |
|
规格书 |
CPC | Box | Box | Active | AC/DC | Open Loop | 500A | 1 | Ratiometric, ±2V | - | DC ~ 75kHz | ±0.2% | 1% | 3.5V ~ 5.5V | 10µs | 85mA | -40°C ~ 100°C | - | - | Bidirectional | Free Hanging | - |
|
|
CPC-250-27-BP2DC-AC CURRENT PROBE, CLIP-ON, 25 |
10 |
|
规格书 |
CPC | Box | Box | Active | AC/DC | Open Loop | 250A | 1 | Ratiometric, ±2V | - | DC ~ 75kHz | ±0.2% | 1% | 3.5V ~ 5.5V | 10µs | 85mA | -40°C ~ 100°C | - | - | Bidirectional | Free Hanging | - |
|
RCS-1800-10003PH 18" COILS 1000A:333MV |
15 |
|
规格书 |
RCS | Module | Bag | Active | AC | AC Single Phase/Three Phase | 1000A | 3 | Ratiometric, Voltage | - | - | - | ±1% | 9V ~ 36VDC | - | - | -20°C ~ 105°C | - | - | - | Chassis Mount | - |
|
|
RCS-1800-20003PH 18" COILS 2000A:333MV |
12 |
|
规格书 |
RCS | Module | Bag | Active | AC | AC Single Phase/Three Phase | 2000A | 3 | Ratiometric, Voltage | - | - | - | ±1% | 9V ~ 36VDC | - | - | -20°C ~ 105°C | - | - | - | Chassis Mount | - |
|
|
RCS-1800-30003PH 18" COILS 3000A:333MV |
10 |
|
规格书 |
RCS | Module | Bag | Active | AC | AC Single Phase/Three Phase | 3000A | 3 | Ratiometric, Voltage | - | - | - | ±1% | 9V ~ 36VDC | - | - | -20°C ~ 105°C | - | - | - | Chassis Mount | - |
|
|
RCS-1800-40003PH 18" COILS 4000A:333MV |
10 |
|
规格书 |
RCS | Module | Bag | Active | AC | AC Single Phase/Three Phase | 4000A | 3 | Ratiometric, Voltage | - | - | - | ±1% | 9V ~ 36VDC | - | - | -20°C ~ 105°C | - | - | - | Chassis Mount | - |
|
|
RCS-1800-4003PH 18" COILS 400A:333MV |
6 |
|
规格书 |
RCS | Module | Bag | Active | AC | AC Single Phase/Three Phase | 400A | 3 | Ratiometric, Voltage | - | - | - | ±1% | 9V ~ 36VDC | - | - | -20°C ~ 105°C | - | - | - | Chassis Mount | - |
|
|
RCS-1800-50003PH 18" COILS 5000A:333MV |
4 |
|
规格书 |
RCS | Module | Bag | Active | AC | AC Single Phase/Three Phase | 5000A | 3 | Ratiometric, Voltage | - | - | - | ±1% | 9V ~ 36VDC | - | - | -20°C ~ 105°C | - | - | - | Chassis Mount | - |
|
S9XM300A1000VMPOWER METER / CT RS485 MODBUS |
9 |
|
规格书 |
- | Module, Single Pass Through | Bag | Active | AC/DC | Current Sensor | 300A | 1 | - | - | DC, 1Hz ~ 400Hz | - | ±0.5% | 9V ~ 30V | - | - | -15°C ~ 65°C | - | - | Bidirectional | DIN Rail, Panel | - |
|
CPCO-2000-77-BP10DC-AC CURRENT PROBE, CLAMP-ON, 2 |
19 |
|
规格书 |
CPCO | Box | Box | Active | AC/DC | Open Loop | 2000A | 1 | Ratiometric, ±10V | - | DC ~ 40kHz | ±0.5% | 1% | 11V ~ 31V | 10µs | 47mA | -40°C ~ 100°C | - | - | Bidirectional | Panel Mount | - |
|
|
CPCO-4000-77-BP5DC-AC CURRENT PROBE, CLAMP-ON, 4 |
17 |
|
规格书 |
CPCO | Box | Box | Active | AC/DC | Open Loop | 4000A | 1 | Ratiometric, ±5V | - | DC ~ 40kHz | ±0.5% | 1% | 11V ~ 31V | 10µs | 47mA | -40°C ~ 100°C | - | - | Bidirectional | Panel Mount | - |
|
|
CPCO-2000-77-MADC-AC CURRENT PROBE, CLAMP-ON, 2 |
10 |
|
规格书 |
CPCO | Box | Box | Active | AC/DC | Open Loop | 2000A | 1 | Ratiometric, 4mA ~ 20mA | - | DC ~ 40kHz | ±0.5% | 1% | 11V ~ 26V | 10µs | 47mA | -40°C ~ 100°C | - | - | Bidirectional | Panel Mount | - |
|
|
CPCO-1000-77-MADC-AC CURRENT PROBE, CLAMP-ON, 1 |
9 |
|
规格书 |
CPCO | Box | Box | Active | AC/DC | Open Loop | 1000A | 1 | Ratiometric, 4mA ~ 20mA | - | DC ~ 40kHz | ±0.5% | 1% | 11V ~ 26V | 10µs | 47mA | -40°C ~ 100°C | - | - | Bidirectional | Panel Mount | - |
