电流传感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 用于测量 | 传感器类型 | 电流 - 传感 | 通道数 | 输出 | 灵敏度 | 频率 | 线性度 | 精度 | 电压 - 电源 | 响应时间 | 电流 - 电源（最大值） | 工作温度 | 等级 | 认证 | 极化 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VJ1K5T03Voltage sensors 1500 Vrms rating |
100 |
|
规格书 |
- | Module | Bulk | Active | AC/DC | Current Sensor | - | 1 | Current | - | DC ~ 14kHz | ±1% | ±1% | 13.5V ~ 26.4V | 60µs | - | -40°C ~ 85°C | - | - | Bidirectional | Chassis Mount | - |
|
LXS 25-NPSSENSOR CURRENT HALL 25A UNIPOLAR |
75 |
|
规格书 |
LXS | Module | Tray | Active | AC/DC | Hall Effect, Closed Loop | 25A | 1 | Ratiometric, Voltage | 25mV/A | 300kHz | ±0.1% | ±2.25% | 4.75V ~ 5.25V | 400ns | 32.5mA | -40°C ~ 105°C | - | - | Bidirectional | Through Hole | - |
|
LES 6-NPSENSOR CURRENT HALL 6A UNIPOLAR |
9 |
|
规格书 |
LES | Module | Tray | Active | AC/DC | Hall Effect, Closed Loop | 6A | 1 | Ratiometric, Voltage | 104.2mV/A | 300kHz | ±0.1% | ±2.25% | 4.75V ~ 5.25V | 400ns | 23mA | -40°C ~ 105°C | - | - | Bidirectional | Through Hole | - |
|
LKSR 50-NPSENSOR CURRENT HALL 50A UNIPOLAR |
76 |
|
规格书 |
LKSR | Module | Tray | Active | AC/DC | Hall Effect, Closed Loop | 50A | 1 | Ratiometric, Voltage | 12.5mV/A | 300kHz | ±0.1% | ±1.25% | 4.75V ~ 5.25V | 400ns | 51.3mA | -40°C ~ 105°C | - | - | Bidirectional | Through Hole | - |
|
|
HC5FW 500-S/SP1AUTOMOTIVE GRADE CURRENT SENSOR |
37 |
|
- |
HC5FW | Module, Single Pass Through | Box | Active | AC/DC | Hall Effect, Open Loop | 500A | 1 | Ratiometric, Voltage | 4mV/A | DC ~ 40kHz | ±1% | ±2% | 4.75V ~ 5.25V | 6µs | 25mA | -40°C ~ 125°C | - | - | Unidirectional | Through Hole | - |
|

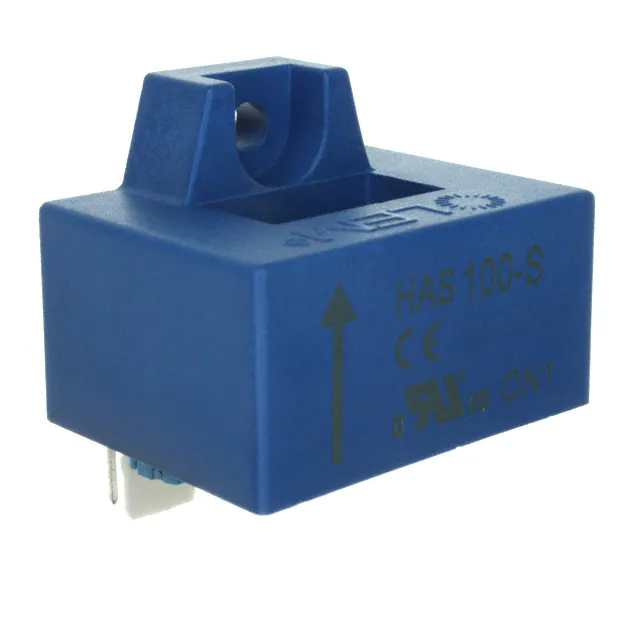

HAS 100-SSENSOR CURRENT HALL 100A AC/DC |
98 |
|
规格书 |
HAS | Module | Tray | Active | AC/DC | Hall Effect, Open Loop | 100A | 1 | Analog Voltage | - | DC ~ 50kHz | ±1% | ±1% | ±15V | 3µs | 15mA | -10°C ~ 80°C | - | - | Bidirectional | Through Hole | - |
|

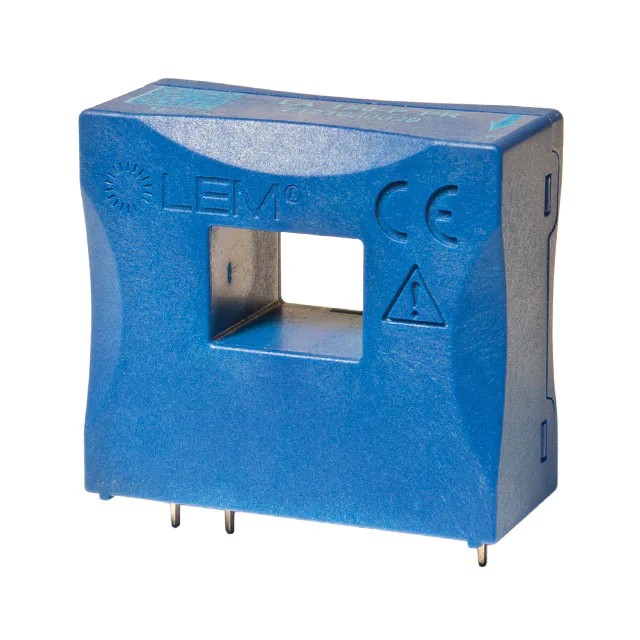

LA 150-PSENSOR CURRENT HALL 150A AC/DC |
36 |
|
规格书 |
LA | Module, Single Pass Through | Bulk | Active | AC/DC | Hall Effect, Closed Loop | 150A | 1 | Ratiometric, Current | - | DC ~ 150kHz | ±1% | ±0.5% | ±12V ~ 15V | 0.5µs | 10mA | -40°C ~ 85°C | - | - | Bidirectional | Through Hole | - |
|
HAS 300-SSENSOR CURRENT HALL 300A AC/DC |
98 |
|
规格书 |
HAS | Module | Tray | Active | AC/DC | Hall Effect, Open Loop | 300A | 1 | Analog Voltage | - | DC ~ 50kHz | ±1% | ±1% | ±15V | 3µs | 15mA | -10°C ~ 80°C | - | - | Bidirectional | Through Hole | - |
|

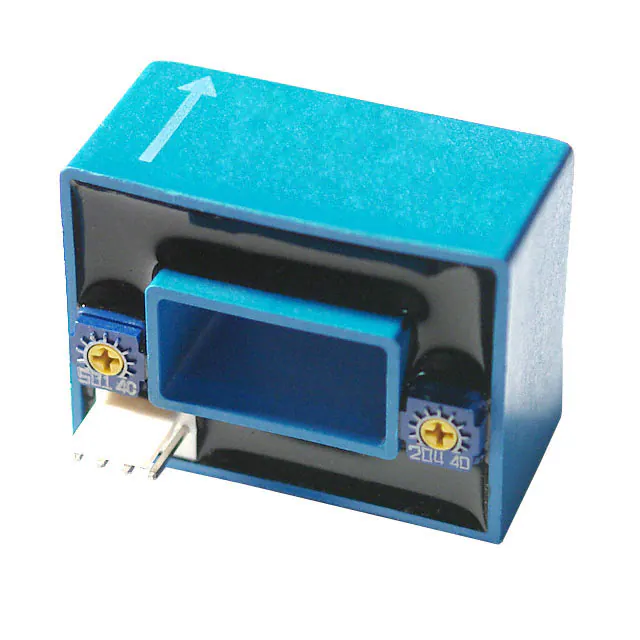

HAS 400-SSENSOR CURRENT HALL 400A AC/DC |
82 |
|
规格书 |
HAS | Module | Tray | Active | AC/DC | Hall Effect, Open Loop | 400A | 1 | Analog Voltage | - | DC ~ 50kHz | ±1% | ±1% | ±15V | 3µs | 15mA | -10°C ~ 80°C | - | - | Bidirectional | Through Hole | - |
|

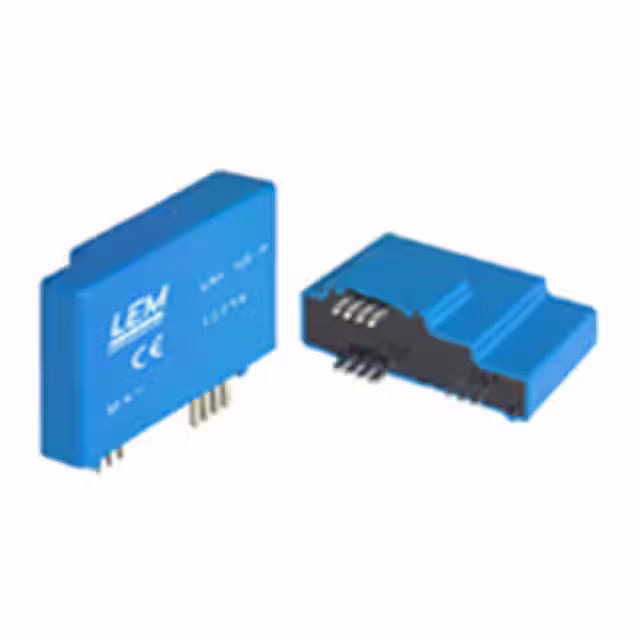

LAH 125-PSENSOR CURRENT HALL 125A AC/DC |
18 |
|
规格书 |
LAH | Module | Bulk | Active | AC/DC | Hall Effect, Closed Loop | 125A | 1 | Ratiometric, Current | - | DC ~ 100kHz | ±0.15% | ±0.41% | ±12V ~ 15V | 1µs | 144mA | -40°C ~ 85°C | - | - | Bidirectional | Through Hole | - |
|

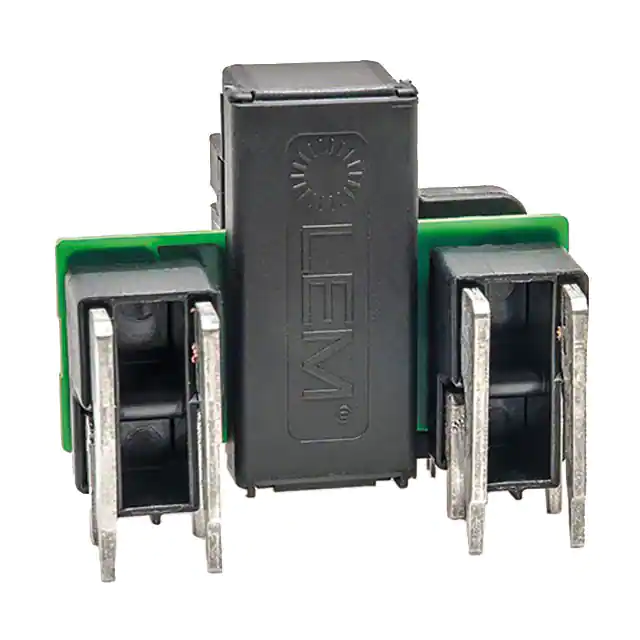

LDSR 0.3-NP3 PHASE LEAKAGE CURRENT DETECTIO |
60 |
|
规格书 |
LDSR-NP | Module | Bulk | Active | AC/DC | Hall Effect, Closed Loop | 300mA | 1 | Ratiometric, Voltage | 2.2V/A | DC ~ 2kHz | ±3% | - | 4.75V ~ 5.25V | 300µs | 20.5mA | -40°C ~ 105°C | - | - | Bidirectional | Through Hole | - |
|
|
LZSR 200-P/SP1CLOSED-LOOP CURRENT SENSOR 200A |
39 |
|
规格书 |
LZSR-P/SP1 | Module | Bulk | Active | AC/DC | Closed Loop | 200A | 1 | Voltage | 3.125mV/A | DC ~ 200kHz | ±0.15% | - | 4.75V ~ 5.25V | - | - | -40°C ~ 85°C | - | - | Bidirectional | Through Hole | - |
|
LA 100-TPSENSOR CURRENT HALL 100A AC/DC |
90 |
|
规格书 |
LA | Module | Tray | Active | AC/DC | Hall Effect, Closed Loop | 100A | 1 | Ratiometric, Current | - | DC ~ 200kHz | ±0.15% | ±0.45% | ±12V ~ 15V | 1µs | 10mA | -40°C ~ 85°C | - | - | Bidirectional | Through Hole | - |
|
CR9580-20SENSOR CURRENT XFMR 20A AC |
68 |
|
规格书 |
CR9500 | Hinged Ring, 0.40" Dia, Wire Leads | Bulk | Active | AC | Transformer w/Conditioning | 20A | 1 | Ratiometric, 0V ~ 5V | - | 50Hz ~ 400Hz | - | ±0.5% | Self Powered | 100ms (On), 250ms (Off) | - | -30°C ~ 60°C | - | - | Bidirectional | - | - |
|
|
CR9580-10SENSOR CURRENT XFMR 10A AC |
60 |
|
规格书 |
CR9500 | Hinged Ring, 0.40" Dia, Wire Leads | Bulk | Active | AC | Transformer w/Conditioning | 10A | 1 | Ratiometric, 0V ~ 5V | - | 50Hz ~ 400Hz | - | ±0.5% | Self Powered | 100ms (On), 250ms (Off) | - | -30°C ~ 60°C | - | - | Bidirectional | - | - |
|
CR9521-20SENSOR CURRENT XFMR 20A AC |
39 |
|
规格书 |
CR9500 | Module, Single Pass Through | Bulk | Active | AC | Transformer w/Conditioning | 20A | 1 | Ratiometric, 0V ~ 5V | - | 50Hz ~ 400Hz | - | ±0.5% | Self Powered | 100ms (On), 250ms (Off) | - | -30°C ~ 60°C | - | - | Bidirectional | - | - |
|
CR9380-NPNSENSOR CURRENT SWITCH 100A NPN |
37 |
|
规格书 |
CR9380 | Module, Single Pass Through | Bulk | Active | AC | Current Switch | 100A | 1 | NPN | - | 50Hz ~ 400Hz | - | - | Self Powered | 100ms (On), 250ms (Off) | - | -30°C ~ 60°C | - | - | Bidirectional | - | - |
|

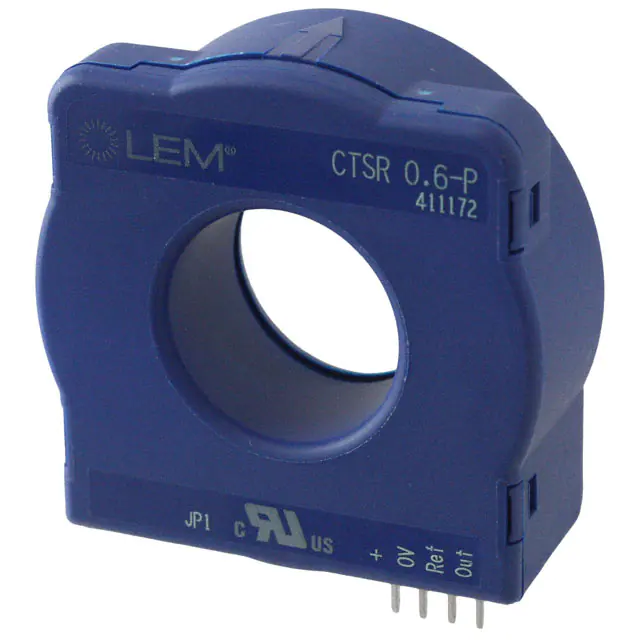

CTSR 0.6-PSENSOR CURRENT FLUX 600MA AC/DC |
39 |
|
规格书 |
CTSR | Module | Bulk | Active | AC/DC | Flux Gate, Closed Loop | 600mA | 1 | Ratiometric, Voltage | - | 9.5kHz | ±0.4% | ±1.5% | 4.75V ~ 5.25V | 30µs | 21.6mA | -40°C ~ 105°C | - | - | Bidirectional | Through Hole | - |
|
|
LA 25-PSENSOR CURRENT HALL 25A AC/DC |
98 |
|
规格书 |
- | Module, Single Pass Through | Bulk | Active | AC/DC | Hall Effect, Closed Loop | 25A | 1 | Ratiometric, Current | - | DC ~ 200kHz | ±0.15% | ±0.91% | ±12V ~ 15V | 1µs | 10mA | -25°C ~ 85°C | - | - | Bidirectional | Through Hole | - |
|
|
DHAB S/124SENSOR CURRENT 75A/500A 2CH |
75 |
|
规格书 |
DHAB | Module, Single Pass Through | Bulk | Active | AC/DC | Hall Effect, Open Loop | 75A, 500A | 2 | Voltage | 26.7mV/A | DC ~ 70Hz | ±0.5% | - | 4.75V ~ 5.25V | - | 20mA | -40°C ~ 125°C | - | - | Unidirectional | Chassis Mount | - |
