电流传感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 用于测量 | 传感器类型 | 电流 - 传感 | 通道数 | 输出 | 灵敏度 | 频率 | 线性度 | 精度 | 电压 - 电源 | 响应时间 | 电流 - 电源（最大值） | 工作温度 | 等级 | 认证 | 极化 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

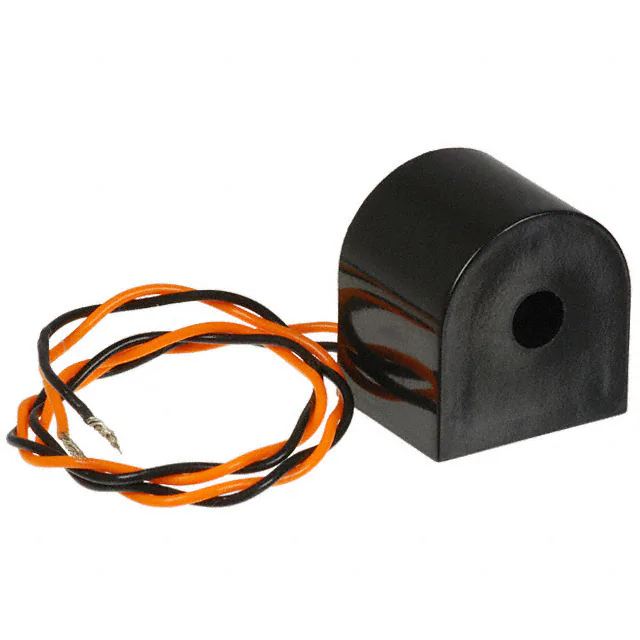

CR9321-PNPSENSOR CURRENT SWITCH 100A PNP |
228 |
|
规格书 |
CR9300 | Module, Single Pass Through | Bulk | Active | AC | Current Switch | 100A | 1 | PNP | - | 50Hz ~ 400Hz | - | - | Self Powered | 100ms (On), 250ms (Off) | - | -30°C ~ 60°C | - | - | Bidirectional | - | - |
|

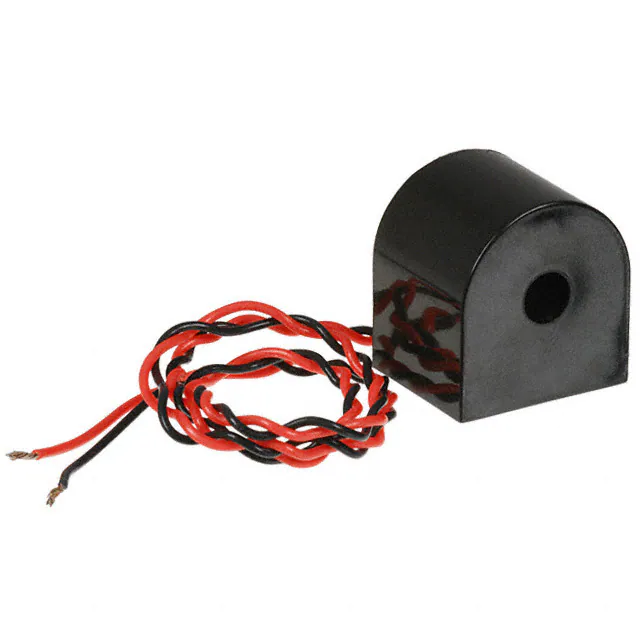

CR9321-NPNSENSOR CURRENT SWITCH 100A NPN |
101 |
|
规格书 |
CR9300 | Module, Single Pass Through | Bulk | Active | AC | Current Switch | 100A | 1 | NPN | - | 50Hz ~ 400Hz | - | - | Self Powered | 100ms (On), 250ms (Off) | - | -30°C ~ 60°C | - | - | Bidirectional | - | - |
|

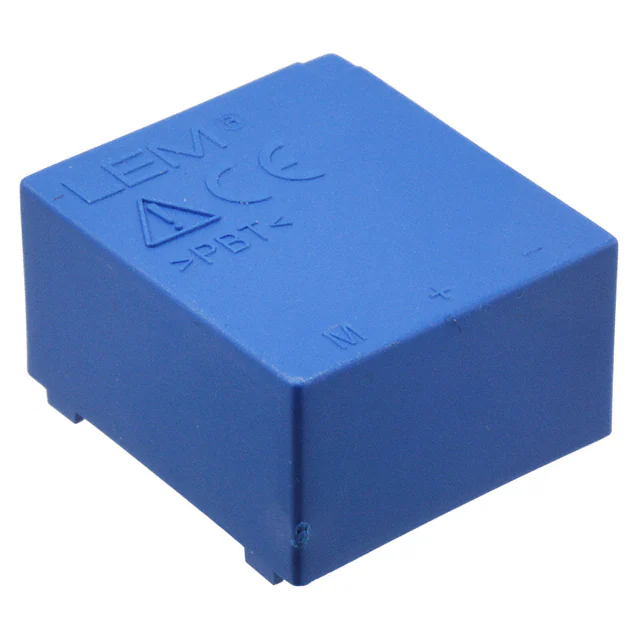

LA 25-NPSENSOR CURRENT HALL SELECTABLE |
298 |
|
规格书 |
LA | Module | Bulk | Not For New Designs | AC/DC | Hall Effect, Closed Loop | 5A, 6A, 8A, 12A, 25A (Selectable) | 1 | Ratiometric, Current | - | DC ~ 150kHz | ±0.2% | ±0.5% | ±15V | 1µs | 10mA | -40°C ~ 85°C | - | - | Bidirectional | Through Hole | - |
|

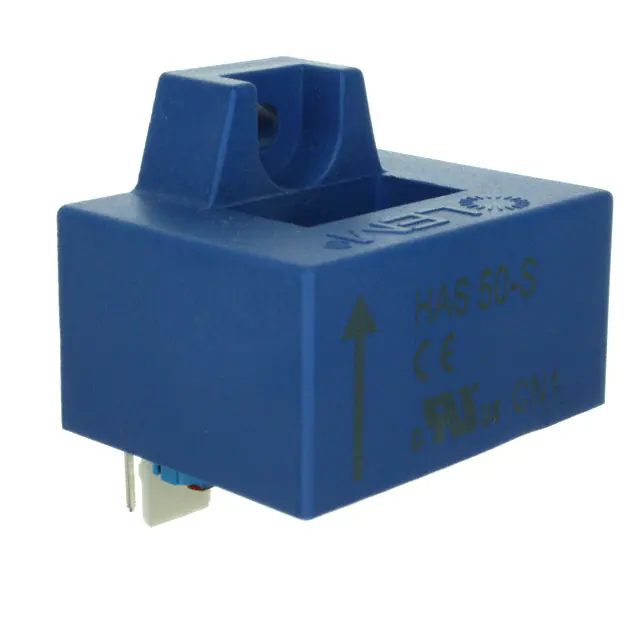

HAS 50-SSENSOR CURRENT HALL 50A AC/DC |
413 |
|
规格书 |
HAS | Module | Tray | Active | AC/DC | Hall Effect, Open Loop | 50A | 1 | Analog Voltage | - | DC ~ 50kHz | ±1% | ±1% | ±15V | 3µs | 15mA | -10°C ~ 80°C | - | - | Bidirectional | Through Hole | - |
|

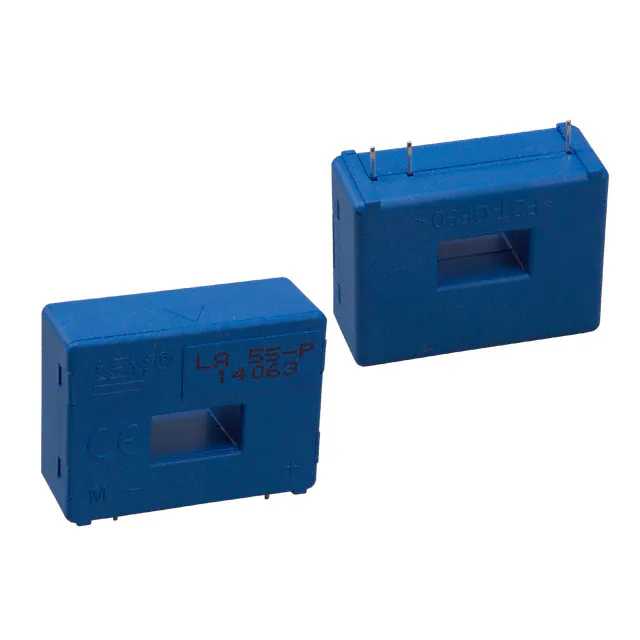

LA 55-PSENSOR CURRENT HALL 50A AC/DC |
721 |
|
规格书 |
LA | Module, Single Pass Through | Bulk | Active | AC/DC | Hall Effect, Closed Loop | 50A | 1 | Ratiometric, Current | - | DC ~ 200kHz | ±0.15% | ±0.65% | ±12V ~ 15V | 1µs | 60mA | -40°C ~ 85°C | - | - | Bidirectional | Through Hole | - |
|

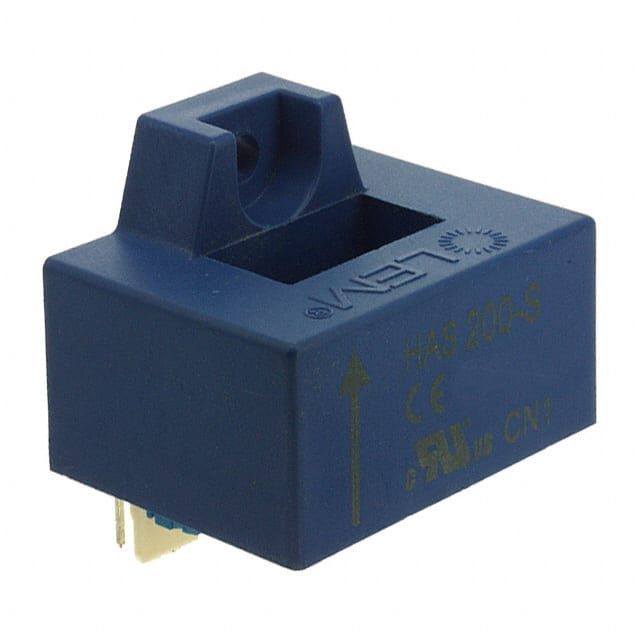

HAS 200-SSENSOR CURRENT HALL 200A AC/DC |
165 |
|
规格书 |
HAS | Module | Tray | Active | AC/DC | Hall Effect, Open Loop | 200A | 1 | Analog Voltage | - | DC ~ 50kHz | ±1% | ±1% | ±15V | 3µs | 15mA | -10°C ~ 80°C | - | - | Bidirectional | Through Hole | - |
|

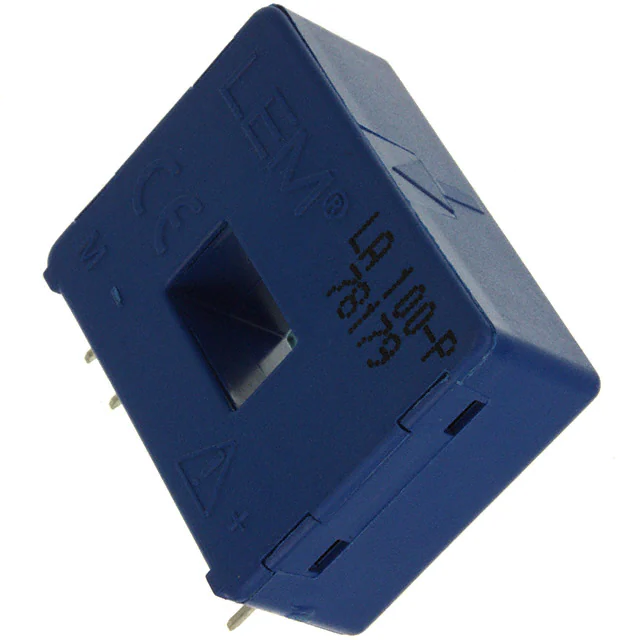

LA 100-PSENSOR CURRENT HALL 100A AC/DC |
689 |
|
规格书 |
LA | Module, Single Pass Through | Bulk | Active | AC/DC | Hall Effect, Closed Loop | 100A | 1 | Ratiometric, Current | - | DC ~ 200kHz | ±0.15% | ±0.45% | ±12V ~ 15V | 1µs | 10mA | -40°C ~ 85°C | - | - | Bidirectional | Through Hole | - |
|

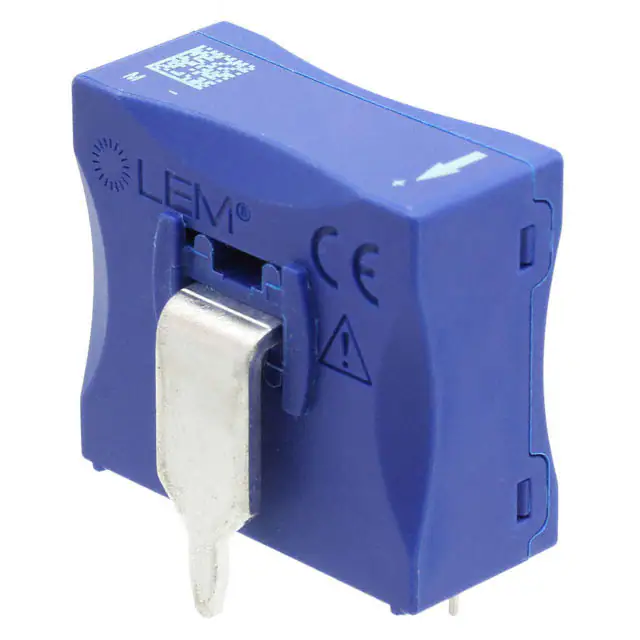

LA 150-TPSENSOR CURRENT HALL 150A AC/DC |
236 |
|
规格书 |
- | Module | Bulk | Active | AC/DC | Hall Effect, Closed Loop | 150A | 1 | Ratiometric, Current | - | DC ~ 150kHz | ±0.1% | ±0.5% | ±12V ~ 15V | 0.5µs | 85mA | -40°C ~ 85°C | - | - | Bidirectional | Through Hole | - |
|

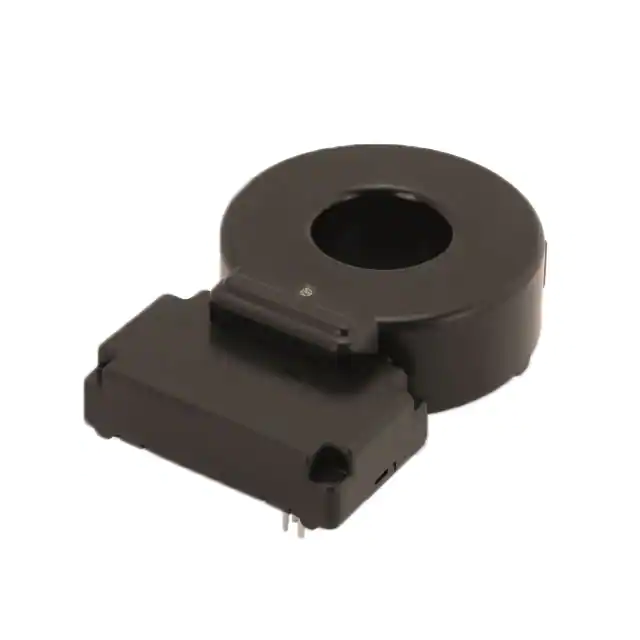

T60404N4641X900DIFFERENTIAL CURRENT SENSOR FOR |
275 |
|
规格书 |
- | Module, Single Pass Through | Box | Active | AC/DC | Flux Gate | 40A, 80A | 1 | Open Collector | - | DC ~ 2kHz | - | - | 4.9V ~ 5.1V | - | 45mA | -40°C ~ 85°C | - | - | Unidirectional | Through Hole | - |
|
FG-R05-3AFLUX GATE TYPE RESIDUAL CURRENT |
712 |
|
规格书 |
FG | Module, Single Pass Through | Box | Active | AC/DC | Flux Gate, Open Loop | 50mA | 1 | Ratiometric, Voltage | 40V/A | 55Hz | - | - | 4.75V ~ 5.25V | 250ms (AC), 1s (DC) | 13mA (Typ) | -40°C ~ 85°C | - | - | Bidirectional | Through Hole | - |
|
FG-R05-4AFLUX GATE TYPE RESIDUAL CURRENT |
188 |
|
规格书 |
FG | Module, Single Pass Through | Box | Active | AC/DC | Flux Gate, Open Loop | 50mA | 1 | Ratiometric, Voltage | 40V/A | 55Hz | - | - | 4.75V ~ 5.25V | 250ms (AC), 1s (DC) | 13mA (Typ) | -40°C ~ 85°C | - | - | Bidirectional | Through Hole | - |
|

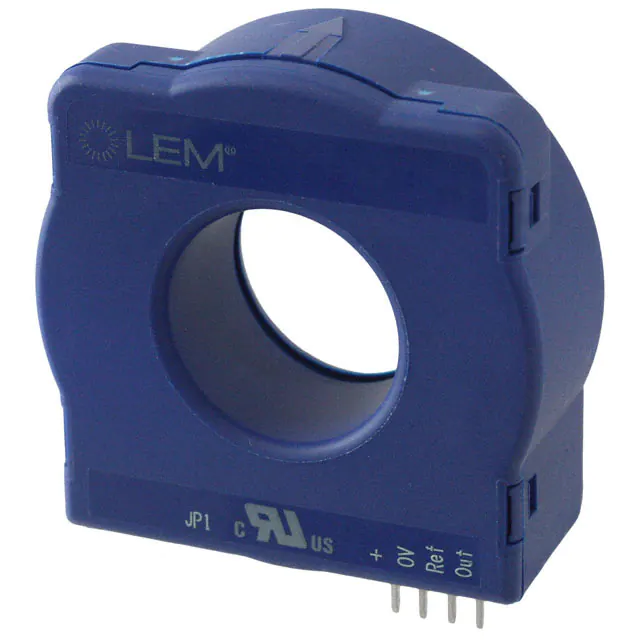

CTSR 0.3-PSENSOR CURRENT FLUX 300MA AC/DC |
119 |
|
规格书 |
CTSR | Module | Bulk | Active | AC/DC | Flux Gate, Closed Loop | 300mA | 1 | Ratiometric, Voltage | - | 3.5kHz | ±0.5% | ±1.9% | 4.75V ~ 5.25V | 50µs | 21.6mA | -40°C ~ 105°C | - | - | Bidirectional | Through Hole | - |
|

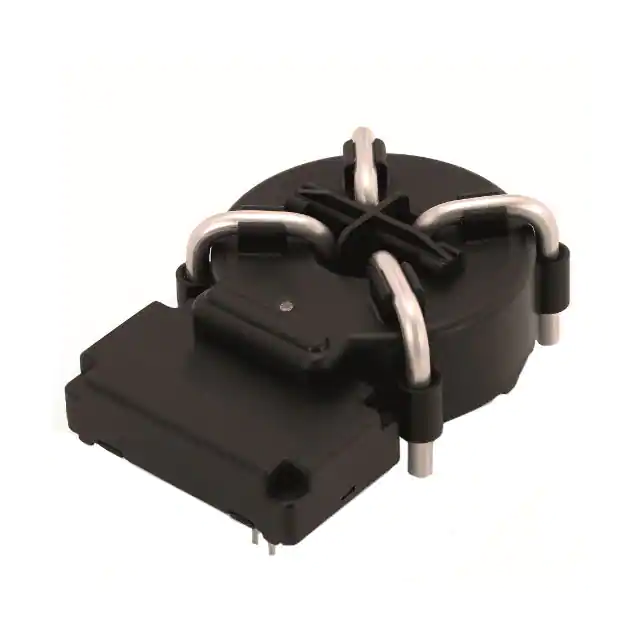

T60404N4641X920DIFFERENTIAL CURRENT SENSOR FOR |
724 |
|
规格书 |
- | Module | Box | Active | AC/DC | Flux Gate | 32A, 40A | 1 | Open Collector | - | DC ~ 2kHz | - | - | 4.9V ~ 5.1V | - | 45mA | -40°C ~ 85°C | - | - | Unidirectional | Through Hole | - |
|
DHAB S/118SENSOR CURRENT HALL 30A AC/DC |
208 |
|
规格书 |
DHAB | Module, Single Pass Through | Bulk | Active | AC/DC | Hall Effect, Open Loop | ±30A | 1 | Ratiometric, Voltage and Current | 66.7mV/A | DC ~ 1.1kHz | ±0.5% | - | 4.75V ~ 5.25V | - | 20mA | -40°C ~ 125°C | - | - | Unidirectional | Chassis Mount | - |
|
|
DHAB S/125TRANSDUCER |
108 |
|
规格书 |
DHAB | Module, Single Pass Through | Bulk | Active | AC/DC | Hall Effect, Open Loop | 25A | 1 | Ratiometric, Voltage | 80mV/A | DC ~ 70Hz | ±0.5% | ±0.9% | 4.75V ~ 5.25V | - | 20mA | -40°C ~ 125°C | - | - | Unidirectional | Chassis Mount | - |
|
|
LA 200-PSENSOR CURRENT HALL 200A AC/DC |
362 |
|
规格书 |
LA | Module | Bulk | Active | AC/DC | Hall Effect, Closed Loop | 200A | 1 | Ratiometric, Current | - | DC ~ 100kHz | ±0.15% | ±0.40% | ±12V ~ 15V | 1µs | 16mA | -40°C ~ 85°C | - | - | Bidirectional | Through Hole | - |
|

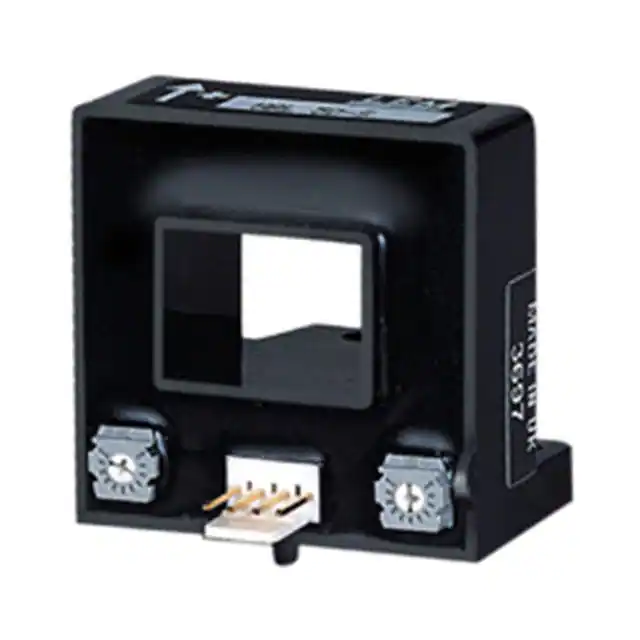

HAL 50-SSENSOR CURRENT HALL 50A AC/DC |
43 |
|
规格书 |
HAL | Module | Bulk | Not For New Designs | AC/DC | Hall Effect, Open Loop | 50A | 1 | Voltage | - | DC ~ 50kHz | ±0.5% | ±1% | ±15V | 3µs | 25mA | -25°C ~ 85°C | - | - | Bidirectional | Chassis Mount | - |
|
|
HAL 200-SSENSOR CURRENT HALL 200A AC/DC |
43 |
|
规格书 |
HAL | Module | Bulk | Not For New Designs | AC/DC | Hall Effect, Open Loop | 200A | 1 | Voltage | - | DC ~ 50kHz | ±0.5% | ±1% | ±15V | 3µs | 25mA | -25°C ~ 85°C | - | - | Bidirectional | Chassis Mount | - |
|
|
HAT 800-SSENSOR CURRENT HALL 800A AC/DC |
34 |
|
规格书 |
HAT | Module | Tray | Active | AC/DC | Hall Effect, Open Loop | 800A | 1 | Ratiometric, Voltage | - | DC ~ 25kHz | ±1% | ±1% | ±15V | 5µs | 15mA | -40°C ~ 105°C | - | - | Bidirectional | Chassis Mount | - |
|

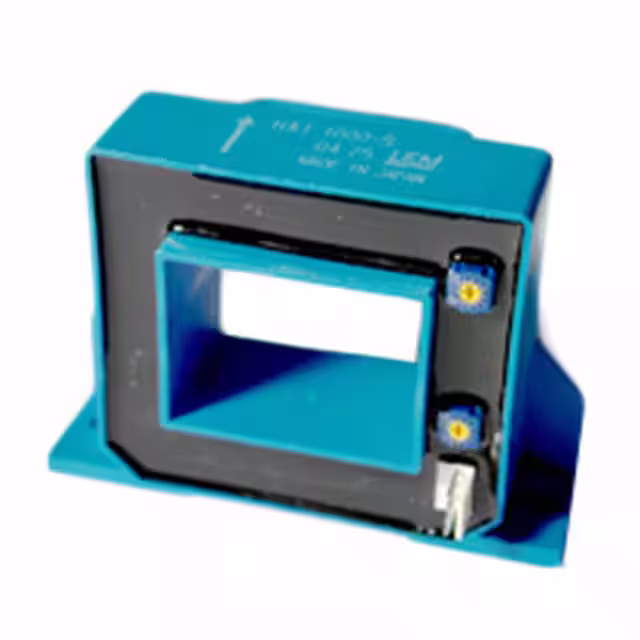

HAT 1000-SSENSOR CURRENT HALL 1000A AC/DC |
39 |
|
规格书 |
HAT | Module | Tray | Active | AC/DC | Hall Effect, Open Loop | 1000A | 1 | Ratiometric, Voltage | - | DC ~ 25kHz | ±1% | ±1% | ±15V | 5µs | 15mA | -40°C ~ 105°C | - | - | Bidirectional | Chassis Mount | - |
