箱体
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

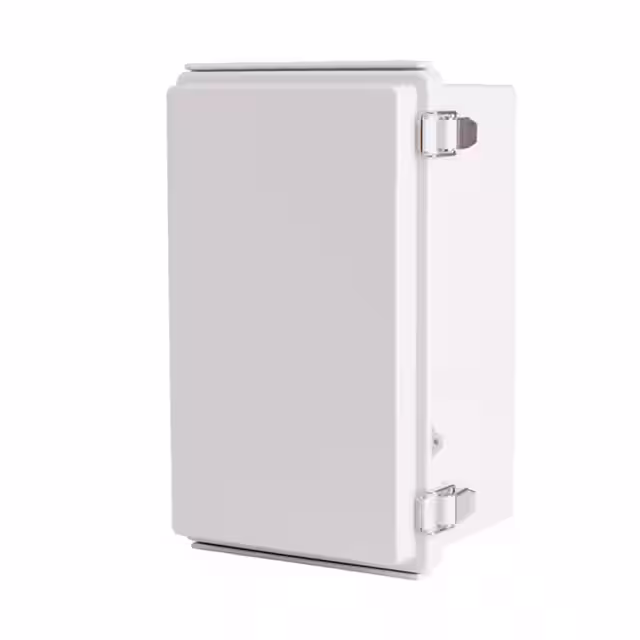

BC-CGP-162613BOX PLAS LGT GRY 10.24"L X 6.3"W |
0 |
|
规格书 |
P | Bulk | Active | Box | 10.236" L x 6.299" W (260.00mm x 160.00mm) | 5.118" (130.00mm) | 64.5in² (416cm²) | Hinged Door, Stainless Steel Latch | Plastic, Polycarbonate/Fiberglass | Light Gray | 0.126" (3.20mm) | Flame Retardant, Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|

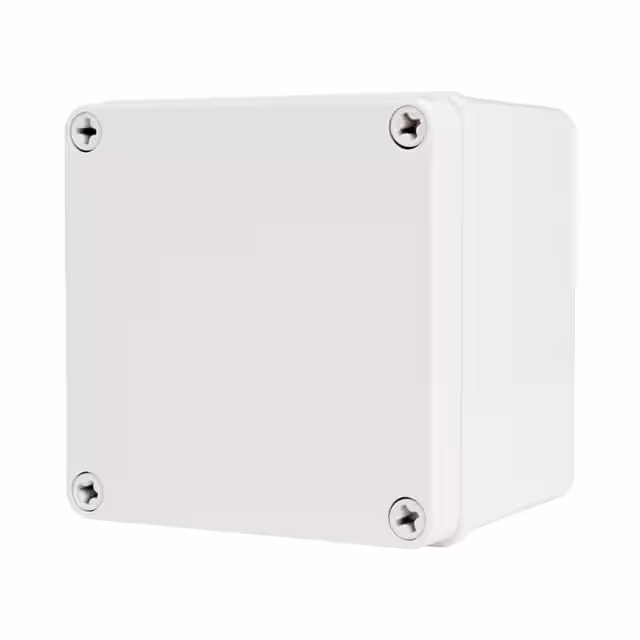

BC-CGS-121210BOX PLAS LGT GRY 4.92"L X 4.92"W |
0 |
|
规格书 |
S | Bulk | Active | Box | 4.921" L x 4.921" W (125.00mm x 125.00mm) | 3.937" (100.00mm) | 24.2in² (156cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|

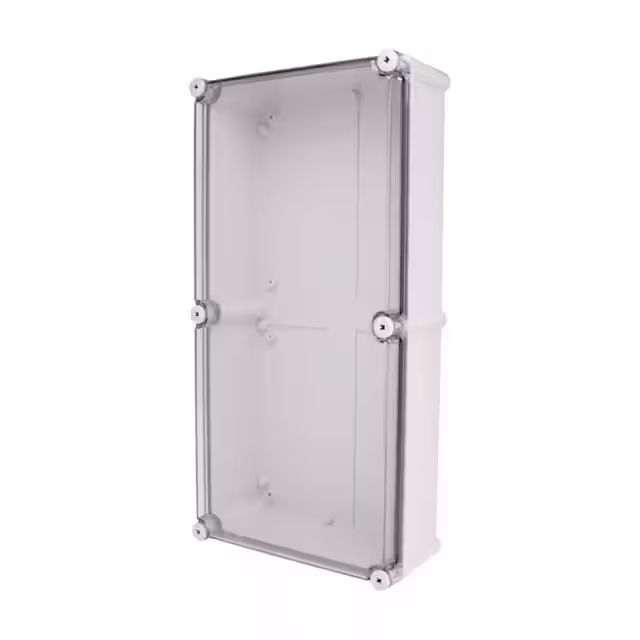

BC-ATS-285613BOX ABS CLEAR 22.05"L X 11.02"W |
0 |
|
规格书 |
S | Bulk | Active | Box | 22.047" L x 11.024" W (560.00mm x 280.00mm) | 5.118" (130.00mm) | 243in² (1568cm²) | Lift-Off Screw Cover | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|
BC-AGP-406018BOX ABS GRAY 23.622"L X 15.748"W |
0 |
|
规格书 |
P | Bulk | Active | Box | 23.622" L x 15.748" W (600.00mm x 400.00mm) | 7.087" (180.00mm) | 372in² (2400cm²) | Hinged Door, Stainless Steel Latch | Plastic, ABS | Light Gray | 0.146" (3.70mm) | Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|
BC-ATP-506025BOX ABS CLEAR 24.8"L X 20.87"W |
0 |
|
规格书 |
P | Bulk | Active | Box | 24.803" L x 20.866" W (630.00mm x 530.00mm) | 10.039" (255.00mm) | 518in² (3339cm²) | Hinged Door, Stainless Steel Latch | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | 0.177" (4.50mm) | Hinged, Latches, Lockable, Mounting Brackets, Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|

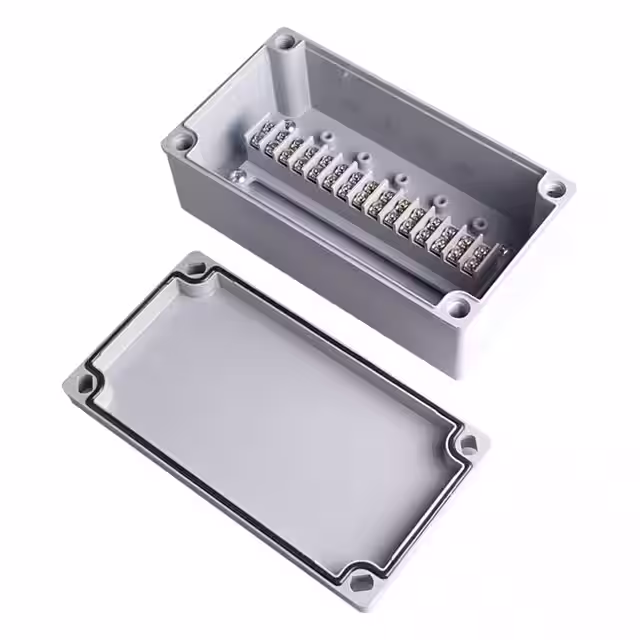

BC-ABB-15PJUNCT BOX ABS 7.874"L X 3.937"W |
0 |
|
规格书 |
TB | Bulk | Active | Junction Box | 7.874" L x 3.937" W (200.00mm x 100.00mm) | 2.756" (70.00mm) | 31.0in² (200cm²) | Lift-Off Screw Cover | Plastic, ABS | Grayish Blue | - | Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|

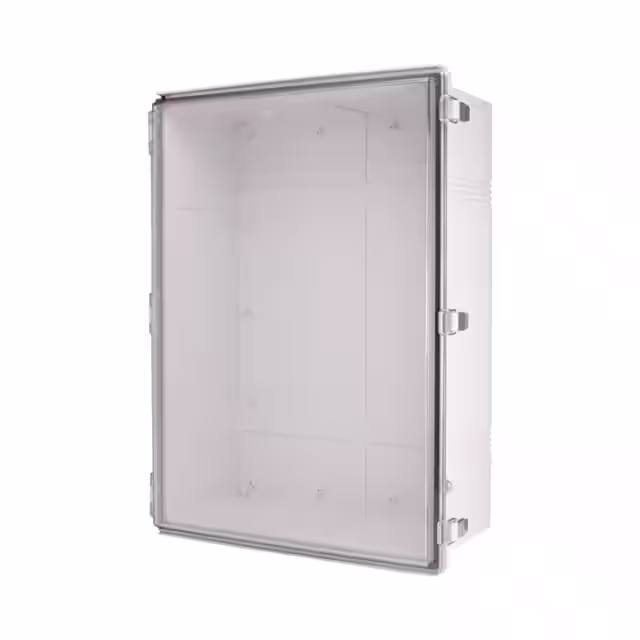

BC-ATP-507025BOX ABS CLEAR 28.74"L X 20.87"W |
0 |
|
规格书 |
P | Bulk | Active | Box | 28.740" L x 20.866" W (730.00mm x 530.00mm) | 10.039" (255.00mm) | 600in² (3869cm²) | Hinged Door, Stainless Steel Latch | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | 0.177" (4.50mm) | Hinged, Latches, Lockable, Mounting Brackets, Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|

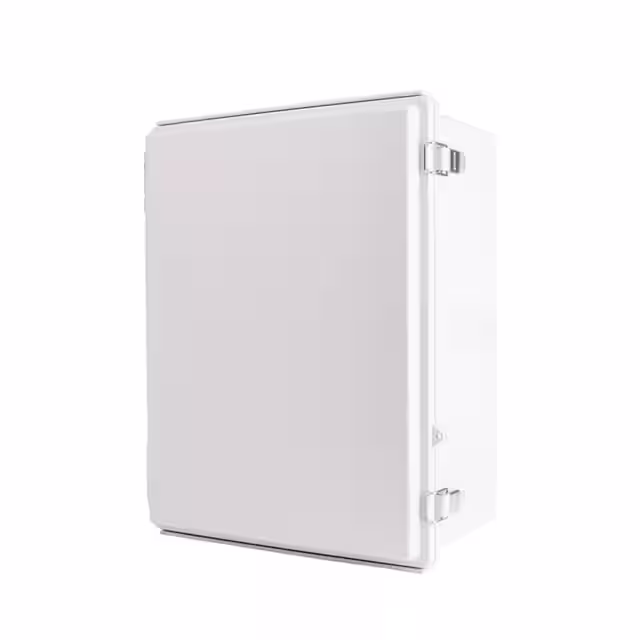

BC-AGP-354520BOX ABS GRAY 17.717"L X 13.780"W |
0 |
|
规格书 |
P | Bulk | Active | Box | 17.717" L x 13.780" W (450.00mm x 350.00mm) | 7.874" (200.00mm) | 244in² (1575cm²) | Hinged Door, Stainless Steel Latch | Plastic, ABS | Light Gray | 0.146" (3.70mm) | Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|

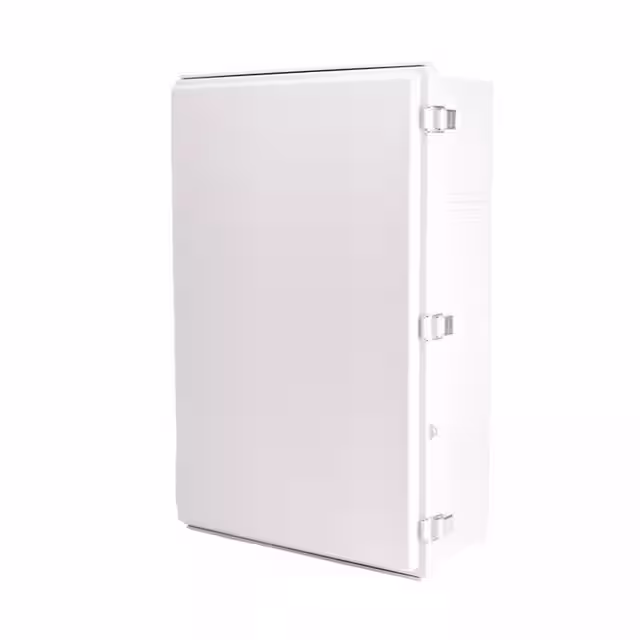

BC-CGP-406018BOX PC GRAY 23.622"L X 15.748"W |
0 |
|
规格书 |
P | Bulk | Active | Box | 23.622" L x 15.748" W (600.00mm x 400.00mm) | 7.087" (180.00mm) | 372in² (2400cm²) | Hinged Door, Stainless Steel Latch | Plastic, Polycarbonate/Fiberglass | Light Gray | 0.146" (3.70mm) | Flame Retardant, Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|

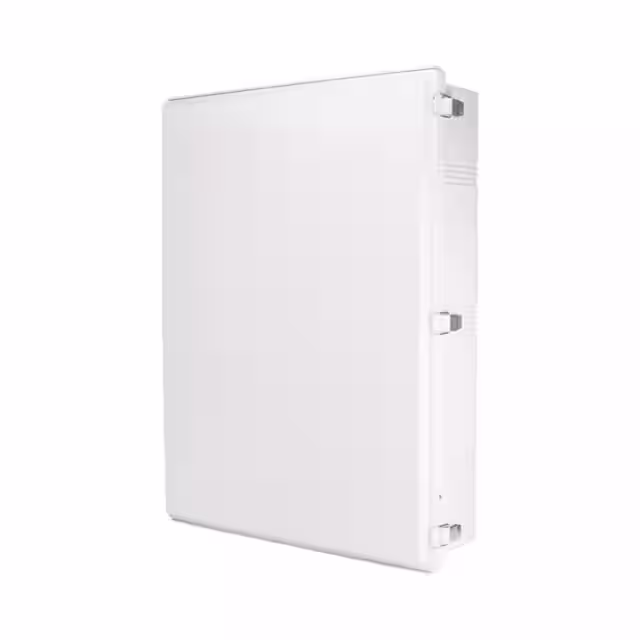

BC-CGP-608018BOX PC GRAY 32.677"L X 24.803"W |
0 |
|
规格书 |
P | Bulk | Active | Box | 32.677" L x 24.803" W (830.00mm x 630.00mm) | 7.283" (185.00mm) | 811in² (5229cm²) | Hinged Door, Stainless Steel Latch | Plastic, Polycarbonate/Fiberglass | Light Gray | 0.177" (4.50mm) | Flame Retardant, Hinged, Latches, Lockable, Mounting Brackets, Sealing Gasket | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|

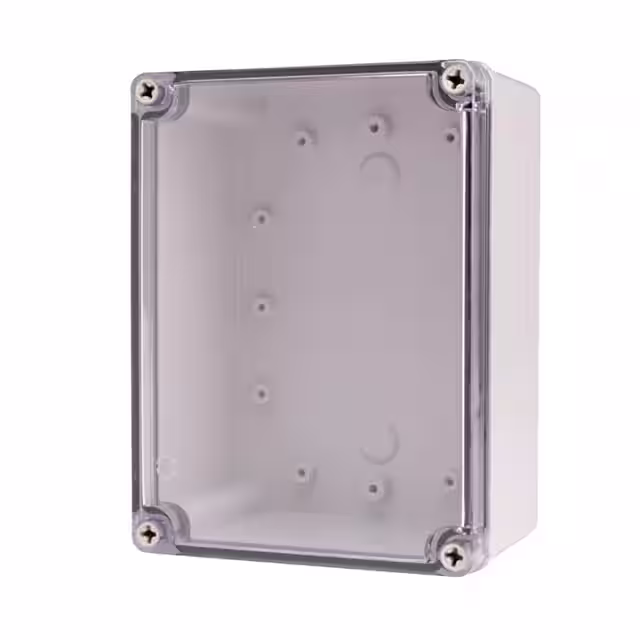

BC-ATS-152010BOX ABS CLEAR 7.87"L X 5.91"W |
0 |
|
规格书 |
S | Bulk | Active | Box | 7.874" L x 5.906" W (200.00mm x 150.00mm) | 3.937" (100.00mm) | 46.5in² (300cm²) | Lift-Off Screw Cover | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|
BC-CGS-193813BOX PLAS LGT GRY 14.96"LX7.48"W |
0 |
|
规格书 |
S | Bulk | Active | Box | 14.961" L x 7.480" W (380.00mm x 190.00mm) | 5.118" (130.00mm) | 112in² (722cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|

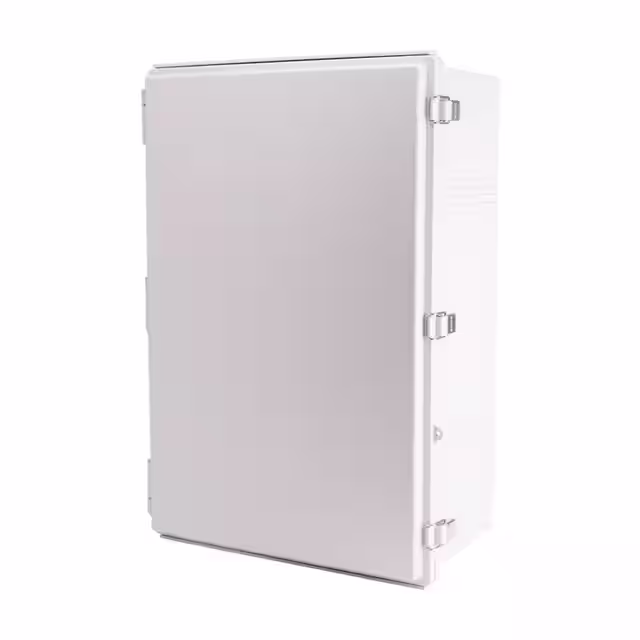

BC-CGP-406023BOX PC GRAY 23.622"L X 15.748"W |
0 |
|
规格书 |
P | Bulk | Active | Box | 23.622" L x 15.748" W (600.00mm x 400.00mm) | 9.055" (230.00mm) | 372in² (2400cm²) | Hinged Door, Stainless Steel Latch | Plastic, Polycarbonate/Fiberglass | Light Gray | 0.146" (3.70mm) | Flame Retardant, Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|

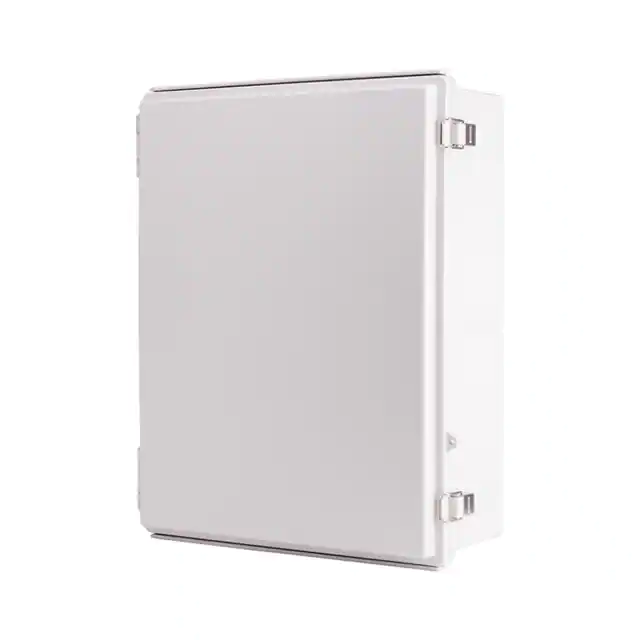

BC-AGP-405016BOX ABS GRAY 19.685"L X 15.748"W |
0 |
|
规格书 |
P | Bulk | Active | Box | 19.685" L x 15.748" W (500.00mm x 400.00mm) | 6.299" (160.00mm) | 310in² (2000cm²) | Hinged Door, Stainless Steel Latch | Plastic, ABS | Light Gray | 0.126" (3.20mm) | Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|

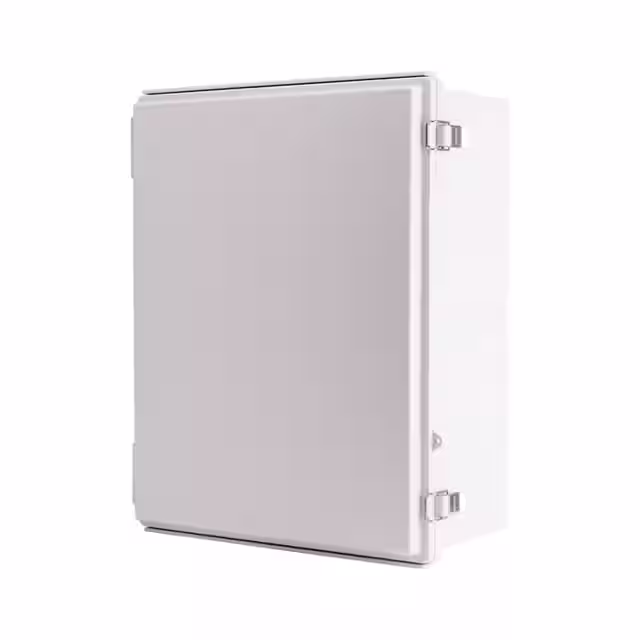

BC-AGP-405020BOX ABS GRAY 19.685"L X 15.748"W |
0 |
|
规格书 |
P | Bulk | Active | Box | 19.685" L x 15.748" W (500.00mm x 400.00mm) | 7.874" (200.00mm) | 310in² (2000cm²) | Hinged Door, Stainless Steel Latch | Plastic, ABS | Light Gray | 0.126" (3.20mm) | Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|

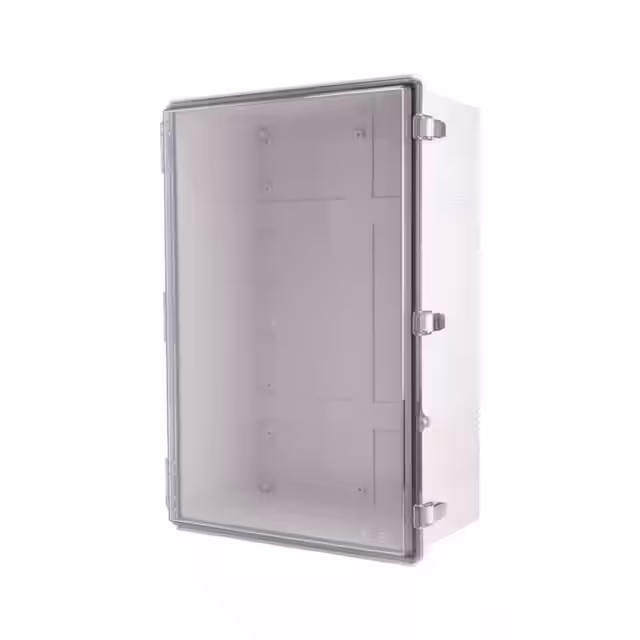

BC-CTP-406023BOX PC CLEAR 23.622"L X 15.748"W |
0 |
|
规格书 |
P | Bulk | Active | Box | 23.622" L x 15.748" W (600.00mm x 400.00mm) | 9.055" (230.00mm) | 372in² (2400cm²) | Hinged Door, Stainless Steel Latch | Plastic, Polycarbonate/Fiberglass | Light Gray, Clear Cover | 0.146" (3.70mm) | Flame Retardant, Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|

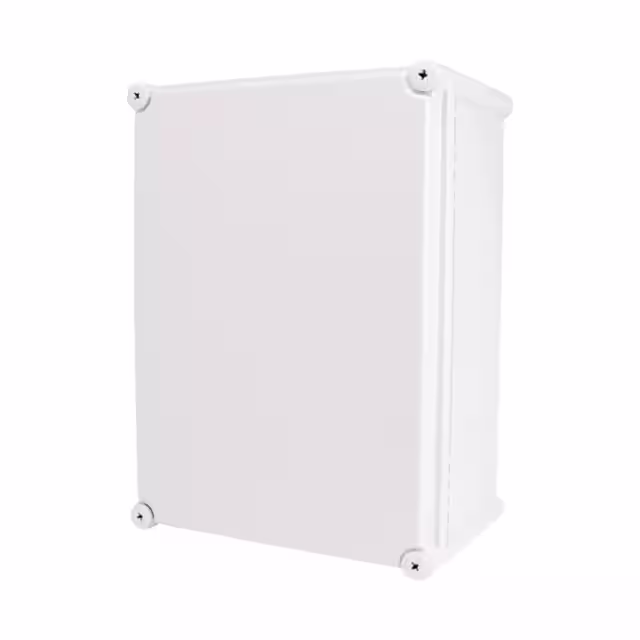

BC-AGS-283818BOX ABS LGT GRY 14.96"LX11.02"W |
0 |
|
规格书 |
S | Bulk | Active | Box | 14.961" L x 11.024" W (380.00mm x 280.00mm) | 7.087" (180.00mm) | 165in² (1064cm²) | Lift-Off Screw Cover | Plastic, ABS | Light Gray | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|

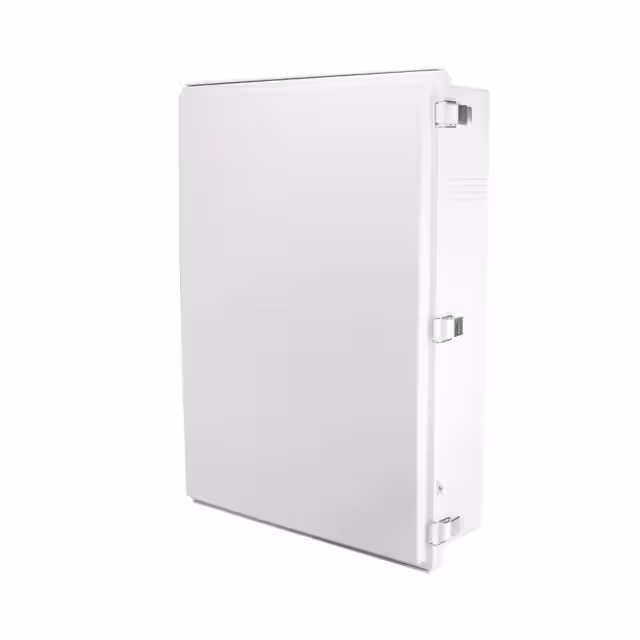

BC-AGP-507018BOX ABS GRAY 28.740"L X 20.866"W |
0 |
|
规格书 |
P | Bulk | Active | Box | 28.740" L x 20.866" W (730.00mm x 530.00mm) | 7.283" (185.00mm) | 600in² (3869cm²) | Hinged Door, Stainless Steel Latch | Plastic, ABS | Light Gray | 0.177" (4.50mm) | Hinged, Latches, Lockable, Mounting Brackets, Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|

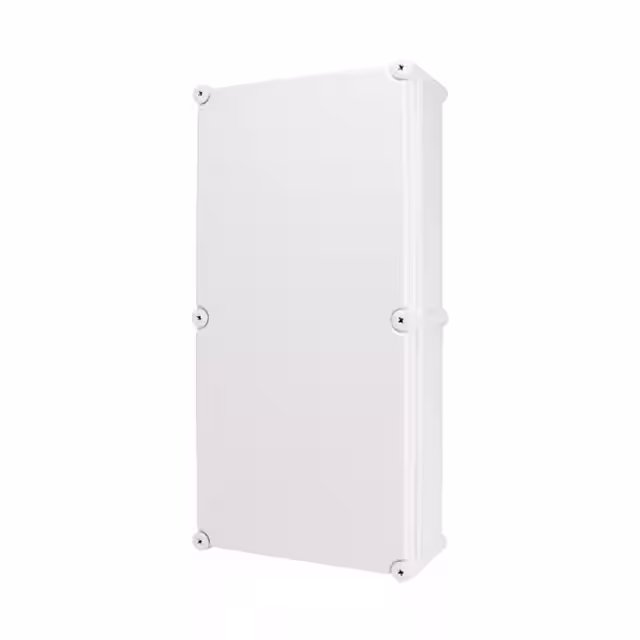

BC-AGS-285613BOX ABS GRAY 22.047"L X 11.024"W |
0 |
|
规格书 |
S | Bulk | Active | Box | 22.047" L x 11.024" W (560.00mm x 280.00mm) | 5.118" (130.00mm) | 243in² (1568cm²) | Lift-Off Screw Cover | Plastic, ABS | Light Gray | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|

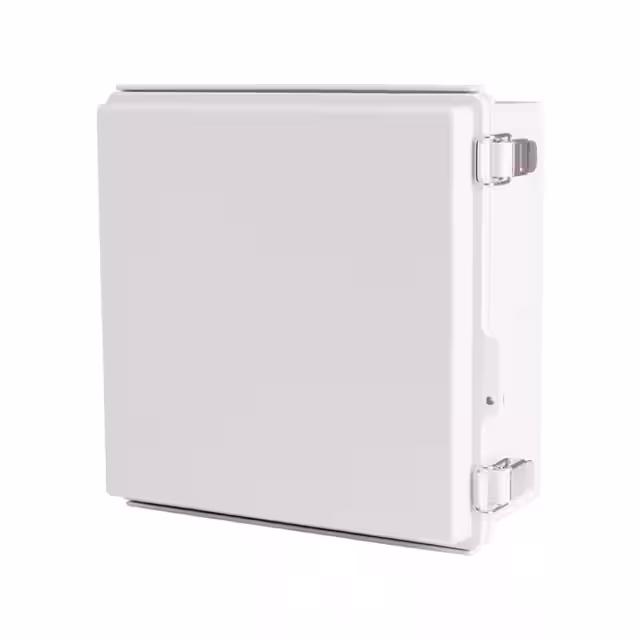

BC-AGP-282813BOX ABS GRAY 11.024"L X 11.024"W |
0 |
|
规格书 |
P | Bulk | Active | Box | 11.024" L x 11.024" W (280.00mm x 280.00mm) | 5.118" (130.00mm) | 122in² (784cm²) | Hinged Door, Stainless Steel Latch | Plastic, ABS | Light Gray | 0.126" (3.20mm) | Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
