上传BOM
箱体
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9535210000BOX PLASTIC GRAY 4.92"L X 4.92"W |
0 |
|
规格书 |
MPC | Bulk | Active | Box | 4.921" L x 4.921" W (125.00mm x 125.00mm) | 2.953" (75.00mm) | 24.2in² (156cm²) | Cover Included | Plastic, Polycarbonate | Gray | - | PCB Supports, Sealed | IP66, IP67 | - |
|
9535220000BOX PLASTIC 4.92"L X 4.92"W |
0 |
|
规格书 |
MPC | Bulk | Active | Box | 4.921" L x 4.921" W (125.00mm x 125.00mm) | 2.953" (75.00mm) | 24.2in² (156cm²) | Cover Included | Plastic, Polycarbonate | Gray, Clear Cover/Door | - | PCB Supports, Sealed | IP66, IP67 | - |
|
|
120-910BOX PLASTIC GRAY |
0 |
|
- |
TK | Bulk | Active | Box | - | 3.190" (81.03mm) | - | Cover Included, Hand Held | Plastic, Polycarbonate | Gray | - | - | IP66, NEMA 4X | UL94 V-2 |
|
|
127-910BOX PLASTIC GRAY |
0 |
|
- |
TK | Bulk | Active | Box | - | 3.190" (81.03mm) | - | Cover Included, Hand Held | Plastic, Polycarbonate | Gray | - | - | IP66, NEMA 4X | UL94 V-2 |
|
|
130-510BOX PLASTIC GRAY/CLR |
0 |
|
- |
TK | Bulk | Active | Box | - | 3.190" (81.03mm) | - | Cover Included, Hand Held | Plastic, Polycarbonate | Gray, Clear Cover/Door | - | - | IP66, NEMA 4X | UL94 V-2 |
|
|
137-510BOX PLASTIC GRAY/CLR |
0 |
|
- |
TK | Bulk | Active | Box | - | 3.190" (81.03mm) | - | Cover Included, Hand Held | Plastic, Polycarbonate | Gray, Clear Cover/Door | - | - | IP66, NEMA 4X | UL94 V-2 |
|
|
200-407-01BOX PLASTIC GRAY |
0 |
|
- |
TG | Bulk | Active | Box | - | 3.540" (89.92mm) | - | Cover Included, Hand Held | Plastic, Polycarbonate | Gray | - | - | IP67, NEMA 4X | UL94 V-2 |
|
|
200-407-91BOX PLASTIC GRAY |
0 |
|
- |
TG | Bulk | Active | Box | - | 3.540" (89.92mm) | - | Cover Included, Hand Held | Plastic, Polycarbonate | Gray | - | - | IP67, NEMA 4X | UL94 V-2 |
|
|
201-007-91BOX PLASTIC GRAY/CLR |
0 |
|
- |
TG | Bulk | Active | Box | - | 3.540" (89.92mm) | - | Cover Included, Hand Held | Plastic, Polycarbonate | Gray, Clear Cover/Door | - | - | IP67, NEMA 4X | UL94 V-2 |
|
|
AN-1309-ABBOX ALUM BLACK 4.75"L X 4.75"W |
0 |
|
规格书 |
AN-A | Bulk | Active | Box | 4.750" L x 4.750" W (120.65mm x 120.65mm) | 4.000" (101.60mm) | 22.6in² (146cm²) | Cover Included | Metal, Aluminum | Black | 0.120" (3.05mm) | Card Guides, PCB Supports, Watertight | IP68, NEMA 4X,6,6P,12,13 | - |
|
BC-CTS-212310BOX PLASTIC CLR 9.06"L X 8.27"W |
2 |
|
规格书 |
S | Bulk | Active | Box | 9.055" L x 8.268" W (230.00mm x 210.00mm) | 3.937" (100.00mm) | 74.9in² (483cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray, Clear Cover | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|

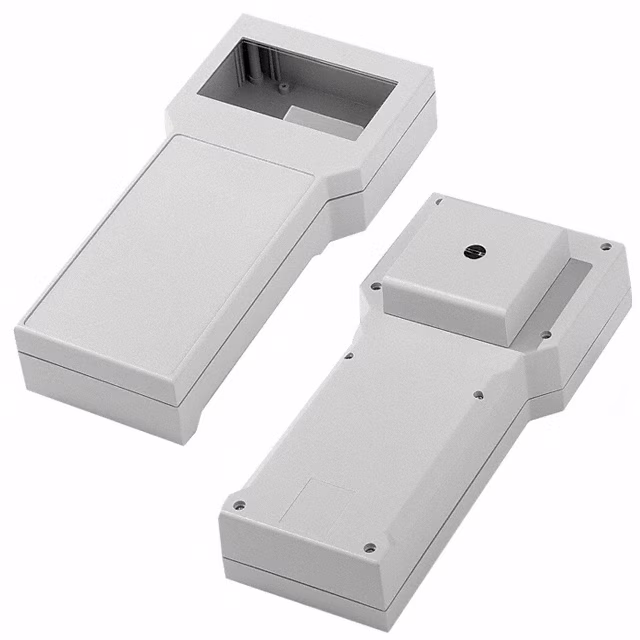

BOS 913BOX ABS GRAY 8.82"L X 4.17"W |
0 |
|
规格书 |
Databoss | Bulk | Active | Box | 8.819" L x 4.173" W (224.00mm x 106.00mm) | 2.323" (59.00mm) | 36.8in² (237cm²) | Hand Held, Split Sides | Plastic, ABS | Gray | 0.138" (3.50mm) | Battery Compartment, 9V, PCB Supports | IP65 | UL94 HB |
|
|
NBF-32114BOX ABS/PC GRAY 7.08"L X 7.08"W |
0 |
|
规格书 |
NBF | Bulk | Active | Box | 7.080" L x 7.080" W (179.83mm x 179.83mm) | 5.900" (149.86mm) | 50.0in² (323cm²) | Hinged Door, Lid | Plastic, ABS/PC Blend | Gray | 0.115" (2.92mm) | PCB Supports, Non-Metallic Hinges | IP66, NEMA 1,2,4,4X,12,13 | UL94 5VA |
|
UL PC 95/60 HGBOX PLAS LGT GRY 3.9"L X 3.9"W |
4 |
|
规格书 |
- | Box | Active | Box | 3.900" L x 3.900" W (99.06mm x 99.06mm) | 2.400" (60.96mm) | 15.2in² (98cm²) | Cover Included | Plastic, Polycarbonate | Light Gray | - | - | IP66, IP67, UL 508 | UL 746C 5" |
|
|
106-007BOX PLASTIC 7.17"L X 7.09"W |
0 |
|
- |
TK | Bulk | Active | Box | 7.170" L x 7.090" W (182.12mm x 180.09mm) | 3.540" (89.92mm) | - | Cover Included, Hand Held | Plastic, Polystyrene | Gray, Clear Cover/Door | - | - | IP66, NEMA 4X | UL94 HB |
|
|
111-007BOX PLASTIC 7.17"L X 7.09"W |
0 |
|
- |
TK | Bulk | Active | Box | 7.170" L x 7.090" W (182.12mm x 180.09mm) | 3.540" (89.92mm) | - | Cover Included, Hand Held | Plastic, Polystyrene | Gray, Clear Cover/Door | - | - | IP66, NEMA 4X | UL94 HB |
|
|
116-007BOX PLASTIC 7.17"L X 7.09"W |
0 |
|
- |
TK | Bulk | Active | Box | 7.170" L x 7.090" W (182.12mm x 180.09mm) | 3.540" (89.92mm) | - | Cover Included, Hand Held | Plastic, Polystyrene | Gray, Clear Cover/Door | - | - | IP66, NEMA 4X | UL94 HB |
|
|
120-415BOX PLASTIC GRAY |
0 |
|
- |
TK | Bulk | Active | Box | - | - | - | Cover Included, Hand Held | Plastic, Polycarbonate | Gray | - | - | IP66, NEMA 4X | UL94 V-2 |
|
|
127-415BOX PLASTIC GRAY |
0 |
|
- |
TK | Bulk | Active | Box | - | - | - | Cover Included, Hand Held | Plastic, Polycarbonate | Gray | - | - | IP66, NEMA 4X | UL94 V-2 |
|
|
130-015BOX PLASTIC GRAY/CLR |
0 |
|
- |
TK | Bulk | Active | Box | - | - | - | Cover Included, Hand Held | Plastic, Polycarbonate | Gray, Clear Cover/Door | - | - | IP66, NEMA 4X | UL94 V-2 |
