上传BOM
箱体
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

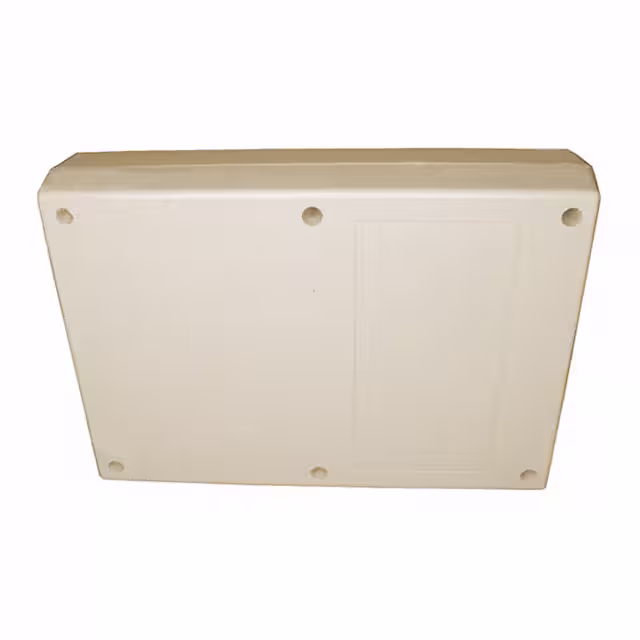

171RI,ALBOX ABS ALMOND 6.88"L X 4.88"W |
0 |
|
- |
S | Bulk | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 1.500" (38.10mm) | 33.6in² (217cm²) | Hand Held, Split Sides | Plastic, ABS | Almond | 0.100" (2.54mm) | Front Access, PCB Supports | IP40, NEMA 1 | UL94 HB |
|

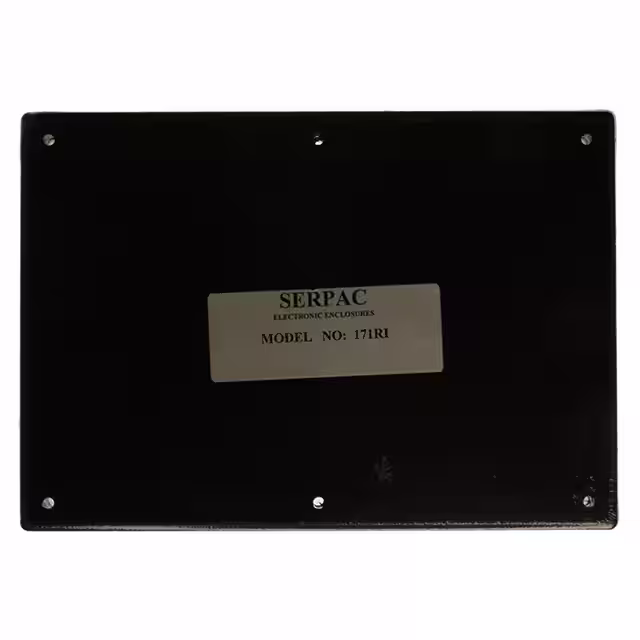

171RI,BKBOX ABS BLACK 6.88"L X 4.88"W |
0 |
|
- |
S | Bulk | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 1.500" (38.10mm) | 33.6in² (217cm²) | Hand Held, Split Sides | Plastic, ABS | Black | 0.100" (2.54mm) | Front Access, PCB Supports | IP40, NEMA 1 | UL94 HB |
|

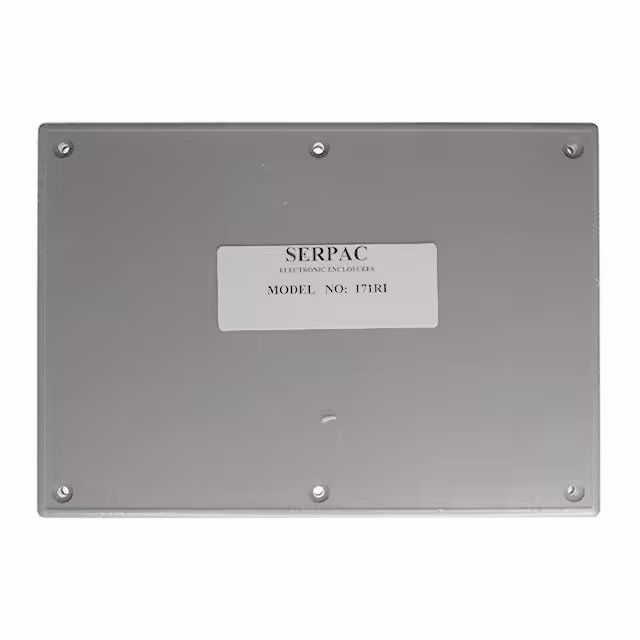

171RI,GYBOX ABS GRAY 6.88"L X 4.88"W |
0 |
|
- |
S | Bulk | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 1.500" (38.10mm) | 33.6in² (217cm²) | Hand Held, Split Sides | Plastic, ABS | Gray | 0.100" (2.54mm) | Front Access, PCB Supports | IP40, NEMA 1 | UL94 HB |
|

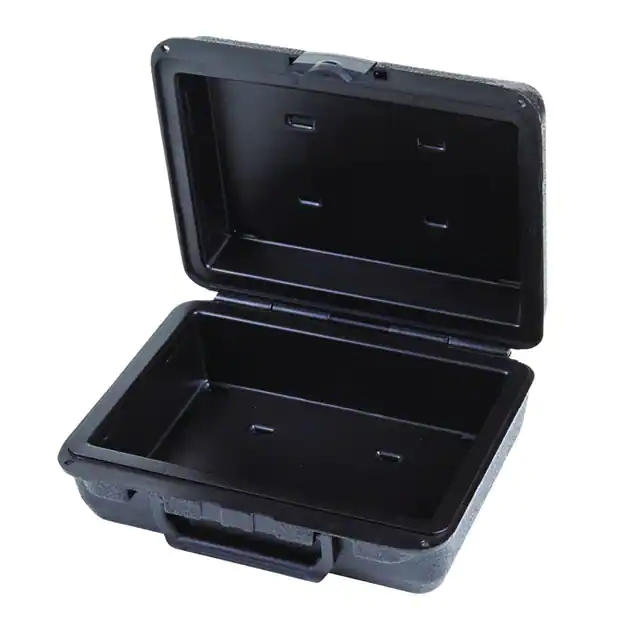

50190CASE PLAS BLACK 10.13"L X 8.13"W |
0 |
|
规格书 |
Infinity | Bulk | Active | Case | 10.125" L x 8.125" W (257.18mm x 206.38mm) | 4.000" (101.60mm) | 82.3in² (531cm²) | Hinged Door, Lid | Plastic, Conductive | Black | - | - | - | - |
|
PBB-11819-3BOX PLASTIC GRAY 7.09"L X 3.15"W |
0 |
|
规格书 |
PBB | Bulk | Active | Box | 7.087" L x 3.150" W (180.00mm x 80.00mm) | 3.346" (85.00mm) | 22.3in² (144cm²) | Cover Included | Plastic, Fiberglass/Polyester, Polycarbonate | Gray | 0.118" (3.00mm) | Pushbutton Holes - 3 | IP67, NEMA 4X,6, UL-508 | UL94 V-0 |
|

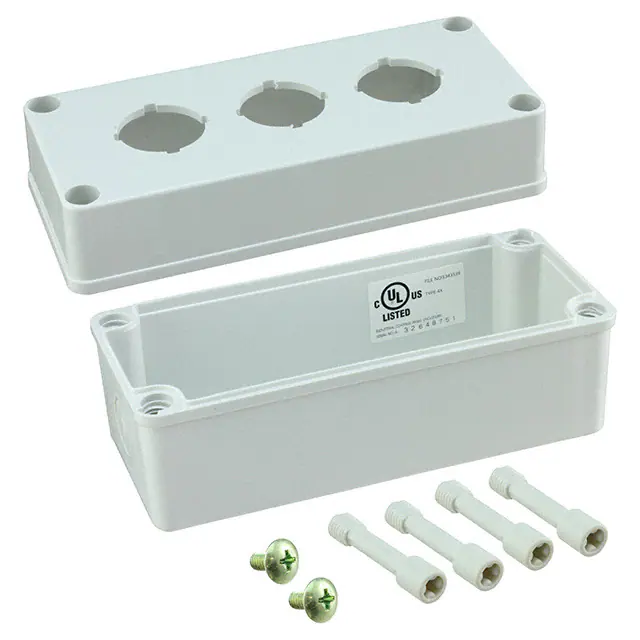

PBB-11835-3BOX PLASTIC GRAY 7.09"L X 3.15"W |
0 |
|
规格书 |
PBB | Bulk | Active | Box | 7.087" L x 3.150" W (180.00mm x 80.00mm) | 3.346" (85.00mm) | 22.3in² (144cm²) | Cover Included | Plastic, Fiberglass/Polyester, Polycarbonate | Gray | 0.118" (3.00mm) | Pushbutton Holes - 3 | IP67, NEMA 4X,6, UL-508 | UL94 V-0 |
|
|
1455NF1601BOX ALUM CLEAR 6.3"L X 4.06"W |
0 |
|
规格书 |
1455 | Bulk | Active | Box | 6.299" L x 4.055" W (159.99mm x 103.00mm) | 2.090" (53.09mm) | 25.6in² (165cm²) | End Panel(s) | Aluminum | Clear | 0.059" (1.50mm) | - | - | - |
|
17770601HSG PPE BLK 2.480"L X 2.835"W |
0 |
|
规格书 |
NGS | Bulk | Active | Housing | 2.835" L x 2.480" W (72.00mm x 63.00mm) | 2.835" (72.00mm) | 7.03in² (45.4cm²) | Open End(s) | Plastic, PPE | Black | - | Flame Retardant, Card Guides | IP40, IP65 | UL94 V-1 |
|
BOS 804BOX ABS BLACK 7.72"L X 3.94"W |
0 |
|
规格书 |
Databoss | Bulk | Active | Box | 7.717" L x 3.937" W (196.00mm x 100.00mm) | 1.575" (40.00mm) | 30.4in² (196cm²) | Hand Held, Split Sides | Plastic, ABS | Black | 0.098" (2.49mm) | PCB Supports | IP40 | UL94 HB |
|

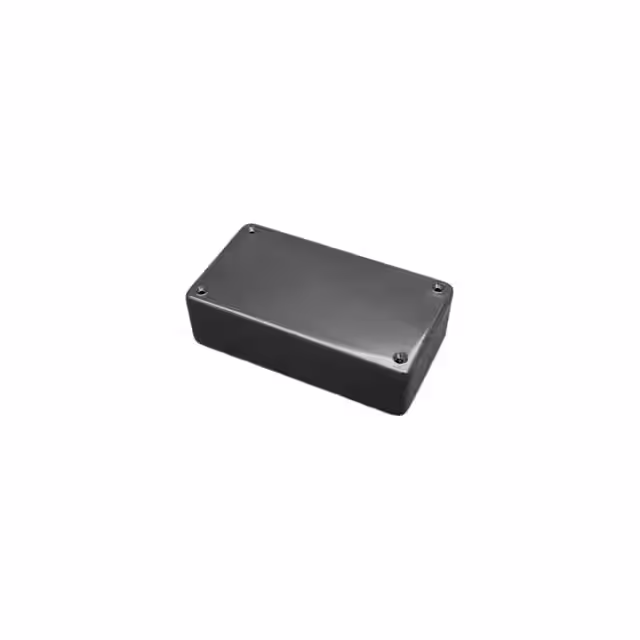

1591RMBKBOX ABS BLACK 3.34"L X 2.21"W |
0 |
|
规格书 |
1591 | Bulk | Active | Box | 3.339" L x 2.205" W (84.80mm x 56.00mm) | 1.023" (25.98mm) | 7.36in² (47.5cm²) | Cover Included | Plastic, ABS | Black | 0.079" (2.01mm) | Card Guides, Flame Retardant | IP54 | UL94 V-0 |
|
093,ALBOX ABS ALMOND 9.5"L X 6.34"W |
0 |
|
规格书 |
S | Bulk | Active | Box | 9.500" L x 6.340" W (241.30mm x 161.04mm) | 1.900" (48.26mm) | 60.2in² (388cm²) | Cover Included, Hand Held | Plastic, ABS | Almond | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
|

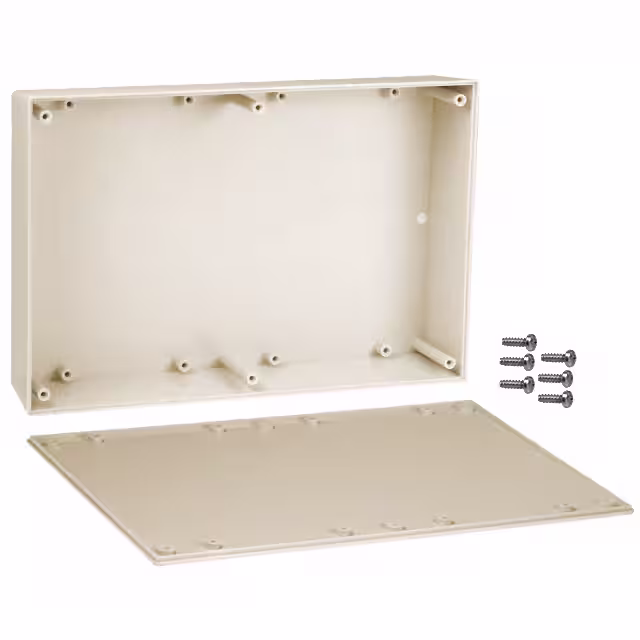

093I,ALBOX ABS ALMOND 9.5"L X 6.34"W |
0 |
|
规格书 |
S | Bulk | Active | Box | 9.500" L x 6.340" W (241.30mm x 161.04mm) | 1.900" (48.26mm) | 60.2in² (388cm²) | Cover Included, Hand Held | Plastic, ABS | Almond | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
|
601111210BOX PLASTIC GRAY 4.33"L X 4.33"W |
0 |
|
规格书 |
ECO | Bulk | Active | Box | 4.331" L x 4.331" W (110.00mm x 110.00mm) | 3.543" (90.00mm) | 18.7in² (121cm²) | Cover Included | Plastic, Polystyrene | Gray | 0.118" (3.00mm) | Flame Retardant, PCB Supports, Watertight | IP66, NEMA 4,4X | UL94 HB |
|
|
6678CBA818 COMPARTMENTED BOX |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
|
|
6674CBA806 COMPARTMENTED BOX |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
|
|
125-410BOX PLASTIC GRAY |
0 |
|
- |
TK | Bulk | Obsolete | Box | - | 2.240" (56.90mm) | - | Cover Included, Hand Held | Plastic, Polycarbonate | Gray | - | - | IP66, NEMA 4X | UL94 V-2 |
|
|
106-005BOX PLASTIC 5.12"L X 5.12"W |
0 |
|
- |
TK | Bulk | Active | Box | 5.120" L x 5.120" W (130.05mm x 130.05mm) | 2.950" (74.93mm) | - | Cover Included, Hand Held | Plastic, Polystyrene | Gray, Clear Cover/Door | - | - | IP66, NEMA 4X | UL94 HB |
|
|
106-010BOX PLASTIC TRN |
0 |
|
- |
TK | Bulk | Active | Box | - | 2.240" (56.90mm) | - | Cover Included, Hand Held | Plastic, Polystyrene | Transparent | - | - | IP66, NEMA 4X | UL94 HB |
|
|
106-509BOX PLASTIC 5.12"L X 3.7"W |
0 |
|
- |
TK | Bulk | Active | Box | 5.120" L x 3.700" W (130.05mm x 93.98mm) | 3.190" (81.03mm) | - | Cover Included, Hand Held | Plastic, Polystyrene | Gray, Clear Cover/Door | - | - | IP66, NEMA 4X | UL94 HB |
|
|
111-005BOX PLASTIC TRN 5.12"L X 5.12"W |
0 |
|
- |
TK | Bulk | Active | Box | 5.120" L x 5.120" W (130.05mm x 130.05mm) | 3.900" (99.06mm) | - | Cover Included, Hand Held | Plastic, Polystyrene | Transparent | - | - | IP66, NEMA 4X | UL94 HB |
