箱体
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
111-503BOX PLASTIC 3.7"L X 3.7"W |
0 |
|
- |
TK | Bulk | Active | Box | 3.700" L x 3.700" W (93.98mm x 93.98mm) | 3.190" (81.03mm) | - | Cover Included, Hand Held | Plastic, Polystyrene | Gray, Clear Cover/Door | - | - | IP66, NEMA 4X | UL94 HB |
|
|
115-909BOX PLASTIC GRAY 5.12"L X 3.7"W |
0 |
|
- |
TK | Bulk | Active | Box | 5.120" L x 3.700" W (130.05mm x 93.98mm) | 3.190" (81.03mm) | - | Cover Included, Hand Held | Plastic, Polystyrene | Gray | - | - | IP66, NEMA 4X | UL94 HB |
|
|
116-004BOX PLASTIC 4.33"L X 4.33"W |
0 |
|
- |
TK | Bulk | Active | Box | 4.330" L x 4.330" W (109.98mm x 109.98mm) | 3.500" (88.90mm) | - | Cover Included, Hand Held | Plastic, Polystyrene | Gray, Clear Cover/Door | - | - | IP66, NEMA 4X | UL94 HB |
|
|
116-503BOX PLASTIC 3.7"L X 3.7"W |
0 |
|
- |
TK | Bulk | Active | Box | 3.700" L x 3.700" W (93.98mm x 93.98mm) | 3.190" (81.03mm) | - | Cover Included, Hand Held | Plastic, Polystyrene | Gray, Clear Cover/Door | - | - | IP66, NEMA 4X | UL94 HB |
|
|
1343032HOUSING SET |
0 |
|
- |
ME | Bulk | Active | Housing | 4.474" L x 0.693" W (113.65mm x 17.60mm) | 3.898" (99.00mm) | 3.10in² (20.0cm²) | Cover Included | Plastic, Polyamide | Light Gray | - | - | IP20 | UL94 V-0 |
|

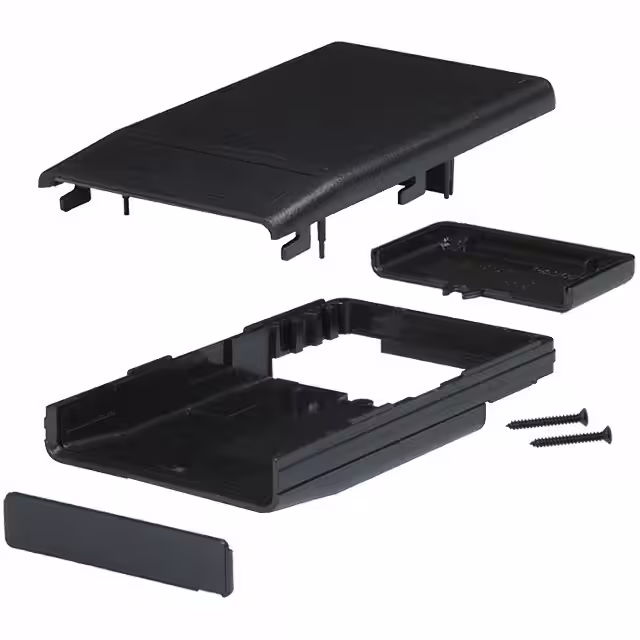

M6EMI,BKBOX ABS BLACK 4.15"L X 2.4"W |
0 |
|
规格书 |
M | Bulk | Active | Box | 4.150" L x 2.400" W (105.41mm x 60.96mm) | 0.850" (21.59mm) | 9.96in² (64.3cm²) | Hand Held, Split Sides and End Panel(s) | Plastic, ABS, EMI | Black | 0.100" (2.54mm) | Battery Compartment, 9V and AA, EMI Shielded | IP40 | - |
|
|
CU-3285-MBBOX ABS BLACK 8.25"L X 5.151"W |
0 |
|
规格书 |
Utilibox Style A | Bulk | Active | Box | 8.246" L x 5.151" W (209.45mm x 130.84mm) | 3.125" (79.38mm) | 42.4in² (274cm²) | Cover Included | Plastic, ABS | Black | 0.130" (3.30mm) | Mounting Flange, PCB Supports | - | UL94 5VA |
|
|
127-902BOX PLASTIC GRAY |
0 |
|
- |
TK | Bulk | Active | Box | - | 3.190" (81.03mm) | - | Cover Included, Hand Held | Plastic, Polycarbonate | Gray | - | - | IP66, NEMA 4X | UL94 V-2 |
|

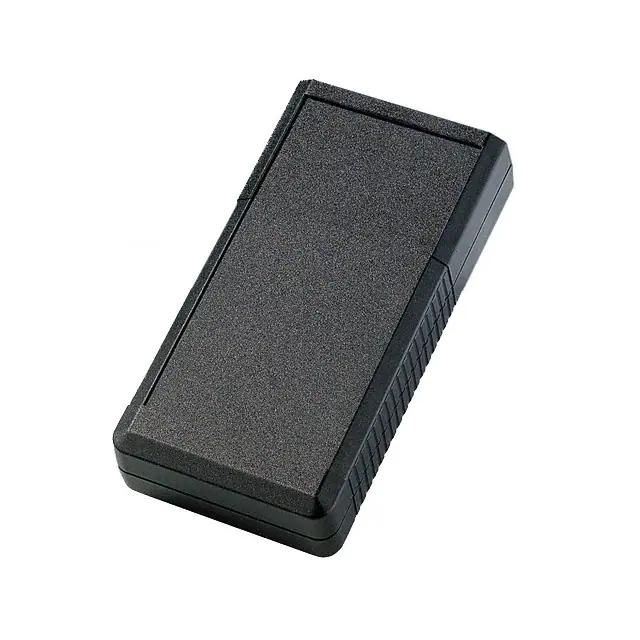

BOS 758BOX ABS BLACK 6.18"L X 3.31"W |
0 |
|
规格书 |
Databoss | Bulk | Active | Box | 6.181" L x 3.307" W (157.00mm x 84.00mm) | 1.181" (30.00mm) | 20.4in² (132cm²) | Hand Held, Split Sides | Plastic, ABS | Black | 0.197" (5.00mm) | Battery Compartment, 9V, PCB Supports | IP40 | UL94 HB |
|

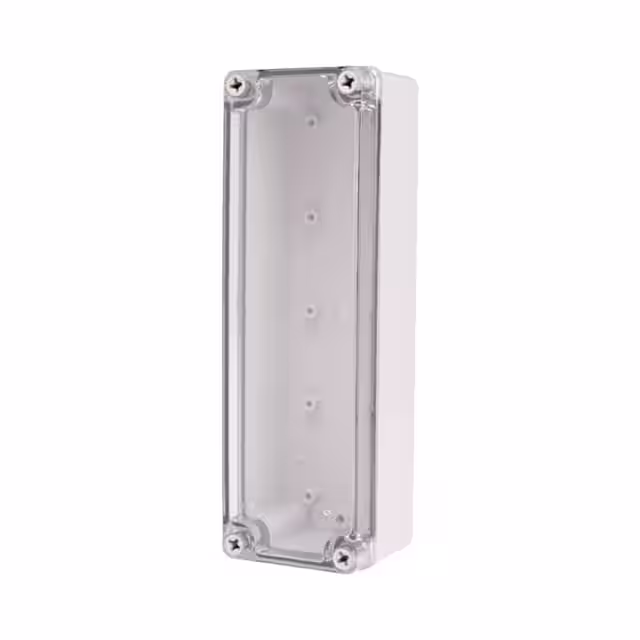

BC-CTS-082507BOX PLASTIC CLR 9.84"L X 3.15"W |
5 |
|
规格书 |
S | Bulk | Active | Box | 9.843" L x 3.150" W (250.00mm x 80.00mm) | 2.756" (70.00mm) | 31.0in² (200cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray, Clear Cover | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|

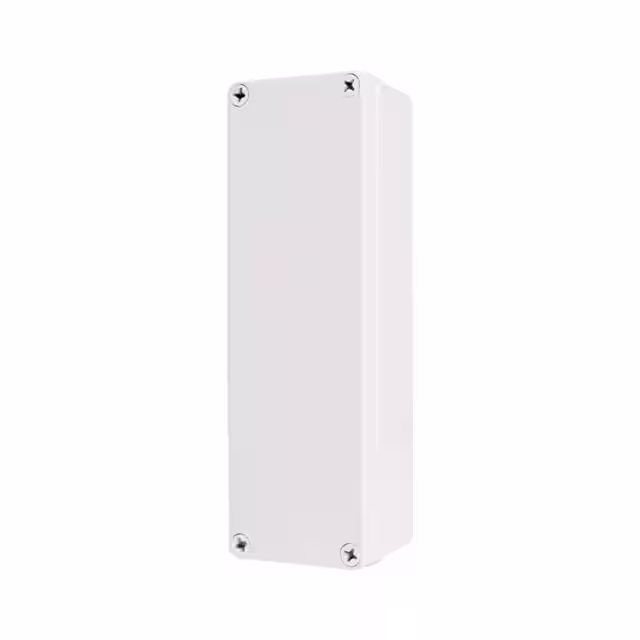

BC-CGS-082507BOX PLAS LGT GRY 9.84"L X 3.15"W |
2 |
|
规格书 |
S | Bulk | Active | Box | 9.843" L x 3.150" W (250.00mm x 80.00mm) | 2.756" (70.00mm) | 31.0in² (200cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
600913220BOX PLASTIC 5.12"L X 3.7"W |
0 |
|
规格书 |
ECO | Bulk | Active | Box | 5.118" L x 3.701" W (130.00mm x 94.00mm) | 3.189" (81.00mm) | 18.9in² (122cm²) | Cover Included | Plastic, Polystyrene | Gray, Clear Cover/Door | 0.118" (3.00mm) | Flame Retardant, PCB Supports, Watertight | IP66, NEMA 4,4X | UL94 HB |
|

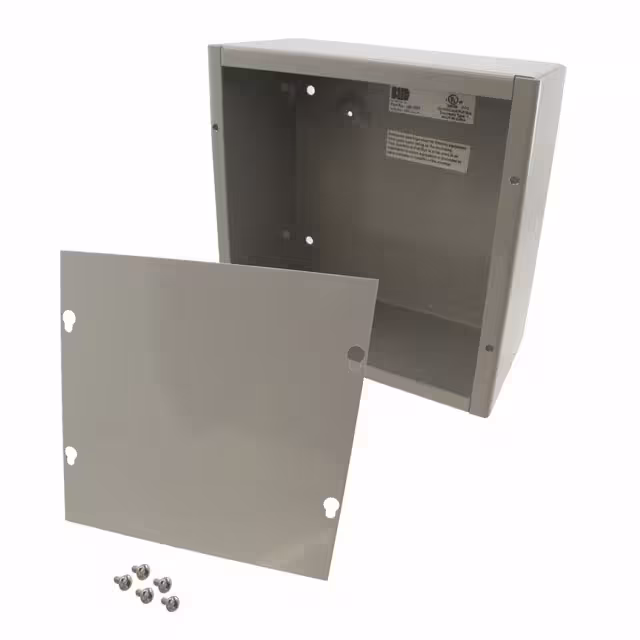

JB-3957BOX STEEL GRAY 8"L X 4"W |
0 |
|
规格书 |
JB | Box | Active | Box | 8.000" L x 4.000" W (203.20mm x 101.60mm) | 8.000" (203.20mm) | 32.0in² (206cm²) | Cover Included | Metal, Steel | Gray | 16 Gauge | Wall Mount | NEMA 1 | - |
|
|
PBB-11833-2BOX PLASTIC GRAY 5.12"L X 3.15"W |
0 |
|
规格书 |
PBB | Bulk | Active | Box | 5.118" L x 3.150" W (130.00mm x 80.00mm) | 3.346" (85.00mm) | 16.1in² (104cm²) | Cover Included | Plastic, Fiberglass/Polyester, Polycarbonate | Gray | 0.118" (3.00mm) | Pushbutton Holes - 2 | IP67, NEMA 4X,6, UL-508 | UL94 V-0 |
|
BOS 753BOX ABS BLACK 6.18"L X 3.31"W |
0 |
|
规格书 |
Databoss | Bulk | Active | Box | 6.181" L x 3.307" W (157.00mm x 84.00mm) | 1.181" (30.00mm) | 20.4in² (132cm²) | Hand Held, Split Sides | Plastic, ABS | Black | 0.197" (5.00mm) | PCB Supports | IP40 | UL94 HB |
|
1714AA,BKENCLOSURE ABS 6.88"L X 4.88"W |
0 |
|
规格书 |
- | Box | Active | Enclosure | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 1.500" (38.10mm) | 33.6in² (217cm²) | Cover Included, Hand Held | Plastic, ABS | Black | 0.100" (2.54mm) | - | IP67, NEMA 4X, 12, 13 | UL94 HB |
|
171RI4AA,BKENCLOSURE ABS 6.88"L X 4.88"W |
0 |
|
规格书 |
- | Box | Active | Enclosure | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 1.500" (38.10mm) | 33.6in² (217cm²) | Cover Included, Hand Held | Plastic, ABS | Black | 0.100" (2.54mm) | - | IP67, NEMA 4X, 12, 13 | UL94 HB |
|
171R4AA,BKENCLOSURE ABS 6.88"L X 4.88"W |
0 |
|
规格书 |
- | Box | Active | Enclosure | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 1.500" (38.10mm) | 33.6in² (217cm²) | Cover Included, Hand Held | Plastic, ABS | Black | 0.100" (2.54mm) | - | IP67, NEMA 4X, 12, 13 | UL94 HB |
|
|
0936040087BOX ALUM GRAY 3.86"L X 2.52"W |
0 |
|
规格书 |
GWconnect 93604 | Bulk | Active | Box | 3.858" L x 2.520" W (98.00mm x 64.00mm) | 1.378" (35.00mm) | 9.72in² (62.7cm²) | Cover Included | Metal, Aluminum | Gray | 0.118" (3.00mm) | PCB Supports | IP66, IP69 | - |
|
153I9V,BKBOX ABS BLACK 5.62"L X 3.25"W |
0 |
|
规格书 |
- | Box | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 2.500" (63.50mm) | 18.3in² (118cm²) | Hand Held, Split Sides | Plastic, ABS | Black | 0.100" (2.54mm) | - | IP40, NEMA 1 | UL94 HB |
