上传BOM
箱体
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1002720000BOX S STL 7.48"L X 3.94"W |
1 |
|
规格书 |
Klippon® STB | Bulk | Active | Box | 7.480" L x 3.937" W (190.00mm x 100.00mm) | 7.480" (190.00mm) | 29.4in² (190cm²) | Cover Included | Metal, Stainless Steel | Unpainted | 0.059" (1.50mm) | Mounting Flange, Sealed, Wall Mount | IP66 | - |
|
1058830000KLIPPON STB 2 SS E |
1 |
|
规格书 |
- | Bulk | Active | Enclosure | 5.906" L x 3.543" W (150.00mm x 90.00mm) | 5.906" (150.00mm) | 20.9in² (135cm²) | Cover Included | Metal, Stainless Steel | Gray | 0.059" (1.50mm) | - | IP66, NEMA 4,4X | - |
|
EN4SD242420GYBOX STEEL GRAY 24"L X 24"W |
1 |
|
规格书 |
Eclipse | Box | Active | Box | 24.000" L x 24.000" W (609.60mm x 609.60mm) | 20.000" (508.00mm) | 576in² (3716cm²) | Hinged Door, Lid | Metal, Steel | Gray | 14 Gauge | Stainless Steel Hinges | IP66, NEMA 3R,4,12, UL-508 | - |
|

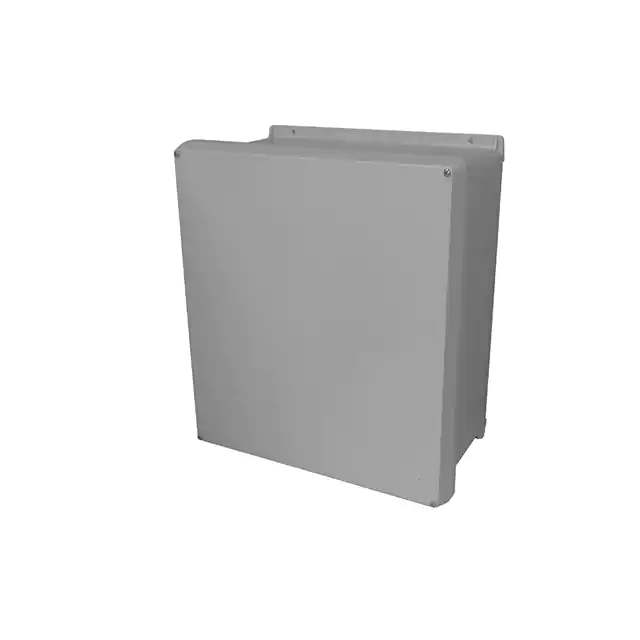

VJ2016WENCLOSURE FIBER 21.32"LX17.32"W |
0 |
|
规格书 |
VJ | Box | Active | Enclosure | 21.320" L x 17.320" W (541.53mm x 439.93mm) | 11.570" (293.88mm) | 369in² (2382cm²) | Cover Included | Fiberglass/Polyester | - | - | - | NEMA 4X | - |
|
PZNWE14ENCLOSURE FIBER 6.25"L X 13.5"W |
0 |
|
规格书 |
PanZone® | Bulk | Active | Enclosure | 6.250" L x 13.500" W (158.75mm x 342.90mm) | 15.500" (393.70mm) | 84.3in² (544cm²) | Cover Included | Fiberglass | Gray | - | - | - | - |
|
1418E8BOX STEEL GRAY 24"L X 20"W |
1 |
|
规格书 |
1418 | Box | Active | Box | 24.000" L x 20.000" W (609.60mm x 508.00mm) | 8.000" (203.20mm) | 480in² (3097cm²) | Hinged Door, Lid | Metal, Steel | Gray | 14 Gauge | Interior Panels, Mounting Flange | IP54, JIC EGP-1-1967, NEMA 12,13, UL-508 | - |
|
|
MAS0505030R5ENCLOSURE STL 19.69"L X 19.69"W |
1 |
|
规格书 |
MAS | Box | Active | Enclosure | 19.685" L x 19.685" W (500.00mm x 500.00mm) | 11.811" (300.00mm) | 388in² (2500cm²) | Hinged Door | Metal, Steel | Light Gray | 0.591" (15.00mm) | - | IP66, NEMA 4,12,13 | - |
|
|
1305970000KLIPPON POK 404012 |
1 |
|
规格书 |
- | Box | Active | Enclosure | 15.748" L x 4.724" W (400.00mm x 120.00mm) | 15.945" (405.00mm) | 74.4in² (480cm²) | Cover Included | Fiberglass/Polyester | Gray | 0.236" (6.00mm) | - | IP66, NEMA 4,4X | UL94 V-0 |
|
1058840000BOX S STL 5.91"L X 3.54"W |
1 |
|
规格书 |
Klippon® STB | Bulk | Active | Box | 5.906" L x 3.543" W (150.00mm x 90.00mm) | 7.480" (190.00mm) | 20.9in² (135cm²) | Cover Included | Metal, Stainless Steel | Unpainted | 0.059" (1.50mm) | Mounting Flange, Sealed, Wall Mount | IP66 | - |
|
EN4SD24208WLGBOX STEEL GRAY 24"L X 20"W |
1 |
|
规格书 |
Eclipse | Box | Active | Box | 24.000" L x 20.000" W (609.60mm x 508.00mm) | 8.000" (203.20mm) | 480in² (3097cm²) | Hinged Door, Lid | Metal, Steel | Gray | 16 Gauge | Stainless Steel Hinges, Window | IP66, NEMA 3R,4,12, UL-508 | - |
|
1194560000BOX S STL 9.02"L X 5.98"W |
0 |
|
规格书 |
Klippon® TB | Bulk | Active | Box | 9.016" L x 5.984" W (229.00mm x 152.00mm) | 5.118" (130.00mm) | 54.0in² (348cm²) | Hinged Door, Lid | Metal, Stainless Steel | Unpainted | 0.059" (1.50mm) | Lockable, Mounting Flange, Sealed, Wall Mount | IP66, IP67 | - |
|
|
MAS0705026R5ENCLOSURE STL 27.56"L X 19.69"W |
1 |
|
规格书 |
MAS | Box | Active | Enclosure | 27.559" L x 19.685" W (700.00mm x 500.00mm) | 10.236" (260.00mm) | 543in² (3500cm²) | Hinged Door | Metal, Steel | Light Gray | 0.591" (15.00mm) | - | IP66, NEMA 4,12,13 | - |
|
|
8018139JB JUNCTION BOX, WIDTH:250 MMHEI |
1 |
|
规格书 |
JB | Box | Active | Junction Box | 9.840" L x 7.870" W (249.94mm x 199.90mm) | 11.800" (299.72mm) | 77.4in² (499cm²) | Hinged Door | Metal, Stainless Steel | Silver | 0.059" (1.50mm) | - | IP66, NEMA 4X | - |
|
|
NB181608-10FENCL FRP 18X16X8" W/DUAL FANS & |
1 |
|
- |
NB | Bag | Active | Enclosure | 19.550" L x 17.550" W (496.57mm x 445.77mm) | 10.000" (254.00mm) | 343in² (2213cm²) | Hinged Door | Fiberglass/Polyester | Light Gray | 0.098" (2.50mm) | - | IP24, NEMA 3R,3RX | - |
|
|
1058850000BOX S STL 7.48"L X 3.94"W |
1 |
|
规格书 |
Klippon® STB | Bulk | Active | Box | 7.480" L x 3.937" W (190.00mm x 100.00mm) | 7.480" (190.00mm) | 29.4in² (190cm²) | Cover Included | Metal, Stainless Steel | Unpainted | 0.059" (1.50mm) | Mounting Flange, Sealed, Wall Mount | IP66 | - |
|
1194810000BOX S STL 13.78"L X 10.24"W |
1 |
|
规格书 |
Klippon® TB | Bulk | Active | Box | 13.780" L x 10.236" W (350.00mm x 260.00mm) | 5.906" (150.00mm) | 141in² (910cm²) | Hinged Door, Lid | Metal, Stainless Steel | Unpainted | 0.059" (1.50mm) | Lockable, Mounting Flange, Sealed, Wall Mount | IP66, IP67 | - |
|
|
9502820000TBF 60/37/18 7035 |
1 |
|
规格书 |
- | Box | Active | Enclosure | 14.646" L x 6.890" W (372.00mm x 175.00mm) | 23.740" (603.00mm) | 100.9in² (651cm²) | Cover Included | Fiberglass/Polyester | Gray | - | - | IP67 | UL94 HB |
|
|
9502840000TBF 49/30/21 TRSP |
1 |
|
规格书 |
- | Box | Active | Enclosure | 11.890" L x 8.268" W (302.00mm x 210.00mm) | 19.213" (488.00mm) | 98.3in² (634cm²) | Cover Included | Fiberglass/Polyester | Gray | - | - | IP66 | UL94 V-2 |
|
|
NB181608-10F-1ENCL FRP 18X16X8" W/85 DUAL-FAN |
1 |
|
- |
NB | Bag | Active | Enclosure | 19.550" L x 17.550" W (496.57mm x 445.77mm) | 10.000" (254.00mm) | 343in² (2213cm²) | Hinged Door | Fiberglass/Polyester | Light Gray | 0.098" (2.50mm) | - | IP24, NEMA 3R,3RX | UL94 5V |
|
|
1305950000KLIPPON POK 256012 |
1 |
|
规格书 |
- | Box | Active | Enclosure | 23.622" L x 4.724" W (600.00mm x 120.00mm) | 9.843" (250.00mm) | 112in² (720cm²) | Cover Included | Fiberglass/Polyester | Gray | 0.248" (6.29mm) | - | IP66, NEMA 4,4X | UL94 V-0 |
