箱体
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

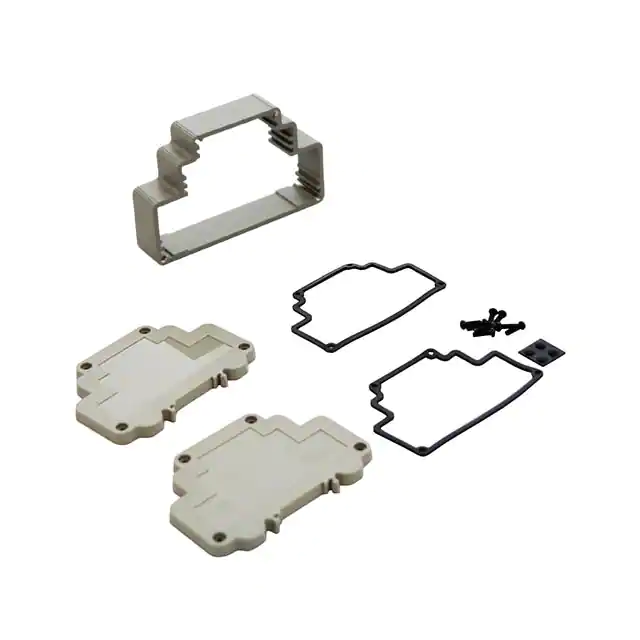

DMX-4776-GBOX ALUM GRAY 3.87"L X 1.08"W |
1 |
|
规格书 |
DMX | Bulk | Active | Box | 3.871" L x 1.079" W (98.33mm x 27.40mm) | 2.717" (69.01mm) | 4.18in² (27.0cm²) | End Panel(s) | Metal, Aluminum with Plastic, Polycarbonate Panels | Gray | 0.084" (2.13mm) | Card Guides, DIN Rail Mount, Sealing Gasket | IP66 | UL94 V-0 |
|

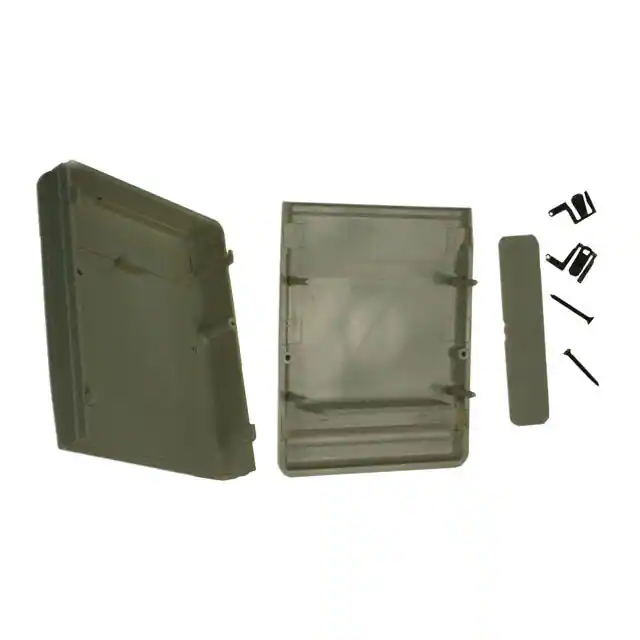

M4,ALBOX ABS ALMOND 2.8"L X 2.2"W |
1 |
|
规格书 |
M | Bulk | Active | Box | 2.800" L x 2.200" W (71.12mm x 55.88mm) | 0.710" (18.03mm) | 6.15in² (39.7cm²) | Hand Held, Split Sides and End Panel(s) | Plastic, ABS | Almond | 0.100" (2.54mm) | Battery Compartment, AA | IP40 | UL94 HB |
|
RBF33P06B08BENCLOSURE PLAS 3.23"L X 3.15"W |
1 |
|
规格书 |
RB | Bulk | Active | Enclosure | 3.230" L x 3.150" W (82.04mm x 80.01mm) | 1.380" (35.05mm) | 10.2in² (66cm²) | Cover Included | Plastic, Polycarbonate | Black | 0.120" (3.05mm) | - | IP67, NEMA 4 | - |
|
M6PC,ALBOX ABS ALMOND 4.15"L X 2.4"W |
0 |
|
规格书 |
M | Bulk | Active | Box | 4.150" L x 2.400" W (105.41mm x 60.96mm) | 0.850" (21.59mm) | 9.96in² (64.3cm²) | Hand Held, Split Sides and End Panel(s) | Plastic, ABS | Almond | 0.100" (2.54mm) | Battery Compartment, 9V and AA, Pocket Clip | IP40 | UL94 HB |
|
M6IND,BKBOX ABS BLACK 4.15"L X 2.4"W |
0 |
|
规格书 |
M | Bulk | Active | Box | 4.150" L x 2.400" W (105.41mm x 60.96mm) | 0.850" (21.59mm) | 9.96in² (64.3cm²) | Hand Held, Split Sides and End Panel(s) | Plastic, ABS | Black | 0.100" (2.54mm) | Battery Compartment, 9V and AA | IP40 | UL94 HB |
|

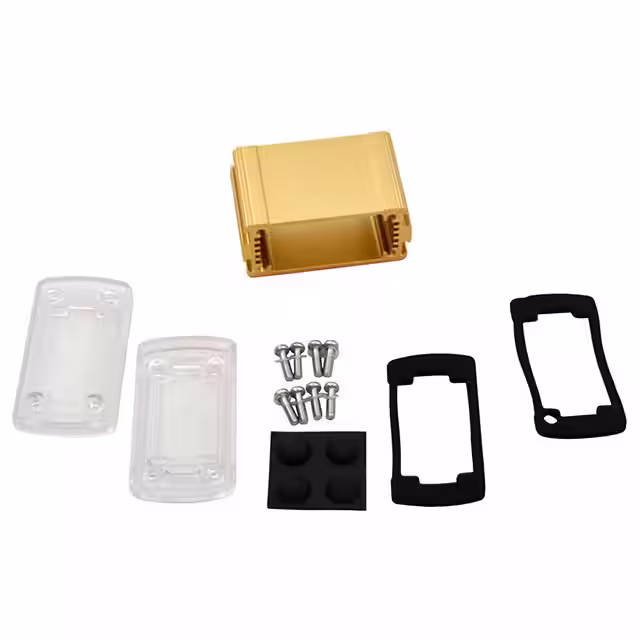

EXN-23350-GDPBOX ALUM CLR/GLD 1.93"LX2.71"W |
1 |
|
规格书 |
EXN | Bulk | Active | Box | 2.705" L x 1.929" W (68.70mm x 49.00mm) | 1.386" (35.20mm) | 5.21in² (33.6cm²) | End Panel(s) | Metal, Aluminum with Plastic, Polycarbonate Panels | Clear, Gold | 0.091" (2.30mm) | Card Guides, Sealing Gaskets | IP66 | UL94 V-0 |
|

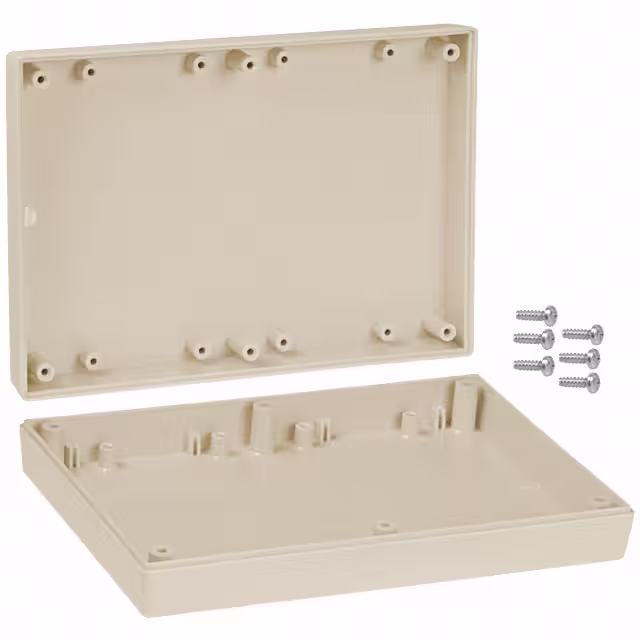

171,ALBOX ABS ALMOND 6.88"L X 4.88"W |
2 |
|
规格书 |
S | Bulk | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 1.500" (38.10mm) | 33.6in² (217cm²) | Hand Held, Split Sides | Plastic, ABS | Almond | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
|

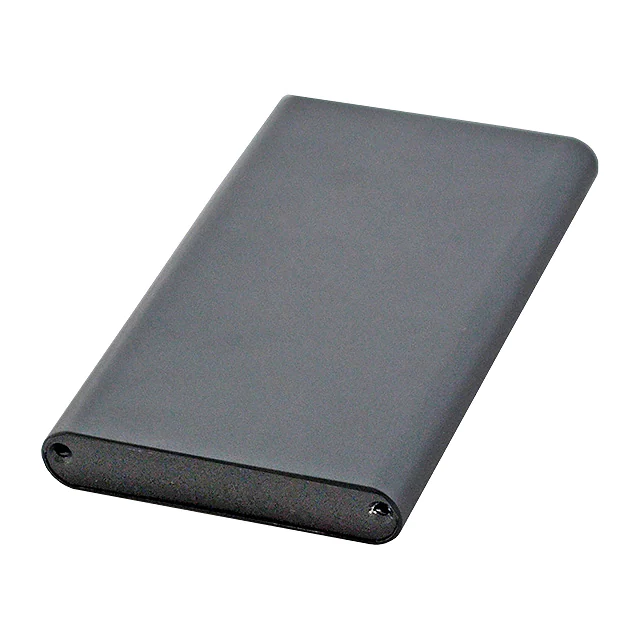

EXT-9162BOX ALUM BLACK 3.94"L X 2.24"W |
1 |
|
规格书 |
EXT | Bulk | Active | Box | 3.937" L x 2.244" W (100.00mm x 57.00mm) | 0.413" (10.50mm) | 8.83in² (57.0cm²) | End Panel(s) | Metal, Aluminum | Black | 0.029" (0.74mm) | Card Guides | - | - |
|
M8IND,BKBOX ABS BLACK 6.97"L X 2.4"W |
0 |
|
规格书 |
M | Bulk | Active | Box | 6.970" L x 2.400" W (177.04mm x 60.96mm) | 0.850" (21.59mm) | 16.7in² (108cm²) | Hand Held, Split Sides and End Panel(s) | Plastic, ABS | Black | 0.100" (2.54mm) | Battery Compartment, 9V and AA | IP40 | UL94 HB |
|
|
RBF33P06G08GENCLOSURE PLAS 3.23"L X 3.15"W |
4 |
|
规格书 |
RB | Bulk | Active | Enclosure | 3.230" L x 3.150" W (82.04mm x 80.01mm) | 1.380" (35.05mm) | 10.2in² (66cm²) | Cover Included | Plastic, Polycarbonate | Black | 0.120" (3.05mm) | - | IP67, NEMA 4 | - |
|
|
RBF53P06C10GENCLOSURE PLAS 4.72"L X 3.15"W |
1 |
|
规格书 |
RB | Bulk | Active | Enclosure | 4.720" L x 3.150" W (119.89mm x 80.01mm) | 1.590" (40.39mm) | 14.9in² (96cm²) | Cover Included | Plastic, Polycarbonate | Gray, Clear Cover/Door | 0.120" (3.05mm) | - | IP67, NEMA 4 | - |
|
0801730BOX PLASTIC GRN 2.95"L X 2.24"W |
4 |
|
规格书 |
- | Bulk | Active | Box | 2.953" L x 2.244" W (75.00mm x 57.00mm) | 1.772" (45.00mm) | 6.65in² (42.9cm²) | Cover Included | Plastic, Polystyrene | Green | - | - | - | - |
|
272,BKBOX ABS BLACK 6.88"L X 4.88"W |
5 |
|
规格书 |
S | Bulk | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 2.000" (50.80mm) | 33.6in² (217cm²) | Hand Held, Split Sides | Plastic, ABS | Black | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports | IP40, NEMA 1 | UL94 HB |
|
171AC,BKENCLOSURE ABS 6.88"L X 4.88"W |
0 |
|
规格书 |
- | Box | Active | Enclosure | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 1.500" (38.10mm) | 33.6in² (217cm²) | Cover Included, Hand Held | Plastic, ABS | Black | 0.100" (2.54mm) | - | IP67, NEMA 4X, 12, 13 | UL94 HB |
|
171IAC,BKENCLOSURE ABS 6.88"L X 4.88"W |
0 |
|
规格书 |
- | Box | Active | Enclosure | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 1.500" (38.10mm) | 33.6in² (217cm²) | Cover Included, Hand Held | Plastic, ABS | Black | 0.100" (2.54mm) | - | IP67, NEMA 4X, 12, 13 | UL94 HB |
|

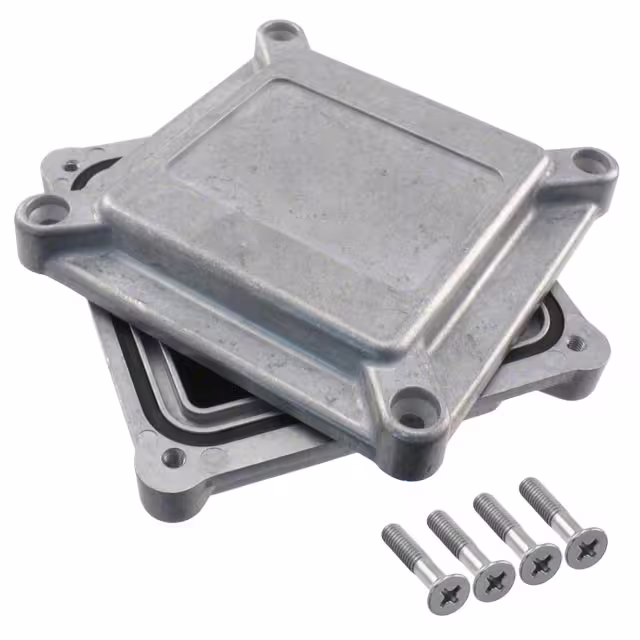

IPS-3901BOX ALUM NATURAL 3.79"L X 3.79"W |
0 |
|
规格书 |
IPS | Bulk | Active | Box | 3.787" L x 3.787" W (96.19mm x 96.19mm) | 1.772" (45.00mm) | 14.2in² (92cm²) | Cover Included | Metal, Aluminum | Natural | 0.098" (2.49mm) | PCB Supports, Sealed | IP67, NEMA 1,2,4,4X,12,13 | - |
|
|
RBF33P06C28GENCLOSURE PLAS 3.23"L X 3.15"W |
1 |
|
规格书 |
RB | Bulk | Active | Enclosure | 3.230" L x 3.150" W (82.04mm x 80.01mm) | 3.350" (85.09mm) | 10.2in² (66cm²) | Cover Included | Plastic, Polycarbonate | Gray, Clear Cover/Door | 0.120" (3.05mm) | - | IP67, NEMA 4 | - |
|

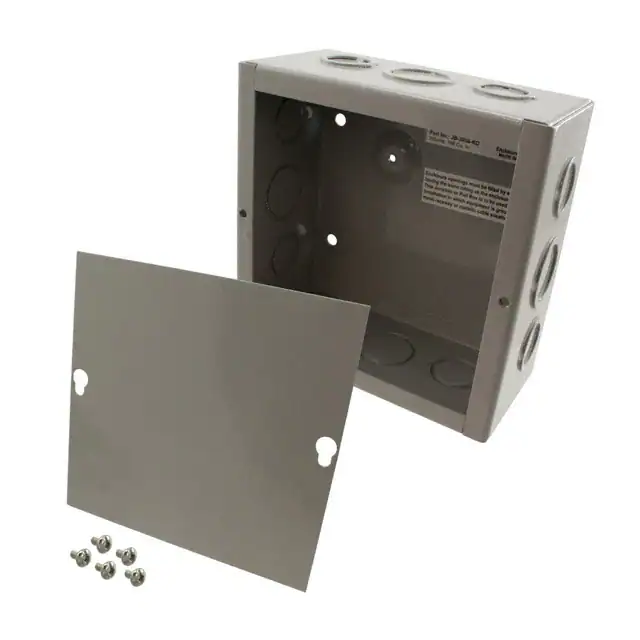

JB3945KOBOX STEEL GRAY 6"L X 3.5"W |
1 |
|
规格书 |
JB | Box | Active | Box | 6.000" L x 3.500" W (152.40mm x 88.90mm) | 6.000" (152.40mm) | 21.0in² (135cm²) | Cover Included | Metal, Steel | Gray | 16 Gauge | Knockouts, Wall Mount | NEMA 1 | - |
|
173R4AA,BKENCLOSURE ABS 6.88"L X 4.88"W |
1 |
|
规格书 |
- | Box | Active | Enclosure | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 2.500" (63.50mm) | 33.6in² (217cm²) | Cover Included, Hand Held | Plastic, ABS | Black | 0.100" (2.54mm) | - | IP67, NEMA 4X, 12, 13 | UL94 HB |
|
172CAC,BKENCLOSURE ABS 6.88"L X 4.88"W |
0 |
|
规格书 |
- | Box | Active | Enclosure | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 2.000" (50.80mm) | 33.6in² (217cm²) | Cover Included, Hand Held | Plastic, ABS | Black, Clear Cover/Door | 0.100" (2.54mm) | - | IP67, NEMA 4X, 12, 13 | UL94 HB |
