上传BOM
箱体
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

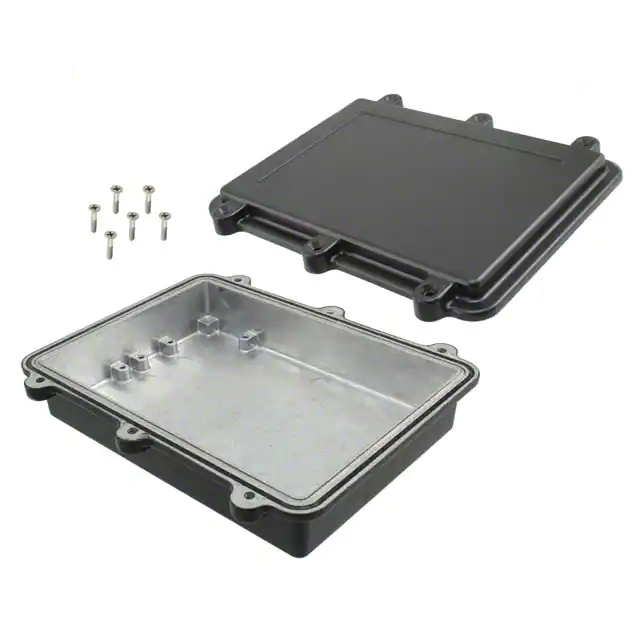

ANS-3817BOX ALUM NATURAL 7.87"L X 5.91"W |
2 |
|
规格书 |
ANS | Bulk | Active | Box | 7.874" L x 5.906" W (200.00mm x 150.00mm) | 1.969" (50.00mm) | 46.5in² (300cm²) | Cover Included | Metal, Aluminum | Natural | 0.098" (2.49mm) | EMI Shielded, PCB Supports | IP67, NEMA 1,2,4,4X,12,13 | - |
|

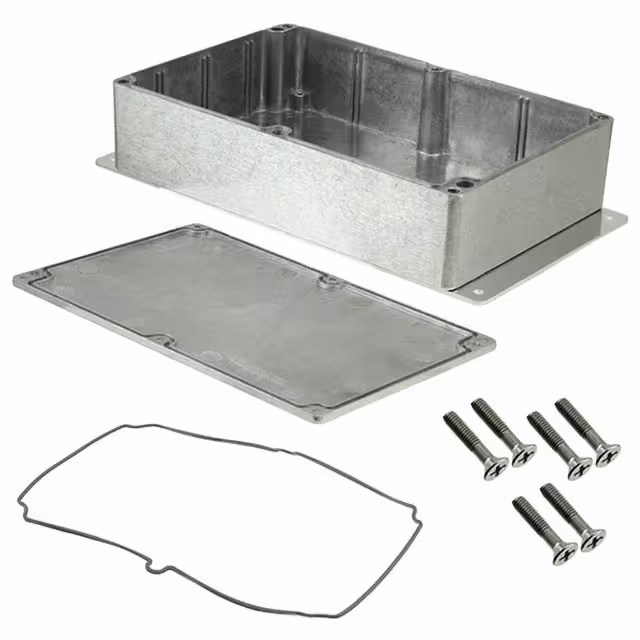

AN-2807-ABOX ALUM NATURAL 8.76"L X 5.76"W |
3 |
|
规格书 |
AN-A | Bulk | Active | Box | 8.764" L x 5.758" W (222.61mm x 146.25mm) | 2.177" (55.30mm) | 50.5in² (326cm²) | Cover Included | Metal, Aluminum | Natural | 0.120" (3.05mm) | Card Guides, Mounting Flange, PCB Supports, Watertight | IP68, NEMA 4X,6,6P,12,13 | - |
|
5203BOX ALUM UNPAINTED 6"L X 3"W |
1 |
|
规格书 |
Size L | Bulk | Active | Box | 6.000" L x 3.000" W (152.40mm x 76.20mm) | 1.670" (42.42mm) | 18.0in² (116cm²) | Cover Included | Metal, Aluminum | Unpainted | - | Card Guides, EMI Shielded | - | - |
|
ASG8X8X6NKJUNCTION BOX STL 7.99"L X 7.99"W |
0 |
|
规格书 |
- | Bulk | Active | Junction Box | 7.992" L x 7.992" W (203.00mm x 203.00mm) | 5.984" (152.00mm) | 63.9in² (412cm²) | Cover Included | Metal, Steel | Gray | - | Wall Mount | IP30, NEMA 1, UL-50, 50E | - |
|

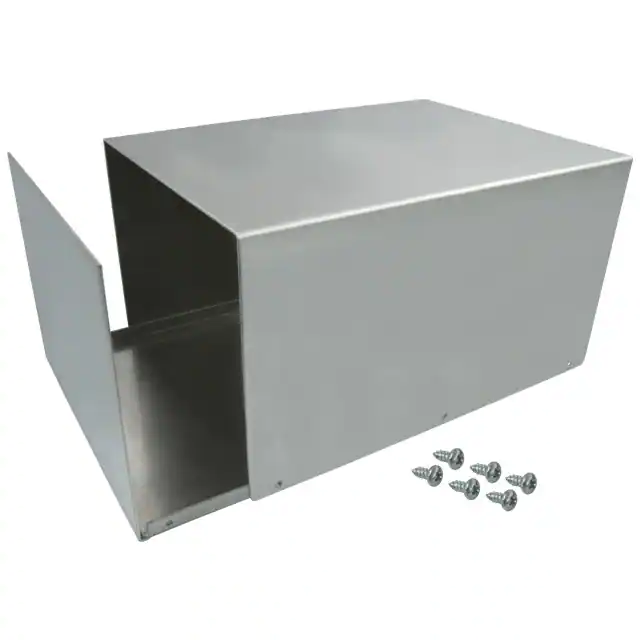

CR-864 PLNCHASSIS ALUM UNPAINTED 8"L X 6"W |
1 |
|
规格书 |
Crown Royal | Bulk | Active | Chassis | 8.000" L x 6.000" W (203.20mm x 152.40mm) | 4.500" (114.30mm) | 48.0in² (310cm²) | U Shaped Pieces | Metal, Aluminum | Unpainted | 0.050" (1.27mm) | - | - | - |
|
35107046BOX ABS WHITE 8.47"L X 5.91"W |
4 |
|
规格书 |
BoPad | Bag | Active | Box | 8.465" L x 5.906" W (215.00mm x 150.00mm) | 2.087" (53.00mm) | 50.2in² (324cm²) | Cover Included, Hand Held | Plastic, ABS | White | 0.630" (16.00mm) | - | IP40 | - |
|
35107045BOX ABS BLACK 8.47"L X 5.91"W |
4 |
|
规格书 |
BoPad | Bag | Active | Box | 8.465" L x 5.906" W (215.00mm x 150.00mm) | 2.087" (53.00mm) | 50.2in² (324cm²) | Cover Included, Hand Held | Plastic, ABS | Black | 0.630" (16.00mm) | - | IP40 | - |
|
UNC 4-6-10 PLAINCABINET ALUM UNPTD 10"L X 6"W |
1 |
|
- |
Uni-Cab | Bulk | Active | Cabinet | 10.000" L x 6.000" W (254.00mm x 152.40mm) | 4.000" (101.60mm) | 60.0in² (387cm²) | Slanted Top | Metal, Aluminum | Unpainted | 0.090" (2.29mm) | Separate Panel or Cover Thickness | - | - |
|
Q1286ABDBOX ABS GRAY 4.72"L X 3.15"W |
2 |
|
规格书 |
- | Bulk | Active | Box | 4.724" L x 3.150" W (120.00mm x 80.00mm) | 2.205" (56.00mm) | 14.9in² (96cm²) | Cover Included | Plastic, ABS | Gray | 0.118" (3.00mm) | PCB Supports, Sealing Gasket, Wall Mount | IP67, NEMA 4,4X,6,12,13, UL-508A | - |
|
00123224BOX ALUM GRAY 6.26"L X 5.04"W |
2 |
|
规格书 |
Bocube | Bag | Active | Box | 6.260" L x 5.039" W (159.00mm x 128.00mm) | 2.362" (60.00mm) | 31.5in² (203cm²) | Hinged Door, Lid | Metal, Aluminum | Gray | 0.374" (9.50mm) | - | IP69 | - |
|
2203328HOUSING PLSTC GRY 4.92"LX1.85"W |
2 |
|
规格书 |
UCS | Bulk | Active | Housing | 4.921" L x 1.850" W (125.00mm x 47.00mm) | 3.425" (87.00mm) | 9.10in² (58.7cm²) | Cover Included | Plastic, Polycarbonate | Gray | - | - | - | UL94 V-0 |
|
2203443HOUSING PLSTC GRY 4.92"LX1.85"W |
2 |
|
规格书 |
UCS | Bulk | Active | Housing | 4.921" L x 1.850" W (125.00mm x 47.00mm) | 3.425" (87.00mm) | 9.10in² (58.7cm²) | Cover Included | Plastic, Polycarbonate | Gray | - | - | - | UL94 V-0 |
|
2203329HOUSING PLSTC BLK 4.92"LX1.85"W |
1 |
|
规格书 |
UCS | Bulk | Active | Housing | 4.921" L x 1.850" W (125.00mm x 47.00mm) | 3.425" (87.00mm) | 9.10in² (58.7cm²) | Cover Included | Plastic, Polycarbonate | Black | - | - | - | UL94 V-0 |
|
1598RFBKBOX PLASTIC BLK 9.83"L X 6.27"W |
1 |
|
规格书 |
1598 | Bulk | Active | Box | 9.831" L x 6.270" W (249.71mm x 159.26mm) | 1.610" (40.89mm) | 61.5in² (397cm²) | Split Sides and End Panel(s) | ABS | Black | - | Card Guides, EMI Shielded, PCB Supports | IP54 | UL94 V-0 |
|

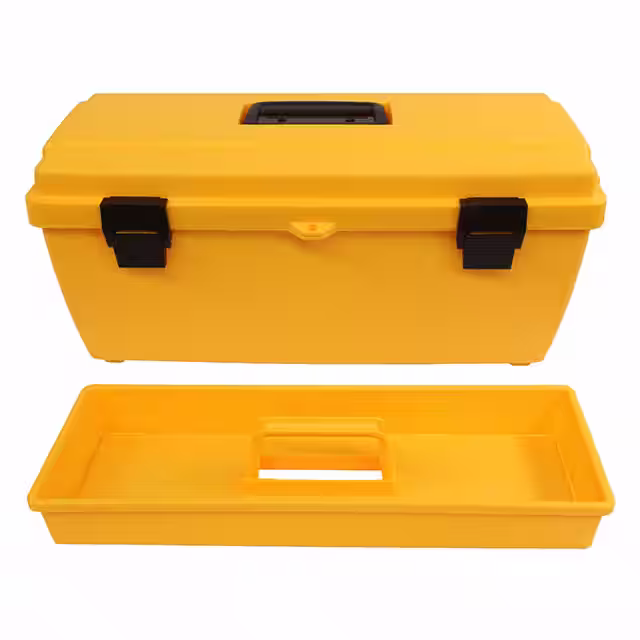

6757TYBOX PLAS BLK/YLW 20.25"LX8.87"W |
3 |
|
规格书 |
Utility | Bulk | Active | Box | 20.252" L x 8.874" W (514.40mm x 225.40mm) | 8.374" (212.70mm) | 180in² (1161cm²) | Hinged Door, Lid | Plastic, Copolymer Resin | Black, Yellow | - | Brass Hinges, Handles, Snap Latch, Tray | - | - |
|

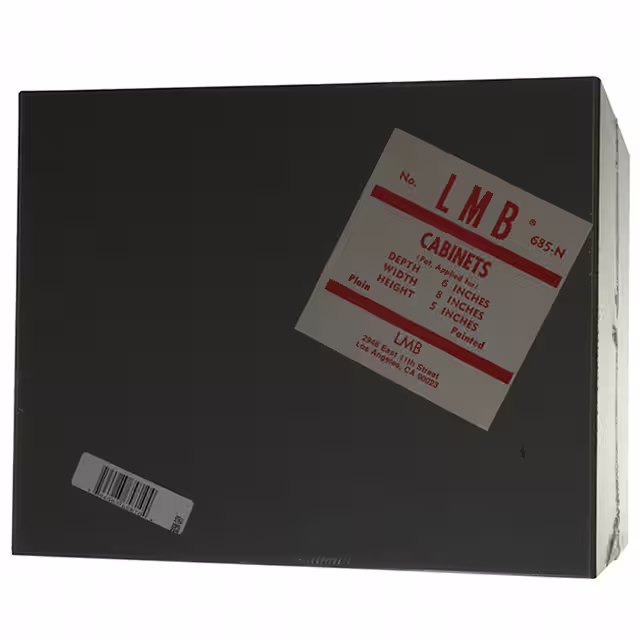

685N-GRAYCABINET ALUM GRAY 8"L X 6"W |
2 |
|
- |
N | Bulk | Active | Cabinet | 8.000" L x 6.000" W (203.20mm x 152.40mm) | 5.000" (127.00mm) | 48.0in² (310cm²) | U Shaped Pieces | Metal, Aluminum | Gray | - | - | - | - |
|
EM 214 FLPBOX PLASTIC GRAY 7.87"L X 4.72"W |
1 |
|
规格书 |
EuroLite EM | Bulk | Active | Box | 7.874" L x 4.724" W (200.00mm x 120.00mm) | 2.244" (57.00mm) | 37.2in² (240cm²) | Cover Included | Plastic, Polycarbonate | Gray | 0.118" (3.00mm) | Card Guides, PCB Supports | IP65, NEMA 12 | UL94 V-2 |
|

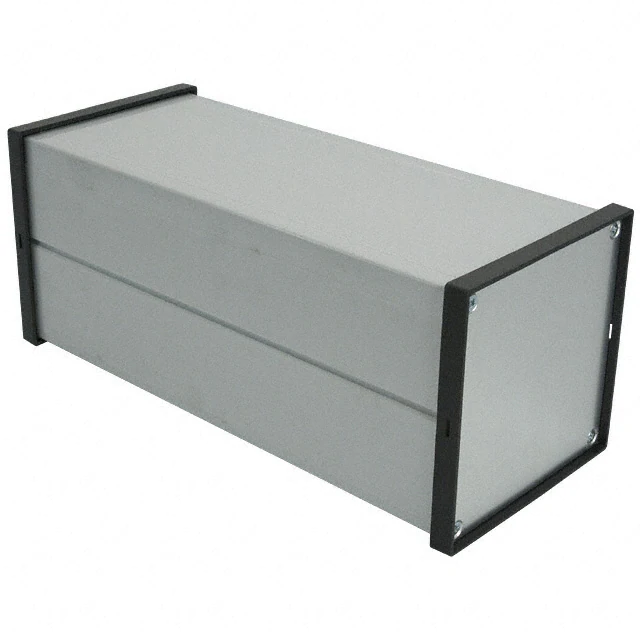

EX-4543BOX ALUM BLACK/SLV 9.32"LX3.78"W |
0 |
|
规格书 |
- | Bulk | Active | Box | 9.320" L x 3.780" W (236.73mm x 96.01mm) | 3.780" (96.00mm) | 35.2in² (227cm²) | End Panel(s) | Metal, Aluminum with Plastic Bezels | Black, Silver | 0.060" (1.52mm) | Card Guides | - | UL94 V-0 |
|
1458VD3BBOX STEEL BLUE 8"L X 8"W |
0 |
|
规格书 |
1458 | Bulk | Active | Box | 8.000" L x 8.000" W (203.20mm x 203.20mm) | 3.000" (76.20mm) | 64.0in² (413cm²) | Split Sides and End Panel(s) | Metal, Steel | Blue | 18 Gauge | Separate Panel or Cover Thickness, Vented Panels | - | - |
|
EM238BOX PLASTIC GRAY 6.3"L X 4.72"W |
0 |
|
规格书 |
EuroLite EM | Bulk | Active | Box | 6.299" L x 4.724" W (160.00mm x 120.00mm) | 3.622" (92.00mm) | 29.8in² (192cm²) | Cover Included | Plastic, Polycarbonate | Gray | 0.118" (3.00mm) | PCB Supports | IP65, NEMA 12 | UL94 V-2 |
