箱体
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

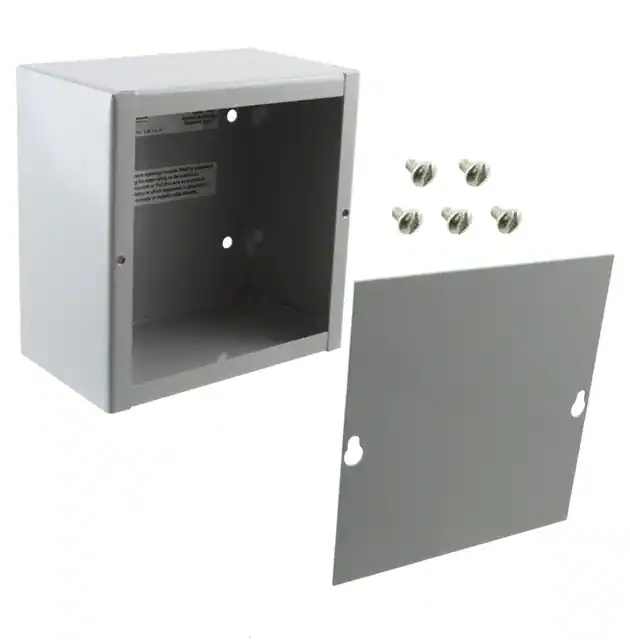

JB3945BOX STEEL GRAY 6"L X 3.5"W |
1 |
|
规格书 |
JB | Box | Active | Box | 6.000" L x 3.500" W (152.40mm x 88.90mm) | 6.000" (152.40mm) | 21.0in² (135cm²) | Cover Included | Metal, Steel | Gray | 16 Gauge | Wall Mount | NEMA 1 | - |
|
M8,BKBOX ABS BLACK 6.97"L X 2.4"W |
1 |
|
规格书 |
M | Bulk | Active | Box | 6.970" L x 2.400" W (177.04mm x 60.96mm) | 0.850" (21.59mm) | 16.7in² (108cm²) | Hand Held, Split Sides and End Panel(s) | Plastic, ABS | Black | 0.100" (2.54mm) | Battery Compartment, 9V and AA | IP40 | UL94 HB |
|
M4PC,GYBOX ABS GRAY 2.8"L X 2.2"W |
3 |
|
规格书 |
M | Bulk | Active | Box | 2.800" L x 2.200" W (71.12mm x 55.88mm) | 0.710" (18.03mm) | 6.15in² (39.7cm²) | Hand Held, Split Sides and End Panel(s) | Plastic, ABS | Gray | 0.100" (2.54mm) | Battery Compartment, AA, Pocket Clip | IP40 | UL94 HB |
|

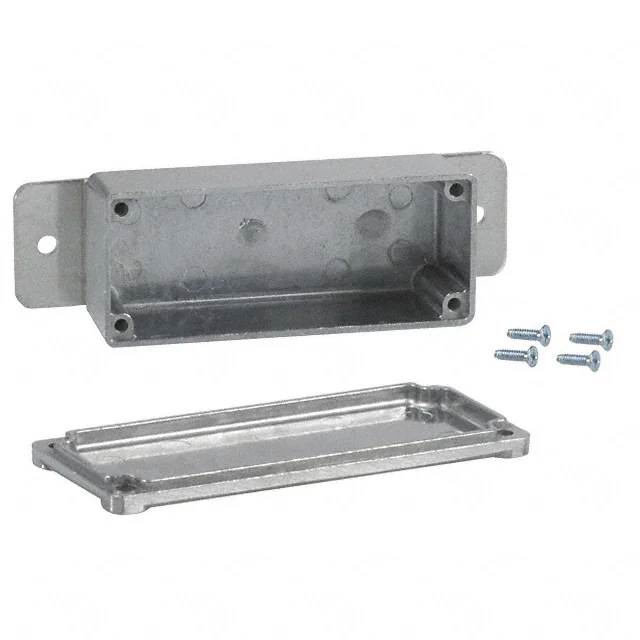

CU-4123BOX ALUM NATURAL 3.63"L X 1.5"W |
2 |
|
规格书 |
Econobox | Bulk | Active | Box | 3.625" L x 1.500" W (92.08mm x 38.10mm) | 1.218" (30.94mm) | 5.44in² (35.1cm²) | Cover Included | Metal, Aluminum | Natural | 0.062" (1.57mm) | - | - | - |
|
PERF-136 PLAINCHASSIS ALUM 5.25"L X 3"W |
1 |
|
规格书 |
- | Bulk | Active | Chassis | 5.250" L x 3.000" W (133.35mm x 76.20mm) | 2.125" (53.98mm) | 15.8in² (102cm²) | Perforated, U Shaped Pieces | Metal, Aluminum | Unpainted | 0.050" (1.27mm) | Vented Panels | - | - |
|

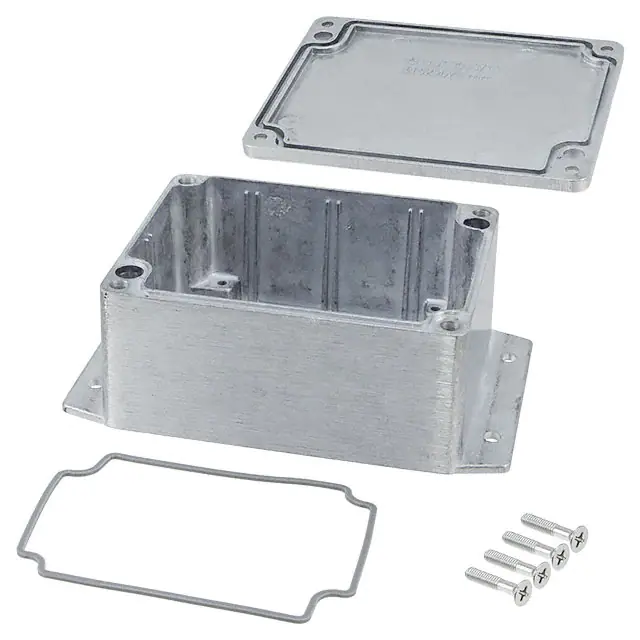

AN-2854-ABOX ALUM NATURAL 4.53"L X 3.54"W |
4 |
|
规格书 |
AN-A | Bulk | Active | Box | 4.530" L x 3.540" W (115.06mm x 89.92mm) | 2.170" (55.12mm) | 16.0in² (103cm²) | Cover Included | Metal, Aluminum | Natural | 0.130" (3.30mm) | Mounting Flange, PCB Supports, Watertight | IP68, NEMA 4X,6,6P,12,13 | - |
|
1594CWGYBOX PLASTIC GRAY 4.19"L X 2.6"W |
2 |
|
规格书 |
1594W | Bag | Active | Box | 4.193" L x 2.598" W (106.50mm x 65.99mm) | 1.787" (45.39mm) | 10.9in² (70cm²) | Cover Included | ABS | Gray | 0.130" (3.30mm) | Flame Retardant, Watertight | IP66 | UL94 V-0 |
|
RBF33P06C08BENCLOSURE PLAS 3.23"L X 3.15"W |
1 |
|
规格书 |
RB | Bulk | Active | Enclosure | 3.230" L x 3.150" W (82.04mm x 80.01mm) | 1.380" (35.05mm) | 10.2in² (66cm²) | Cover Included | Plastic, Polycarbonate | Black, Clear Cover/Door | 0.120" (3.05mm) | - | IP67, NEMA 4 | - |
|

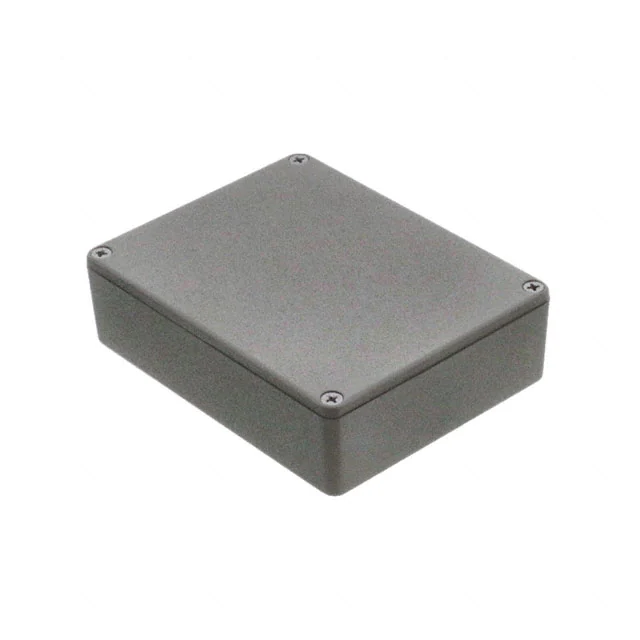

1590BBGYBOX ALUM GRAY 4.71"L X 3.7"W |
1 |
|
规格书 |
1590 | Bulk | Active | Box | 4.705" L x 3.701" W (119.50mm x 94.00mm) | 1.339" (34.00mm) | 17.3in² (112cm²) | Cover Included | Metal, Aluminum | Gray | 0.089" (2.26mm) | EMI Shielded | IP54 | - |
|
S3L-452715-SWBOX ABS BLACK 4.54"L X 3.02"W |
5 |
|
规格书 |
- | Bag | Active | Box | 4.539" L x 3.019" W (115.29mm x 76.68mm) | 1.450" (36.83mm) | 13.7in² (88cm²) | Cover Included, Hand Held | Plastic, ABS | Black | - | - | - | - |
|
|
RBF53P06B28BENCLOSURE PLAS 4.72"L X 3.15"W |
1 |
|
规格书 |
RB | Bulk | Active | Enclosure | 4.720" L x 3.150" W (119.89mm x 80.01mm) | 1.380" (35.05mm) | 14.9in² (96cm²) | Cover Included | Plastic, Polycarbonate | Black | 0.120" (3.05mm) | - | IP67, NEMA 4 | - |
|

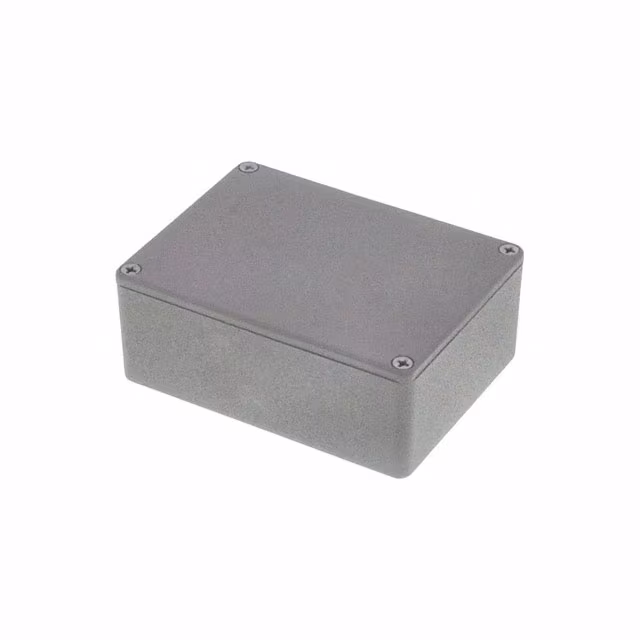

1590SGYBOX ALUM GRAY 4.34"L X 3.23"W |
1 |
|
规格书 |
1590 | Bulk | Active | Box | 4.335" L x 3.232" W (110.11mm x 82.09mm) | 1.810" (45.97mm) | 14.0in² (90cm²) | Cover Included | Metal, Aluminum | Gray | 0.080" (2.03mm) | EMI Shielded | IP54 | - |
|
H65PC,BKBOX ABS BLACK 4.94"L X 2.75"W |
0 |
|
规格书 |
H | Bulk | Active | Box | 4.940" L x 2.750" W (125.48mm x 69.85mm) | 0.940" (23.88mm) | 13.6in² (88cm²) | Hand Held, Split Sides and End Panel(s) | Plastic, ABS | Black | 0.080" (2.03mm) | Pocket Clip | IP40 | UL94 HB |
|
02205000BOX PLASTIC GRAY 2.05"L X 1.97"W |
2 |
|
规格书 |
02 | Bulk | Active | Box | 2.047" L x 1.969" W (52.00mm x 50.00mm) | 1.378" (35.00mm) | 4.03in² (26.0cm²) | Cover Included | Plastic, Polycarbonate | Gray | - | Watertight | IP66, NEMA 4X, UL-508 | UL94 V-2 |
|
172I,ALBOX ABS ALMOND 6.88"L X 4.88"W |
3 |
|
规格书 |
S | Bulk | Active | Box | 6.880" L x 4.880" W (174.75mm x 123.95mm) | 2.000" (50.80mm) | 33.6in² (217cm²) | Hand Held, Split Sides | Plastic, ABS | Almond | 0.100" (2.54mm) | PCB Supports | IP40, NEMA 1 | UL94 HB |
|
253I,ALBOX ABS ALMOND 5.62"L X 3.25"W |
1 |
|
规格书 |
S | Bulk | Active | Box | 5.620" L x 3.250" W (142.75mm x 82.55mm) | 2.500" (63.50mm) | 18.3in² (118cm²) | Hand Held, Split Sides | Plastic, ABS | Almond | 0.100" (2.54mm) | Battery Compartment, 9V, PCB Supports | IP40, NEMA 1 | UL94 HB |
|
CA10B4,BKKEY FOB ABS BLACK 3.4"L X 2.56"W |
3 |
|
规格书 |
CA | Box | Active | Key FOB | 3.400" L x 2.560" W (86.36mm x 65.02mm) | 1.020" (25.91mm) | 8.70in² (56.1cm²) | Hand Held, Split Sides | Plastic, ABS | Black | - | Buttons - 4 | IP67 | UL94 HB |
|

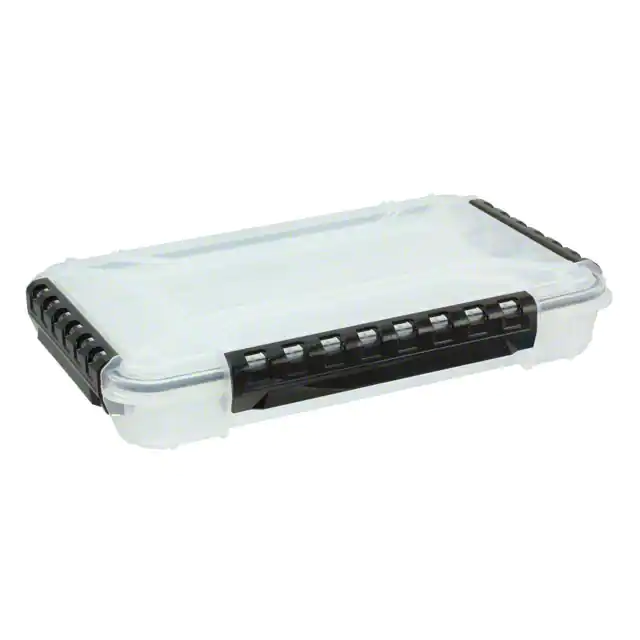

6741TECOMP STORAGE PLAS 10.75"LX7.19"W |
3 |
|
规格书 |
- | Bulk | Active | Component Storage | 10.752" L x 7.189" W (273.10mm x 182.60mm) | 1.875" (47.63mm) | 77.4in² (499cm²) | Hinged Door, Lid | Plastic, Polypropylene | Clear | - | Compartments/Drawers - 1, Watertight | - | - |
|

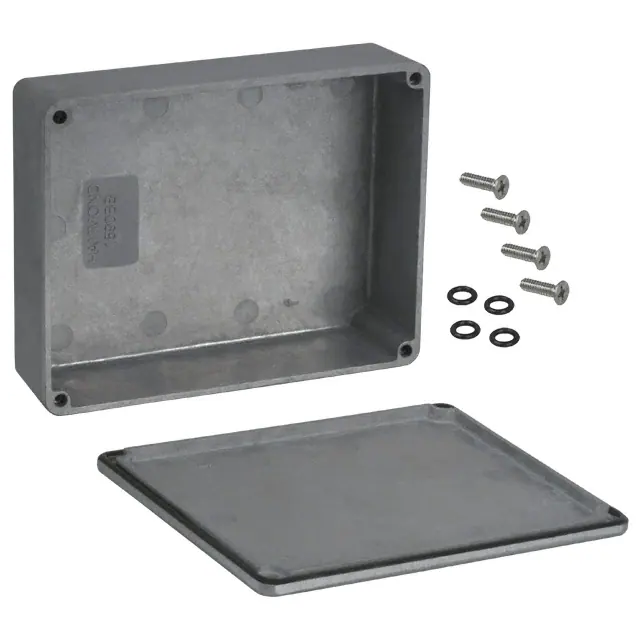

1590WBBBOX ALUM UNPTD 4.71"L X 3.7"W |
1 |
|
规格书 |
1590W | Bulk | Active | Box | 4.705" L x 3.701" W (119.50mm x 94.00mm) | 1.339" (34.00mm) | 17.3in² (112cm²) | Cover Included | Aluminum | Unpainted | 0.080" (2.03mm) | Watertight | IP65 | - |
|

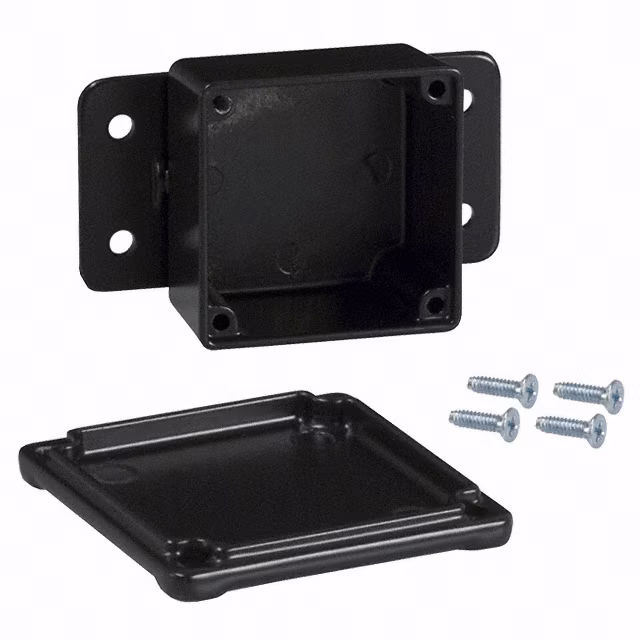

CU-4470-BBOX ALUM BLACK 2"L X 2"W |
1 |
|
规格书 |
Econobox | Bulk | Active | Box | 2.000" L x 2.000" W (50.80mm x 50.80mm) | 1.250" (31.75mm) | 4.00in² (25.8cm²) | Cover Included | Metal, Aluminum | Black | 0.062" (1.57mm) | - | - | - |
