箱体
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

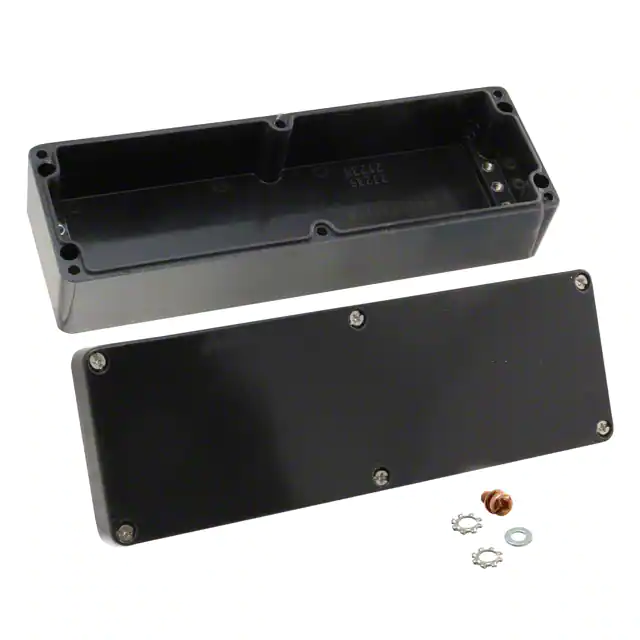

260823060BOX FIBERGLASS 9.06"L X 2.95"W Rose Enclosures |
1 |
|
规格书 |
EX | Bulk | Active | Box | 9.055" L x 2.953" W (230.00mm x 75.00mm) | 2.224" (56.50mm) | 26.7in² (172cm²) | Cover Included | Fiberglass/Polyester | Black | 0.197" (5.00mm) | External Connectors, Flame Retardant | IP66, EN 60529 | UL94 V-0 |
|
268804000BOX FIBERGLASS BLACK 7.91"X7.91" Rose Enclosures |
1 |
|
规格书 |
EX OktaBox | Bulk | Active | Box | 7.913" L x 7.913" W (201.00mm x 201.00mm) | 4.941" (125.50mm) | 62.4in² (403cm²) | Cover Included | Fiberglass/Polyester | Black | 0.197" (5.00mm) | External Connectors, Flame Retardant, Mounting Flange | IP66, EN 60529 | UL94 V-0 |
|
011222098BOX ALUM 8.66"L X 4.72"W Rose Enclosures |
0 |
|
规格书 |
01 | Bulk | Active | Box | 8.661" L x 4.724" W (220.00mm x 120.00mm) | 3.583" (91.00mm) | 40.9in² (264cm²) | Cover Included | Metal, Aluminum | Unpainted | 0.157" (4.00mm) | Watertight | IP66, NEMA 1,2,4,4X, UL-508 | - |
|

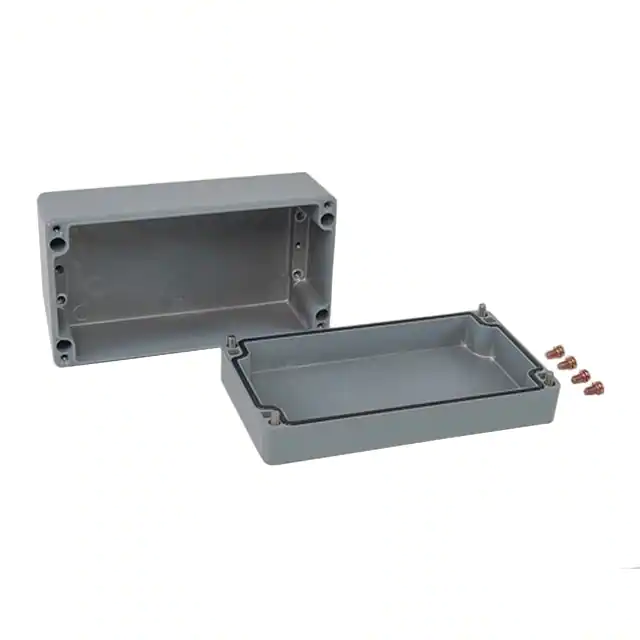

011222090BOX ALUM GRAY 8.66"L X 4.72"W Rose Enclosures |
0 |
|
规格书 |
01 | Bulk | Active | Box | 8.661" L x 4.724" W (220.00mm x 120.00mm) | 3.583" (91.00mm) | 40.9in² (264cm²) | Cover Included | Metal, Aluminum | Gray | 0.157" (4.00mm) | Watertight | IP66, NEMA 1,2,4,4X, UL-508 | - |
|
02253100BOX PLAS CLEAR 11.81"L X 9.06"W Rose Enclosures |
1 |
|
规格书 |
Euromas | Bulk | Active | Box | 11.811" L x 9.055" W (300.00mm x 230.00mm) | 3.346" (85.00mm) | 107in² (690cm²) | Cover Included | Plastic, Polycarbonate | Clear | - | Watertight | IP66, NEMA 4X, UL-508 | UL94 V-2 |
|

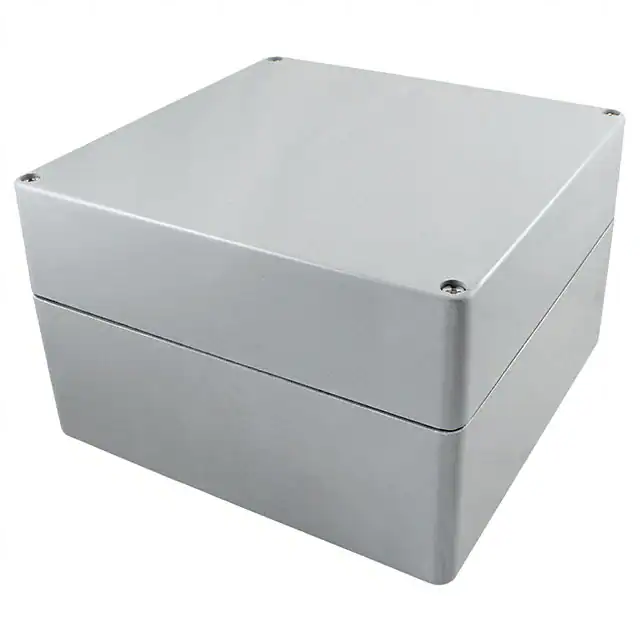

022526160BOX FIBERGLASS GRY 10.04"X9.84" Rose Enclosures |
0 |
|
规格书 |
02 | Bulk | Active | Box | 10.039" L x 9.843" W (255.00mm x 250.00mm) | 6.339" (161.00mm) | 98.8in² (637cm²) | Cover Included | Fiberglass/Polyester | Gray | 0.236" (6.00mm) | Watertight | IP66, NEMA 1,2,4,4X, UL-508 | UL94 V-0 |
|

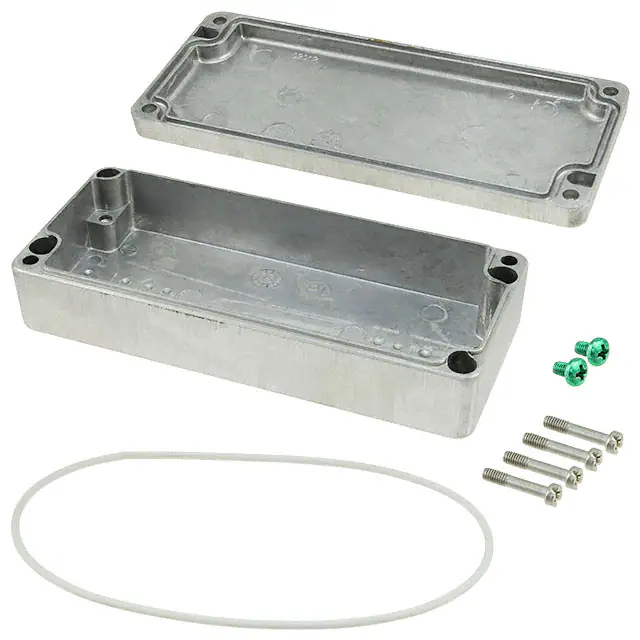

010615038BOX ALUM 5.91"L X 2.52"W Rose Enclosures |
2 |
|
规格书 |
01 | Bulk | Active | Box | 5.906" L x 2.520" W (150.00mm x 64.00mm) | 1.339" (34.00mm) | 14.9in² (96cm²) | Cover Included | Metal, Aluminum | Unpainted | 0.118" (3.00mm) | Watertight | IP66, NEMA 1,2,4,4X, UL-508 | - |
|

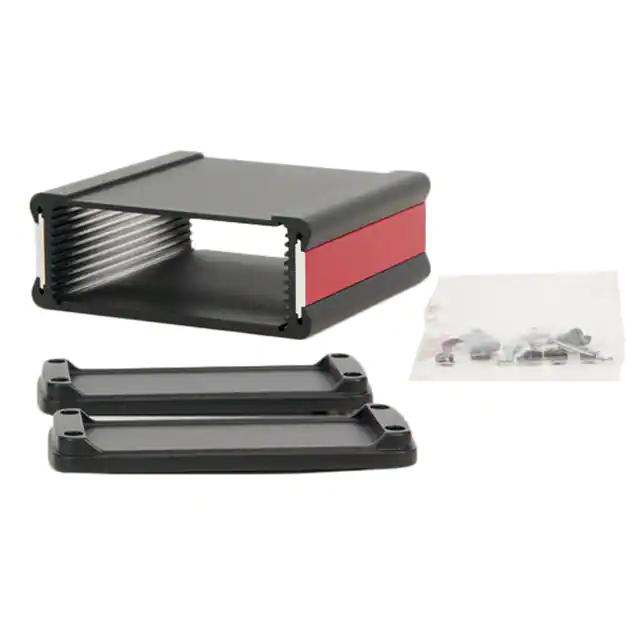

07502010BOX ALUM BLACK 4.96"L X 4.72"W Rose Enclosures |
1 |
|
规格书 |
Novotronic | Bulk | Active | Box | 4.961" L x 4.724" W (126.00mm x 120.00mm) | 1.929" (49.00mm) | 23.4in² (151cm²) | End Panel(s) | Metal, Aluminum | Black | - | - | IP65 | - |
|

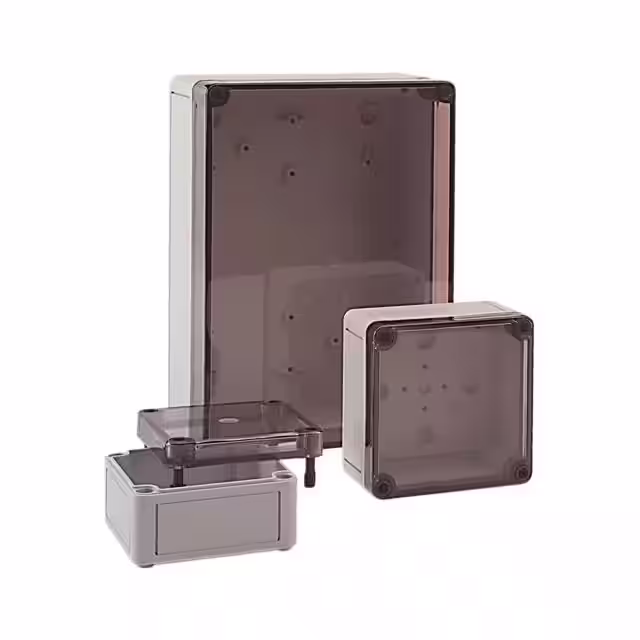

601313210BOX PLASTIC GRAY 5.12"L X 5.12"W Rose Enclosures |
0 |
|
规格书 |
ECO | Bulk | Active | Box | 5.118" L x 5.118" W (130.00mm x 130.00mm) | 3.898" (99.00mm) | 26.2in² (169cm²) | Cover Included | Plastic, Polystyrene | Gray | 0.118" (3.00mm) | Flame Retardant, PCB Supports, Watertight | IP66, NEMA 4,4X | UL94 HB |
|

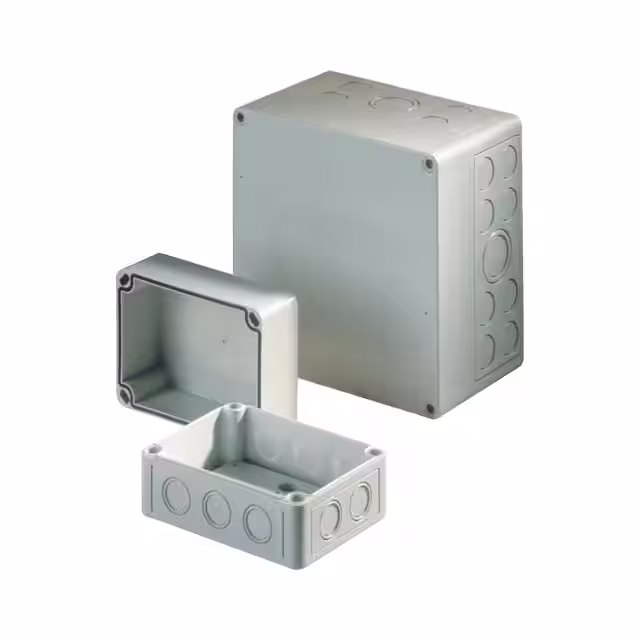

600707150BOX PLASTIC GRAY 2.56"L X 2.56"W Rose Enclosures |
0 |
|
规格书 |
PCI | Bulk | Active | Box | 2.559" L x 2.559" W (65.00mm x 65.00mm) | 2.244" (57.00mm) | 6.55in² (42.3cm²) | Cover Included | Plastic, Polystyrene | Gray | 0.118" (3.00mm) | Flame Retardant, Knockouts, PCB Supports, Watertight | IP66, NEMA 4,4X | UL94 HB |
