汽车继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

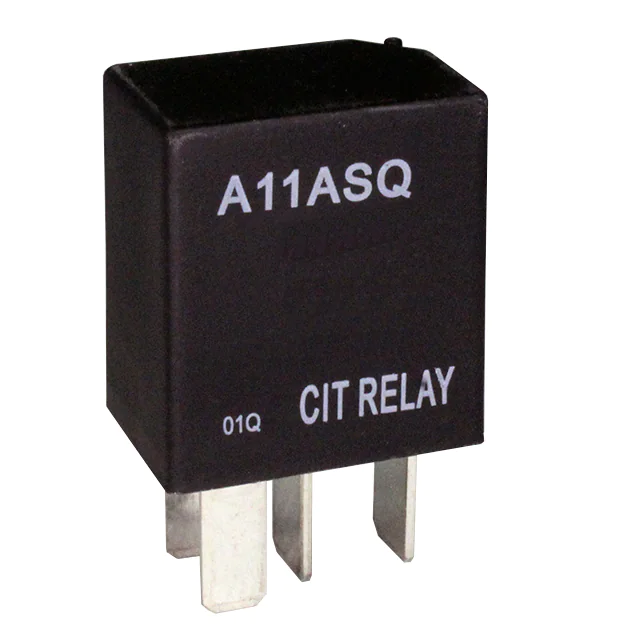

A11ASQ24VDC1.5RELAY AUTOMOTIVE SPST 30A 24V CIT Relay and Switch |
43 |
|
规格书 |
A1 | Tube | Active | Non Latching | 62.5 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C |
|

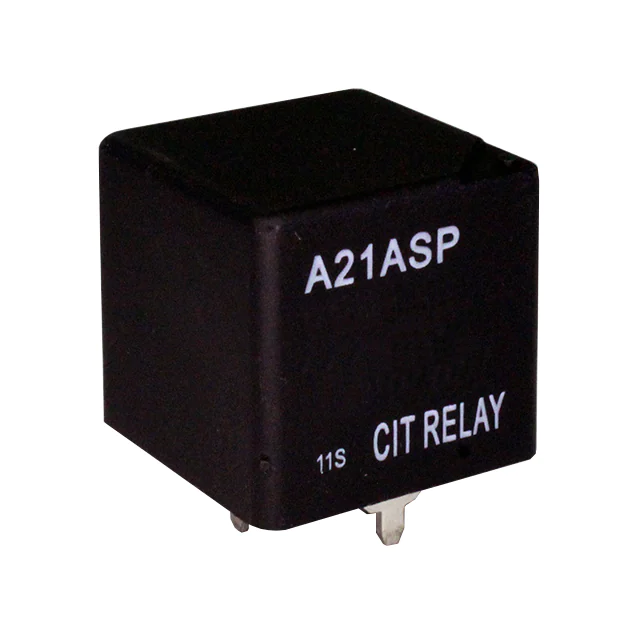

A21ASP24VDC1.6DRELAY AUTOMOTIVE SPST 40A 24V CIT Relay and Switch |
95 |
|
规格书 |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
A171AHS24VDC.96RELAY AUTOMOTIVE SPST 30A 24V CIT Relay and Switch |
41 |
|
规格书 |
A17 | Tray | Active | Non Latching | 40 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A11CSP12VDC1.5DRELAY AUTOMOTIVE SPDT 30A 12V CIT Relay and Switch |
50 |
|
规格书 |
A1 | Tube | Active | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A11CSP24VDC1.5RELAY AUTOMOTIVE SPDT 30A 24V CIT Relay and Switch |
50 |
|
规格书 |
A1 | Tube | Active | Non Latching | 62.5 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A2HM1CSQ24VDC1.6RELAY AUTOMOTIVE SPDT 50A 24V CIT Relay and Switch |
78 |
|
规格书 |
A2H | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2M1ASQ48VDC1.6RELAY AUTOMOTIVE SPST 40A 48V CIT Relay and Switch |
67 |
|
规格书 |
A2 | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A21CSP24VDC1.6DRELAY AUTOMOTIVE SPDT 40A 24V CIT Relay and Switch |
64 |
|
规格书 |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
A11CSP24VDC1.5RRELAY AUTOMOTIVE SPDT 30A 24V CIT Relay and Switch |
50 |
|
规格书 |
A1 | Tube | Active | Non Latching | 62.5 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A2H1CSP24VDC1.6RRELAY AUTOMOTIVE SPDT 50A 24V CIT Relay and Switch |
99 |
|
规格书 |
A2H | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Resistor | Through Hole | PC Pin | -40°C ~ 125°C |
