汽车继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G8N-1L-AS DC12RELAY AUTOMOTIVE SPDT 30A 12V Omron Electronics Inc-EMC Div |
508 |
|
规格书 |
G8N-1 | Bulk | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 16VDC - Max | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 105°C |
|
|
G9EJ-1-E-UVD DC12RELAY AUTOMOTIVE SPST 15A 12V Omron Electronics Inc-EMC Div |
2,977 |
|
规格书 |
G9EJ-1-E | Tray | Active | Non Latching | 100 mA | 12VDC | SPST-NO (1 Form A) | 15 A | 400VDC - Max | 7.2 VDC | 0.6 VDC | 50 ms | 30 ms | - | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 70°C |
|
|
G8K-17R DC12AUTO MOTIVE PCB RELAY, DC 12V Omron Electronics Inc-EMC Div |
1,266 |
|
规格书 |
G8K | Tube | Active | Non Latching | 75 mA | 12VDC | SPDT (1 Form C) | 30 A | - | 6.9 VDC | 1 VDC | 10 ms | 5 ms | Sealed - Flux Protection | Socketable | Plug In | -40°C ~ 125°C |
|
|
G8N-1H-AS DC12RELAY AUTOMOTIVE SPDT 30A 12V Omron Electronics Inc-EMC Div |
1,761 |
|
规格书 |
G8N-1 | Tray | Active | Non Latching | 66.7 mA | 12VDC | SPDT (1 Form C) | 30 A | 16VDC - Max | 6.5 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 105°C |
|
|
G8NW-2H DC12RELAY AUTOMOTIVE SPDT 30A 12V Omron Electronics Inc-EMC Div |
485 |
|
规格书 |
G8NW-2 | Tray | Active | Non Latching | 66.7 mA | 12VDC | SPDT (1 Form C) x 2 | 30 A | 16VDC - Max | 6.5 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 105°C |
|

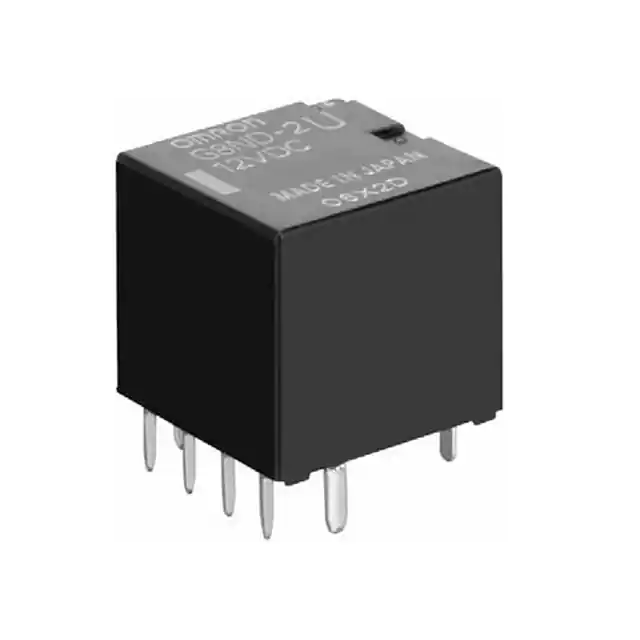

G8ND-2S-DC12RELAY AUTOMOTIVE SPDT 30A 12V Omron Electronics Inc-EMC Div |
1,256 |
|
规格书 |
G8ND-2 | Tube | Active | Non Latching | 66.7 mA | 12VDC | SPDT (1 Form C) x 2 | 30 A | 16VDC - Max | 6.5 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
G8ND-2-DC12RELAY AUTOMOTIVE SPDT 30A 12V Omron Electronics Inc-EMC Div |
731 |
|
规格书 |
G8ND-2 | Tray | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) x 2 | 30 A | 16VDC - Max | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
G8PM-1AW7R DC12AUTOMOTIVE PCB RELAY, DC 12V Omron Electronics Inc-EMC Div |
1,579 |
|
规格书 |
G8PM | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPST-NO (1 Form A) | 60 A | - | 7.2 VDC | 0.8 VDC | 10 ms | 5 ms | Sealed - Flux Protection | Socketable | Plug In | -40°C ~ 125°C |
|
|
G8G-1A7R DC12AUTO MOTIVE PCB RELAY, DC 12V Omron Electronics Inc-EMC Div |
2,319 |
|
规格书 |
G8G | Tube | Active | Non Latching | 40 mA | 12VDC | SPST-NO (1 Form A) | 35 A | 14VDC - Nom | 6.5 VDC | 0.5 VDC | 10 ms | 5 ms | Sealed - Flux Protection | Socketable | Plug In | -40°C ~ 125°C |
|
|
G8G-17R DC12AUTO MOTIVE PCB RELAY, DC 12V Omron Electronics Inc-EMC Div |
1,786 |
|
规格书 |
G8G | Tube | Active | Non Latching | 40 mA | 12VDC | SPDT (1 Form C) | 35 A | 14VDC - Nom | 6.5 VDC | 0.5 VDC | 10 ms | 5 ms | Sealed - Flux Protection | Socketable | Plug In | -40°C ~ 125°C |
