汽车继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-1414552-0POWER FA V23136 TE Connectivity AMP Connectors |
57 |
|
规格书 |
F7 A | Bulk | Active | Non Latching | 105.3 mA | 12VDC | SPDT (1 Form C) | 60 A | 14VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | IP67 - Dust Tight, Waterproof | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
9-1414992-1RELAY GEN PURPOSE SPST 25A 12V TE Connectivity AMP Connectors |
0 |
|
规格书 |
VFMA | Tray | Obsolete | Non Latching | 100.8 mA | 12VDC | SPST-NO (1 Form A) | 25 A | 14VDC - Nom | 7.2 VDC | 1.6 VDC | - | - | Resistor | Socketable | Quick Connect - 0.187"/0.250" | -40°C ~ 125°C |
|

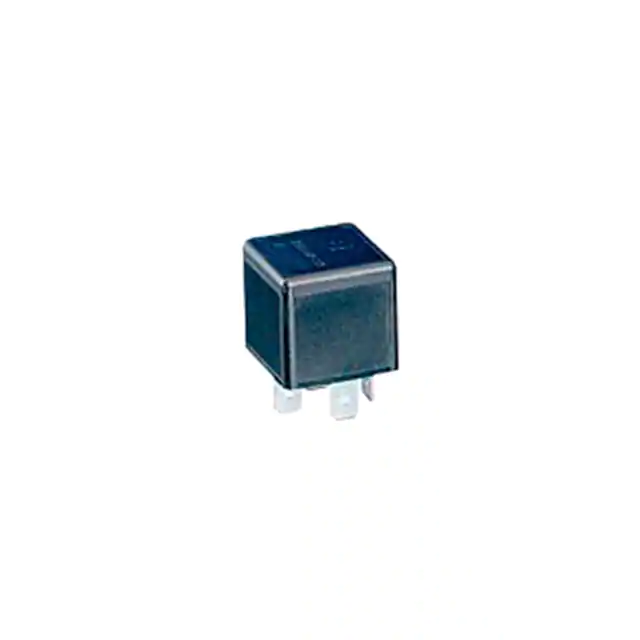

1-1414167-0POWER F V23134 TE Connectivity AMP Connectors |
0 |
|
规格书 |
- | Bulk | Active | Non Latching | - | 24VDC | SPDT (1 Form C) | 20 A | - | 16 VDC | 4 VDC | 7 ms | 2 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|
|
6-1414989-1V23134Z1020-EV-CBOX TE Connectivity AMP Connectors |
0 |
|
规格书 |
- | Box | Active | Non Latching | - | - | - | - | - | - | - | - | - | - | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | - |
|
|
1-1414530-0V23076A3001C132TRW TE Connectivity AMP Connectors |
0 |
|
- |
V23076 | Bulk | Active | Non Latching | - | 12VDC | SPDT (1 Form C) | 45 A | - | - | - | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
1-1414474-0V23076A3001D142TX TE Connectivity AMP Connectors |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1-1414695-0V23076A1001C133TOU TE Connectivity AMP Connectors |
0 |
|
- |
V23076 | Bulk | Active | Non Latching | - | 12VDC | SPDT (1 Form C) | 45 A | - | - | - | 5 ms | 3 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
1393292-5RELAY GEN PURPOSE SPST 25A 12V TE Connectivity AMP Connectors |
0 |
|
- |
VFMA | Bulk | Active | Non Latching | 100.8 mA | 12VDC | SPST-NO (1 Form A) | 25 A | 14VDC - Nom | 7.2 VDC | 1.6 VDC | 6 ms | 3 ms | Resistor | Socketable | Plug In | -40°C ~ 125°C |
|
|
8-1393292-9MIC ISO V23074 V23075 TE Connectivity AMP Connectors |
0 |
|
规格书 |
V23074, AXICOM | Bulk | Obsolete | Non Latching | 55.8 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 28VDC - Nom | 14.4 VDC | 3.6 VDC | 6 ms | 3 ms | Resistor | Socketable | Plug In | -40°C ~ 125°C |
|
|
7-1414985-1V23136A0004X075-EV-CBOX TE Connectivity AMP Connectors |
0 |
|
规格书 |
F7 A | Box | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 60 A | 14VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | IP54 - Dust Protected, Water Resistant | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
