汽车继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ9871-2C-12DETRELAY AUTOMOTIVE DPDT 30A 12V American Zettler |
811 |
|
规格书 |
AZ9871 | Tray | Active | Non Latching | 47.2 mA | 12VDC | DPDT (2 Form C) | 30 A | 24VDC - Max | 6.9 VDC | 1.5 VDC | 3 ms | 1.5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 105°C |
|
|
AZ9861-1C-24DC2R1RELAY AUTOMOTIVE SPDT 40A 24V American Zettler |
754 |
|
规格书 |
AZ9861 | Box | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 40 A | 40VDC - Max | 14.4 VDC | 2.4 VDC | 6 ms | 3 ms | 280-ISO, Resistor | Socketable | Plug In, Quick Connect - 0.110" (2.8mm) | -55°C ~ 125°C |
|

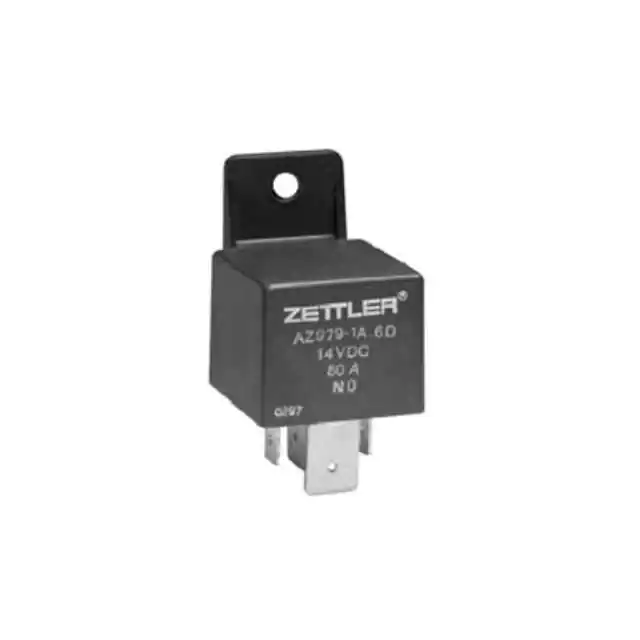

AZ979-1A-12DERELAY AUTOMOTIVE SPST 80A 12V American Zettler |
766 |
|
规格书 |
AZ979 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 30VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Epoxy, SUPER-ISO w/ Plastic Mounting Bracket | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
AZ983-1A-12DERELAY AUTOMOTIVE SPST 80A 12V American Zettler |
398 |
|
规格书 |
AZ983 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AZ979-1A-24DERELAY AUTOMOTIVE SPST 80A 24V American Zettler |
518 |
|
规格书 |
AZ979 | Box | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 30VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Epoxy, SUPER-ISO w/ Plastic Mounting Bracket | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
|
AZ983-1A-24DERELAY AUTOMOTIVE SPST 80A 24V American Zettler |
930 |
|
规格书 |
AZ983 | Box | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
AZ979-1C-12DERELAY AUTOMOTIVE SPDT 60A 12V American Zettler |
681 |
|
规格书 |
AZ979 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 60 A | 30VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Epoxy, SUPER-ISO w/ Plastic Mounting Bracket | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
AZ9891J-1C-12DSERELAY AUTOMOTIVE SPDT 30A 12V American Zettler |
938 |
|
规格书 |
AZ9891J | Tray | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 16VDC - Max | 6.5 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Epoxy | Through Hole | PC Pin | -40°C ~ 85°C |
|
AZ9731-1A-12DC3R1RELAY AUTOMOTIVE SPST 40A 12V American Zettler |
218 |
|
规格书 |
AZ9731 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | MINI-ISO, Resistor | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
AZ9731-1A-12DC3RELAY AUTOMOTIVE SPST 40A 12V American Zettler |
567 |
|
规格书 |
AZ9731 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | MINI-ISO | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
