铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-Photo-Taped-Size-G.jpg)
|
EEH-AZT1J680BCAP ALUM HYBRID 68UF 20% 63V TH |
715 |
|
规格书 |
ZT | Cut Tape (CT) | Active | Hybrid | 68 µF | ±20% | 63 V | 25mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 420 mA @ 100 Hz | 2.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
EEF-CT1C470RCAP ALUM POLY 47UF 20% 16V SMD |
10,940 |
|
规格书 |
SP-Cap CT | Tape & Reel (TR) | Not For New Designs | Polymer | 47 µF | ±20% | 16 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.059" (1.50mm) | - | Surface Mount |
|
25PZH560M10X15CAP ALUM HYBRID 560UF 20% 25V TH |
3,427 |
|
规格书 |
PZH | Bulk | Active | Hybrid | 560 µF | ±20% | 25 V | 11mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 240 mA @ 100 Hz | 4.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.650" (16.50mm) | - | Through Hole |
-Photo-Taped-Size-G.jpg)
|

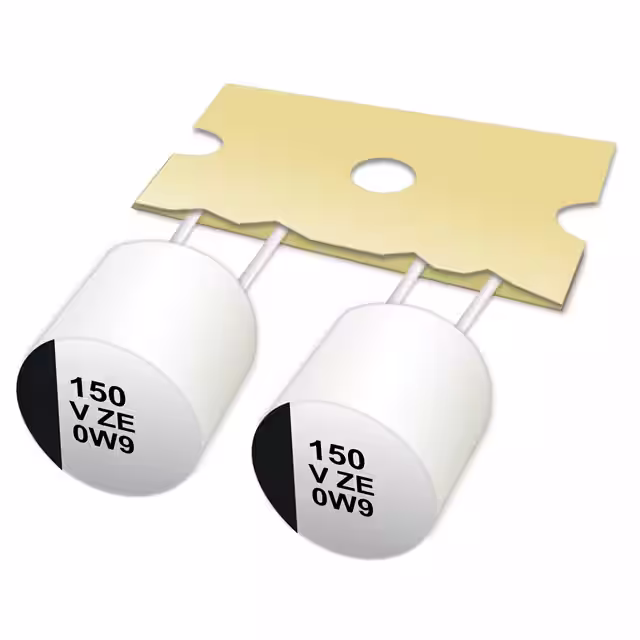

EEH-AZE1H101BCAP ALUM HYBRID 100UF 20% 50V TH |
870 |
|
规格书 |
ZE | Cut Tape (CT) | Active | Hybrid | 100 µF | ±20% | 50 V | 28mOhm | 2000 Hrs @ 145°C | -55°C ~ 145°C | AEC-Q200 | Automotive | - | 120 mA @ 100 Hz | 800 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
875075361007CAP ALUM POLY 820UF 20% 16V SMD |
321 |
|
规格书 |
WCAP-PSLC | Tape & Reel (TR) | Active | Polymer | 820 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 255 mA @ 120 Hz | 5.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.488" (12.40mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
20SVPS47MCAP ALUM POLY 47UF 20% 20V SMD |
1,414 |
|
规格书 |
OS-CON™, SVPS | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 20 V | 45mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 94.5 mA @ 120 Hz | 1.89 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEH-AZT1V271BCAP ALUM HYBRID 270UF 20% 35V TH |
873 |
|
规格书 |
ZT | Cut Tape (CT) | Active | Hybrid | 270 µF | ±20% | 35 V | 16mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 525 mA @ 100 Hz | 3.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
35PSV270M10X10.5CAP ALUMHYB 270UF 20% 35V SMD |
674 |
|
规格书 |
PSV | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 35 V | 20mOhm | 3000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 300 mA @ 100 Hz | 3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
4SVPS680MCAP ALUM POLY 680UF 20% 4V SMD |
450 |
|
规格书 |
OS-CON™, SVPS | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 4 V | 20mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 206.5 mA @ 120 Hz | 4.13 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
16SVPS82MCAP ALUM POLY 82UF 20% 16V SMD |
370 |
|
规格书 |
OS-CON™, SVPS | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 16 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 138 mA @ 120 Hz | 2.76 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
GYD1V101MCW1GSCAP ALUMHYB 100UF 20% 35V SMD |
294 |
|
规格书 |
GYD | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 35 V | 27mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 210 mA @ 120 Hz | 1.4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APXA100ARA271MJ80GCAP ALUM POLY 270UF 20% 10V SMD |
7,546 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 10 V | 24mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.77 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
A700V226M010ATE028CAP ALUM POLY 22UF 20% 10V SMD |
3,728 |
|
规格书 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 10 V | 28mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
A767KN336M1HLAE045CAP ALUM POLY 33UF 20% 50V SMD |
3,390 |
|
规格书 |
A767 | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 50 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 90 mA @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCJ0G102MCL1GSCAP ALUM POLY 1000UF 20% 4V SMD |
1,427 |
|
规格书 |
PCJ | Tape & Reel (TR) | Active | Polymer | 1000 µF | ±20% | 4 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
-Photo-Taped-Size-G12.jpg)
|
EEH-AZS1H151BCAP ALUM HYBRID 150UF 20% 50V TH |
897 |
|
规格书 |
ZS | Cut Tape (CT) | Active | Hybrid | 150 µF | ±20% | 50 V | 14mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 480 mA @ 100 Hz | 3.2 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Through Hole |
|
|
APXA6R3ARA331MJ80GCAP ALUM POLY 330UF 20% 6.3V SMD |
504 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 6.3 V | 20mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.13 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
APXA100ARA331MJ80GCAP ALUM POLY 330UF 20% 10V SMD |
500 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 10 V | 24mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.77 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
A784MS477M1ELAV018CAP ALUMHYB 470UF 20% 25V SMD |
2,351 |
|
规格书 |
A784, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 470 µF | ±20% | 25 V | 18mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | Anti-Vibration | 1.28 A @ 100 Hz | 3.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.520" (13.20mm) | 0.425" L x 0.406" W (10.80mm x 10.30mm) | Surface Mount |
|
25SVT330MCAP ALUM POLY 330UF 20% 25V SMD |
432 |
|
规格书 |
OS-CON™, SVT | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 25 V | 14mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 250 mA @ 120 Hz | 5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
