铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
337AVG035MGBJCAP ALUM POLY 330UF 20% 35V TH Cornell Dubilier Knowles |
4,480 |
|
规格书 |
AVG | Bulk | Active | Polymer | 330 µF | ±20% | 35 V | 24mOhm | 1500 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 170 mA @ 120 Hz | 3.4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.532" (13.50mm) | - | Through Hole |
|

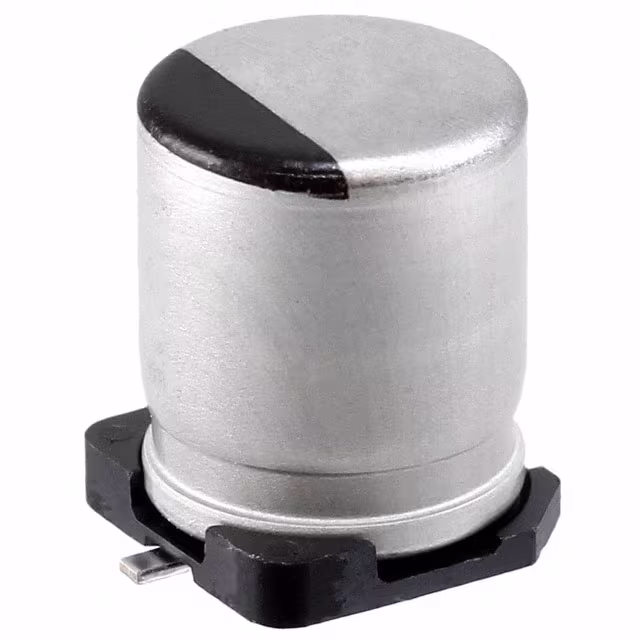

HZA686M035X16T-FCAP ALUM HYBRID 68UF 20% 35V SMD Cornell Dubilier Knowles |
9,558 |
|
规格书 |
HZA | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 35 V | 35mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 200 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
HZA107M050G24T-FCAP ALUMHYB 100UF 20% 50V SMD Cornell Dubilier Knowles |
23,855 |
|
规格书 |
HZA | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 50 V | 28mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 200 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
-V.jpg)
|
HZA337M025G24VT-FCAP ALUMHYB 330UF 20% 25V SMD Cornell Dubilier Knowles |
15,716 |
|
规格书 |
HZA_V | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 25 V | 20mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 250 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
227AVG050MGBJCAP ALUM POLY 220UF 20% 50V TH Cornell Dubilier Knowles |
7,338 |
|
规格书 |
AVG | Bulk | Active | Polymer | 220 µF | ±20% | 50 V | 28mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 131 mA @ 120 Hz | 2.62 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.532" (13.50mm) | - | Through Hole |
|
HZA157M035F24T-FCAP ALUMHYB 150UF 20% 35V SMD Cornell Dubilier Knowles |
4,373 |
|
规格书 |
HZA | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 35 V | 27mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 230 mA @ 120 Hz | 2.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
HZA336M080G24T-FCAP ALUM HYBRID 33UF 20% 80V SMD Cornell Dubilier Knowles |
706 |
|
规格书 |
HZA | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 80 V | 36mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 170 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
477AVG025MFBJCAP ALUM POLY 470UF 20% 25V TH Cornell Dubilier Knowles |
652 |
|
规格书 |
AVG | Bulk | Active | Polymer | 470 µF | ±20% | 25 V | 18mOhm | 1500 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 212.5 mA @ 120 Hz | 4.25 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.532" (13.50mm) | - | Through Hole |
|

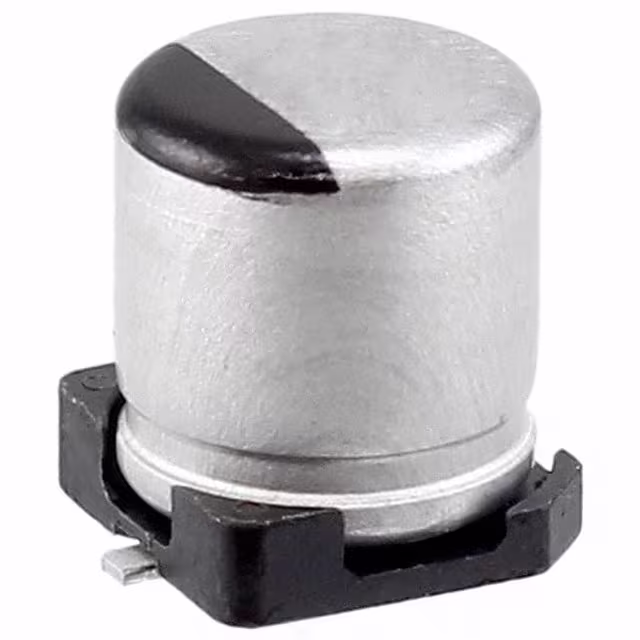

HZA106M050C12T-FCAP ALUM HYBRID 10UF 20% 50V SMD Cornell Dubilier Knowles |
926 |
|
规格书 |
HZA | Tape & Reel (TR) | Active | Hybrid | 10 µF | ±20% | 50 V | 120mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 75 mA @ 120 Hz | 750 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|

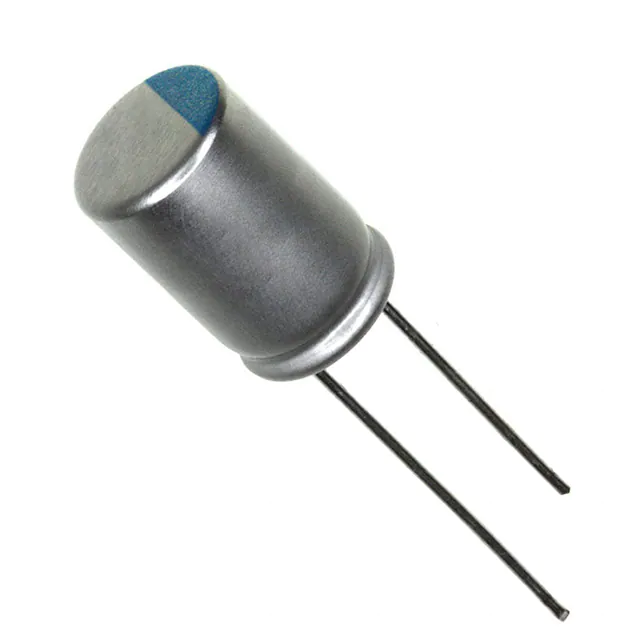

687ALG025MGBJCAP ALUM POLY 680UF 20% 25V TH Cornell Dubilier Knowles |
3,985 |
|
规格书 |
ALG | Bulk | Active | Polymer | 680 µF | ±20% | 25 V | 14mOhm | 1500 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 135 mA @ 120 Hz | 2.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.532" (13.50mm) | - | Through Hole |
