铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HHXF630ARA560MJA0GCAP ALUM HYBRID 56UF 20% 63V SMD Chemi-Con |
1,571 |
|
规格书 |
HXF | Tape & Reel (TR) | Active | Hybrid | 56 µF | ±20% | 63 V | 22mOhm | 3000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 400 mA @ 120 Hz | 4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
HHXF250ARA271MJA0GCAP ALUMHYB 270UF 20% 25V SMD Chemi-Con |
980 |
|
规格书 |
HXF | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 25 V | 16mOhm | 3000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 450 mA @ 120 Hz | 4.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
HHXF500ARA121MJA0GCAP ALUMHYB 120UF 20% 50V SMD Chemi-Con |
650 |
|
规格书 |
HXF | Tape & Reel (TR) | Active | Hybrid | 120 µF | ±20% | 50 V | 20mOhm | 3000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 430 mA @ 120 Hz | 4.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

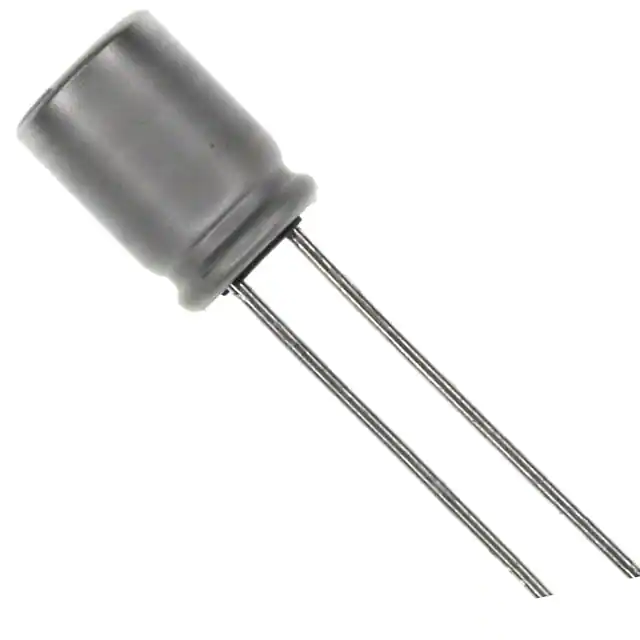

APSC100ELL391MHB5SCAP ALUM POLY 390UF 20% 10V TH Chemi-Con |
940 |
|
规格书 |
NPCAP™-PSC | Bulk | Active | Polymer | 390 µF | ±20% | 10 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.65 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
APSG160ELL821MJB5SCAP ALUM POLY 820UF 20% 16V TH Chemi-Con |
2,779 |
|
规格书 |
NPCAP™-PSG | Bulk | Active | Polymer | 820 µF | ±20% | 16 V | 12mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.453" (11.50mm) | - | Through Hole |
|
APXE2R5ARA181ME61GCAP ALUM POLY 180UF 20% 2.5V SMD Chemi-Con |
997 |
|
规格书 |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 2.5 V | 21mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.67 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
APSG250ELL561MJB5SCAP ALUM POLY 560UF 20% 25V TH Chemi-Con |
994 |
|
规格书 |
NPCAP™-PSG | Bulk | Active | Polymer | 560 µF | ±20% | 25 V | 14mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
APSG250ELL681MJB5SCAP ALUM POLY 680UF 20% 25V TH Chemi-Con |
940 |
|
规格书 |
NPCAP™-PSG | Bulk | Active | Polymer | 680 µF | ±20% | 25 V | 14mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
APSF160ELL271MHB5SCAP ALUM POLY 270UF 20% 16V TH Chemi-Con |
378 |
|
规格书 |
NPCAP™-PSF | Bulk | Active | Polymer | 270 µF | ±20% | 16 V | 11mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 508 mA @ 120 Hz | 5.08 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
HHXE250ARA471MJC5GCAP ALUMHYB 470UF 20% 25V SMD Chemi-Con |
670 |
|
规格书 |
HXE | Tape & Reel (TR) | Active | Hybrid | 470 µF | ±20% | 25 V | 16mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 526.5 mA @ 120 Hz | 4.05 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.504" (12.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
