铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

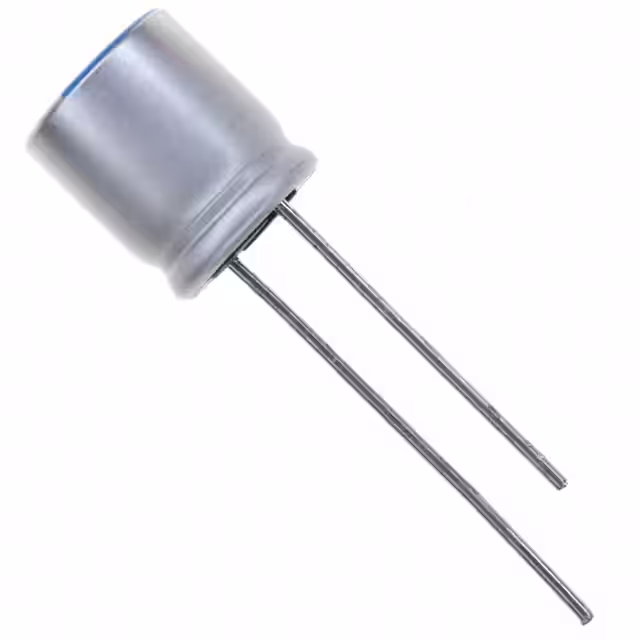

APSC4R0ELL102MJB5SCAP ALUM POLY 1000UF 20% 4V TH Chemi-Con |
132 |
|
规格书 |
NPCAP™-PSC | Bulk | Active | Polymer | 1000 µF | ±20% | 4 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.64 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.453" (11.50mm) | - | Through Hole |
|
HHXB160ARA471MJA0GCAP ALUMHYB 470UF 20% 16V SMD Chemi-Con |
2,235 |
|
规格书 |
HXB | Tape & Reel (TR) | Not For New Designs | Hybrid | 470 µF | ±20% | 16 V | 18mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | 2.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.406" (10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
APXE2R5ARA471MF80GCAP ALUM POLY 470UF 20% 2.5V SMD Chemi-Con |
347 |
|
规格书 |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2.5 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.6 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
HHSC250ELL331MJC5SCAP ALUM HYBRID 330UF 20% 25V TH Chemi-Con |
2,000 |
|
规格书 |
HSC | Bulk | Active | Hybrid | 330 µF | ±20% | 25 V | 16mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 299 mA @ 120 Hz | 2.3 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
HHSD250ELL331MJC5SCAP ALUM HYBRID 330UF 20% 25V TH Chemi-Con |
2,000 |
|
规格书 |
HSD | Bulk | Active | Hybrid | 330 µF | ±20% | 25 V | 16mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 403 mA @ 120 Hz | 3.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
APXE100ARA271MH70GCAP ALUM POLY 270UF 20% 10V SMD Chemi-Con |
900 |
|
规格书 |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 10 V | 21mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.22 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

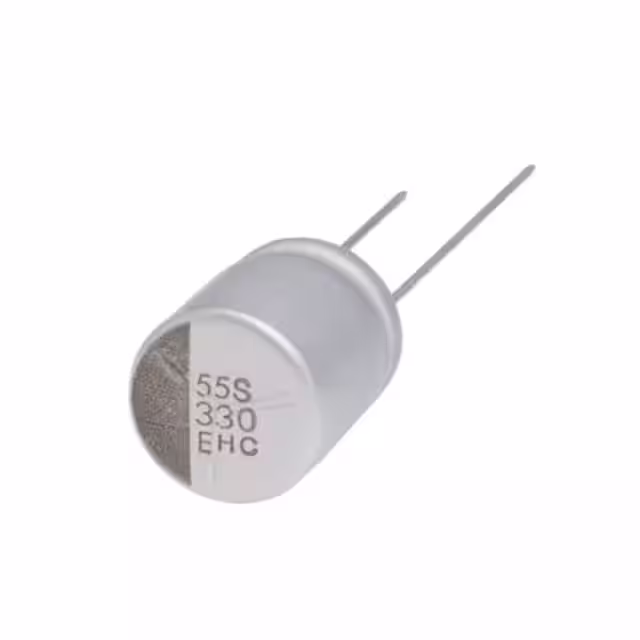

HHSC350ELL271MJC5SCAP ALUM HYBRID 270UF 20% 35V TH Chemi-Con |
2,000 |
|
规格书 |
HSC | Bulk | Active | Hybrid | 270 µF | ±20% | 35 V | 17mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 286 mA @ 120 Hz | 2.2 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
APXJ2R5ARA122MH70GCAP ALUM POLY 1200UF 20% 2.5V Chemi-Con |
500 |
|
规格书 |
NPCAP™-PXJ | Tape & Reel (TR) | Active | Polymer | 1200 µF | ±20% | 2.5 V | 10mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 225 mA @ 120 Hz | 4.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
HHXA250ARA331MJA0GCAP ALUMHYB 330UF 20% 25V SMD Chemi-Con |
462 |
|
规格书 |
HXA | Tape & Reel (TR) | Not For New Designs | Hybrid | 330 µF | ±20% | 25 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.406" (10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
APXH6R3ARA471MJ80GCAP ALUM POLY 470UF 20% 6.3V SMD Chemi-Con |
500 |
|
规格书 |
NPCAP™-PXH | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 6.3 V | 25mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
