铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

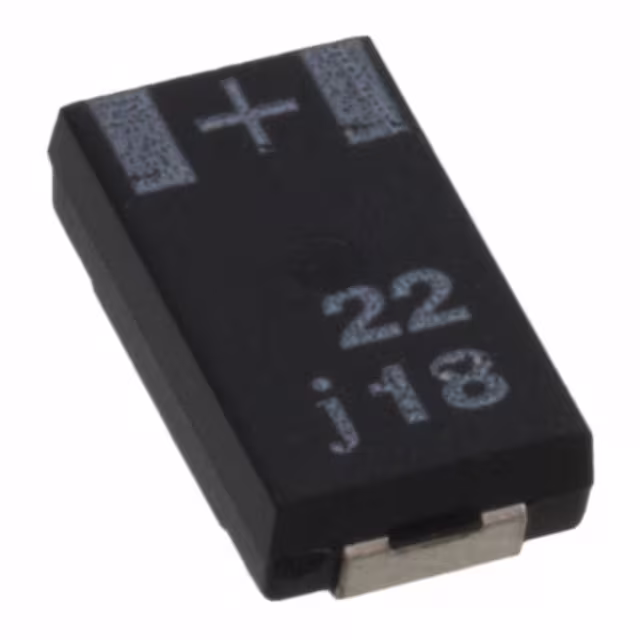

6SXB22MCAP ALUM POLY 22UF 20% 6.3V SMD |
0 |
|
规格书 |
PC-CON, SXB | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | ±20% | 6.3 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

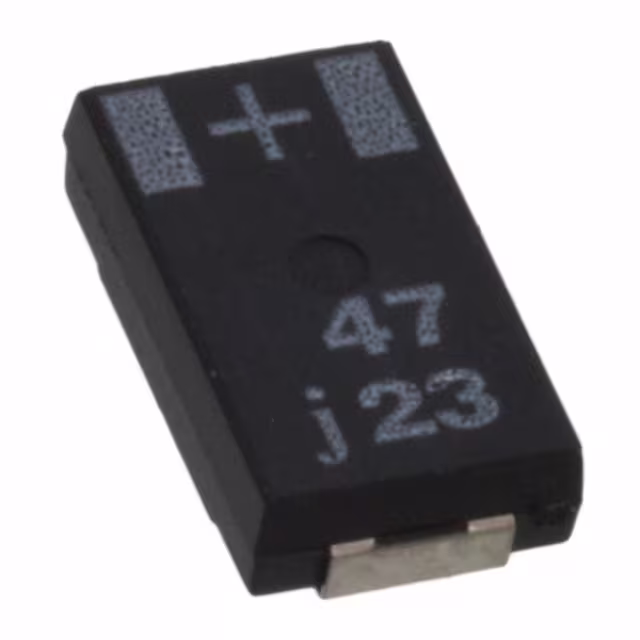

6SXB47MCAP ALUM POLY 47UF 20% 6.3V SMD |
0 |
|
规格书 |
PC-CON, SXB | Tape & Reel (TR) | Obsolete | Polymer | 47 µF | ±20% | 6.3 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
6SXB68MCAP ALUM POLY 68UF 20% 6.3V SMD |
0 |
|
规格书 |
PC-CON, SXB | Tape & Reel (TR) | Obsolete | Polymer | 68 µF | ±20% | 6.3 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
6SXE47MCAP ALUM POLY 47UF 20% 6.3V SMD |
0 |
|
规格书 |
PC-CON, SXE | Tape & Reel (TR) | Obsolete | Polymer | 47 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
8SW100MCAP ALUM POLY 100UF 20% 8V SMD |
0 |
|
规格书 |
PC-CON, SW | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 8 V | 18mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.106" (2.70mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
8SW68MCAP ALUM POLY 68UF 20% 8V SMD |
0 |
|
规格书 |
PC-CON, SW | Tape & Reel (TR) | Obsolete | Polymer | 68 µF | ±20% | 8 V | 18mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.106" (2.70mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
RVB0G151MNGCAP ALUM POLY 150UF 20% 4V SMD |
0 |
|
规格书 |
FPCAP, VB | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 4 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
RVA0J101MNGCAP ALUM POLY 100UF 20% 6.3V SMD |
0 |
|
规格书 |
FPCAP, VA | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 6.3 V | 25mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
RVA1C270MNGCAP ALUM POLY 27UF 20% 16V SMD |
0 |
|
规格书 |
FPCAP, VA | Tape & Reel (TR) | Obsolete | Polymer | 27 µF | ±20% | 16 V | 55mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
RVA1C330MNGCAP ALUM POLY 33UF 20% 16V SMD |
0 |
|
规格书 |
FPCAP, VA | Tape & Reel (TR) | Obsolete | Polymer | 33 µF | ±20% | 16 V | 55mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
RVA1E150MNGCAP ALUM POLY 15UF 20% 25V SMD |
0 |
|
规格书 |
FPCAP, VA | Tape & Reel (TR) | Obsolete | Polymer | 15 µF | ±20% | 25 V | 60mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
APSF160ELL101MFA5SCAP ALUM POLY 100UF 20% 16V TH |
0 |
|
规格书 |
NPCAP™-PSF | Bulk | Discontinued at Digi-Key | Polymer | 100 µF | ±20% | 16 V | 25mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 282 mA @ 120 Hz | 2.82 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.425" (10.80mm) | - | Through Hole |
|
APSG160ELL271MH06SCAP ALUM POLY 270UF 20% 16V TH |
0 |
|
规格书 |
NPCAP™-PSG | Bulk | Obsolete | Polymer | 270 µF | ±20% | 16 V | 22mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.3 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.236" (6.00mm) | - | Through Hole |
|
2.5SLG100MCAP ALUM POLY 100UF 20% 2.5V SMD |
0 |
|
规格书 |
PC-CON, SLG | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.043" (1.10mm) | - | Surface Mount |
|
|
2.5SLG150MCAP ALUM POLY 150UF 20% 2.5V SMD |
0 |
|
规格书 |
PC-CON, SLG | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.043" (1.10mm) | - | Surface Mount |
|
|
2.5SLG180MCAP ALUM POLY 180UF 20% 2.5V SMD |
0 |
|
规格书 |
PC-CON, SLG | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.043" (1.10mm) | - | Surface Mount |
|
|

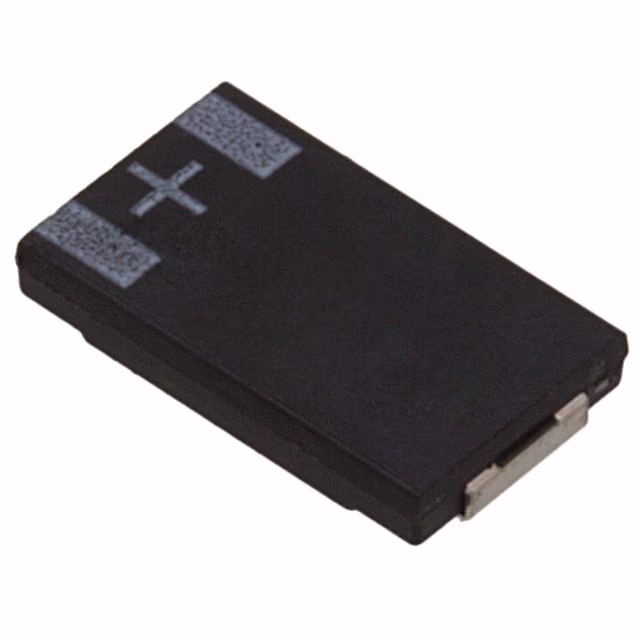

4SLG68MCAP ALUM POLY 68UF 20% 4V SMD |
0 |
|
规格书 |
PC-CON, SLG | Tape & Reel (TR) | Obsolete | Polymer | 68 µF | ±20% | 4 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.043" (1.10mm) | - | Surface Mount |
|
|
2SLG150MCAP ALUM POLY 150UF 20% 2V SMD |
0 |
|
规格书 |
PC-CON, SLG | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.043" (1.10mm) | - | Surface Mount |
|
2SW470MR06CAP ALUM POLY 470UF 20% 2V SMD |
0 |
|
- |
PC-CON, SW | Bulk | Obsolete | Polymer | 470 µF | ±20% | 2 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.114" (2.90mm) | - | Surface Mount |
|
|
RVB0D331MNGCAP ALUM POLY 330UF 20% 2V SMD |
0 |
|
规格书 |
FPCAP, VB | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 2 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
