铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

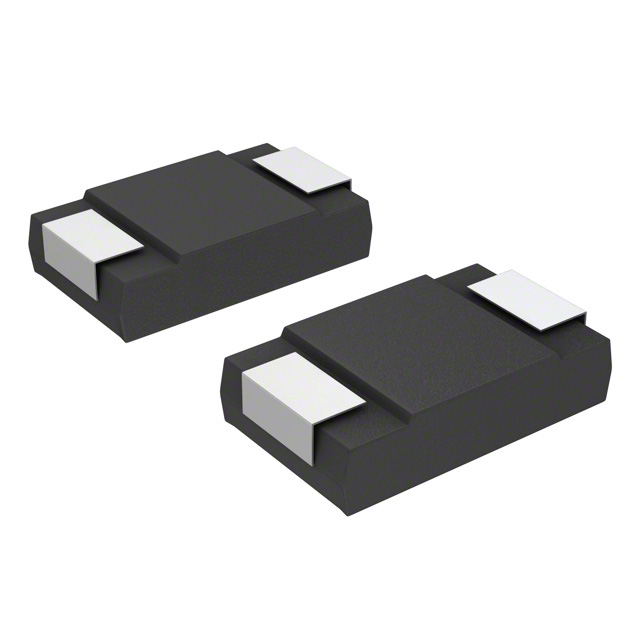

ESRD100M06RCAP ALUM POLY 10UF 20% 6.3V SMD |
0 |
|
规格书 |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 10 µF | ±20% | 6.3 V | 55mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 1.4 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRD100M12BCAP ALUM POLY 10UF 20% 12.5V SMD |
0 |
|
规格书 |
ESRD | Bulk | Obsolete | Polymer | 10 µF | ±20% | 12.5 V | 60mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRD101M02RCAP ALUM POLY 100UF 20% 2V SMD |
0 |
|
规格书 |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 2 V | 18mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 2.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRD101M0EXBCAP ALUM POLY 100UF 20% 2.5V SMD |
0 |
|
规格书 |
ESRD | Bulk | Obsolete | Polymer | 100 µF | ±20% | 2.5 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRD101M0EXRCAP ALUM POLY 100UF 20% 2.5V SMD |
0 |
|
规格书 |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 2.5 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRD121M02XBCAP ALUM POLY 120UF 20% 2V SMD |
0 |
|
规格书 |
ESRD | Bulk | Obsolete | Polymer | 120 µF | ±20% | 2 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRD121M02XRCAP ALUM POLY 120UF 20% 2V SMD |
0 |
|
规格书 |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 120 µF | ±20% | 2 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
ESRD121M04RCAP ALUM POLY 120UF 20% 4V SMD |
0 |
|
规格书 |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 120 µF | ±20% | 4 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRD121M06XRCAP ALUM POLY 120UF 20% 6.3V SMD |
0 |
|
规格书 |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 120 µF | ±20% | 6.3 V | 12mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRD151M04XRCAP ALUM POLY 150UF 20% 4V SMD |
0 |
|
规格书 |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 4 V | 12mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRD151M0ERCAP ALUM POLY 150UF 20% 2.5V SMD |
0 |
|
规格书 |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 2.5 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRD181M0ERCAP ALUM POLY 180UF 20% 2.5V SMD |
0 |
|
规格书 |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 2.5 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRD220M06RCAP ALUM POLY 22UF 20% 6.3V SMD |
0 |
|
规格书 |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | ±20% | 6.3 V | 40mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRD220M08RCAP ALUM POLY 22UF 20% 8V SMD |
0 |
|
规格书 |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | ±20% | 8 V | 28mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRD220M12BCAP ALUM POLY 22UF 20% 12.5V SMD |
0 |
|
规格书 |
ESRD | Bulk | Obsolete | Polymer | 22 µF | ±20% | 12.5 V | 30mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.071" (1.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRD221M02BCAP ALUM POLY 220UF 20% 2V SMD |
0 |
|
规格书 |
ESRD | Bulk | Obsolete | Polymer | 220 µF | ±20% | 2 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRD221M02RCAP ALUM POLY 220UF 20% 2V SMD |
0 |
|
规格书 |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 2 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRD221M0EXBCAP ALUM POLY 220UF 20% 2.5V SMD |
0 |
|
规格书 |
ESRD | Bulk | Obsolete | Polymer | 220 µF | ±20% | 2.5 V | 12mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRD221M0EXRCAP ALUM POLY 220UF 20% 2.5V SMD |
0 |
|
规格书 |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 2.5 V | 12mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
ESRD271M02XBCAP ALUM POLY 270UF 20% 2V SMD |
0 |
|
规格书 |
ESRD | Bulk | Obsolete | Polymer | 270 µF | ±20% | 2 V | 12mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
