铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PLE0J681MDO1TDCAP ALUM POLY 680UF 20% 6.3V TH |
0 |
|
规格书 |
PLE | Cut Tape (CT) | Obsolete | Polymer | 680 µF | ±20% | 6.3 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
875015019003CAP ALUM POLY 180UF 20% 4V SMD |
0 |
|
规格书 |
WCAP-PHGP | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 4 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
875015019004CAP ALUM POLY 220UF 20% 4V SMD |
0 |
|
规格书 |
WCAP-PHGP | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 4 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
875016319003CAP ALUM POLY 390UF 20% 2.5V SMD |
0 |
|
规格书 |
WCAP-PHGP | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 2.5 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
875035019001CAP ALUM POLY 100UF 20% 4V SMD |
0 |
|
规格书 |
WCAP-PHLE | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
UPE1V470MP26308B6CAP ALUM POLY 47UF 20% 35V TH |
0 |
|
规格书 |
UPE | Active | Polymer | 47 µF | ±20% | 35 V | 45mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole | |
|
|
UPE1E820MP26308CAP ALUM POLY 82UF 20% 25V TH |
0 |
|
规格书 |
UPE | Active | Polymer | 82 µF | ±20% | 25 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.8 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole | |
|
|
UGV1E221MP51007UCAP ALUM POLY 220UF 20% 25V TH |
0 |
|
规格书 |
UGV | Active | Polymer | 220 µF | ±20% | 25 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.335" (8.50mm) | - | Through Hole | |
|
ESRD101M06RCAP ALUM POLY 100UF 20% 6.3V SMD |
0 |
|
规格书 |
ESRD | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 6.3 V | 15mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | Bypass, Decoupling | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
MAL218197204E3CAP ALUM POLY 470UF 20% 20V SMD |
0 |
|
规格书 |
181 CPL | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 20 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.3 A @ 100 kHz | 20 mOhms | - | 0.394" Dia (10.00mm) | 0.496" (12.60mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount |
|
|
MAL218197507E3CAP ALUM POLY 820UF 20% 16V SMD |
0 |
|
规格书 |
181 CPL | Tape & Reel (TR) | Active | Polymer | 820 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.4 A @ 100 kHz | 12 mOhms | - | 0.394" Dia (10.00mm) | 0.496" (12.60mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount |
|
PLV1C221MCL1TDCAP ALUM POLY 220UF 20% 16V TH |
0 |
|
规格书 |
PLV | Cut Tape (CT) | Obsolete | Polymer | 220 µF | ±20% | 16 V | 26mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
PCR0J102MCL1GSCAP ALUM POLY 1000UF 20% 6.3V |
0 |
|
规格书 |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 1000 µF | ±20% | 6.3 V | 15mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

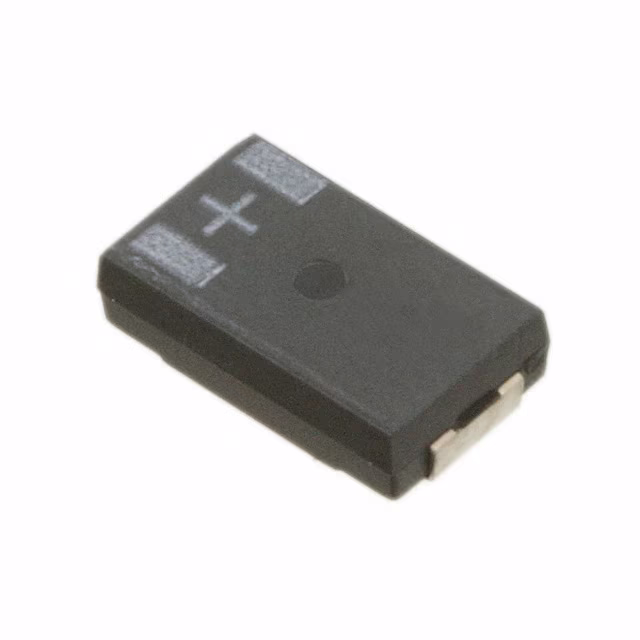

4SXB150MCAP ALUM POLY 150UF 20% 4V SMD |
0 |
|
规格书 |
PC-CON, SXB | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 4 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

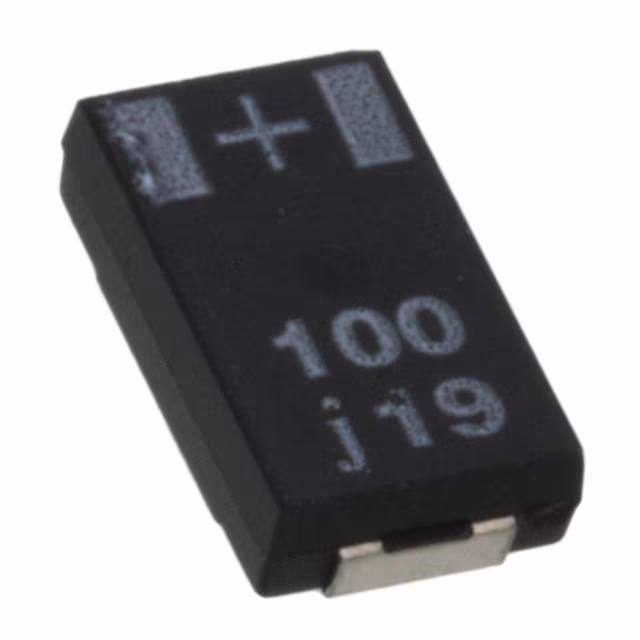

6SXB100MCAP ALUM POLY 100UF 20% 6.3V SMD |
0 |
|
规格书 |
PC-CON, SXB | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 6.3 V | 18mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
875016219006CAP ALUM POLY 470UF 20% 2V SMD |
0 |
|
规格书 |
WCAP-PHGP | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
94SVP106X0020B6CAP ALUM POLY 10UF 20% 20V SMD |
0 |
|
规格书 |
94SVP | Tape & Reel (TR) | Last Time Buy | Polymer | 10 µF | ±20% | 20 V | 170mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 850 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
APXE100ARA331MH80GCAP ALUM POLY 330UF 20% 10V SMD |
19 |
|
规格书 |
NPCAP™-PXE | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 10 V | 19mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.39 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.303" (7.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
EEF-LL0G101RCAP ALUM POLY 100UF 20% 4V SMD |
0 |
|
规格书 |
SP-Cap LL | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 4 V | 18mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
PLV1E151MDL1TDCAP ALUM POLY 150UF 20% 25V TH |
0 |
|
规格书 |
PLV | Cut Tape (CT) | Obsolete | Polymer | 150 µF | ±20% | 25 V | 26mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
