铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APV1012102M016RCAP ALUM POLY 1000UF 20% 16V SMD |
0 |
|
规格书 |
APV | Tape & Reel (TR) | Active | Polymer | 1000 µF | ±20% | 16 V | 18mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 215 mA @ 120 Hz | 4.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
RNS1D220MDS1JTCAP ALUM POLY 22UF 20% 20V TH |
0 |
|
规格书 |
FPCAP, RNS | Cut Tape (CT) | Active | Polymer | 22 µF | ±20% | 20 V | 49mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 190 mA @ 120 Hz | 1.9 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | - | Through Hole |
|
|
APZ0811102M010RCAP ALUM POLY 1000UF 20% 10V SMD |
0 |
|
规格书 |
APZ | Tape & Reel (TR) | Active | Polymer | 1000 µF | ±20% | 10 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 210 mA @ 120 Hz | 4.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APXC2R5ARA471MH70GCAP ALUM POLY 470UF 20% 2.5V SMD |
0 |
|
规格书 |
NPCAP™-PXC | Tape & Reel (TR) | Obsolete | Polymer | 470 µF | ±20% | 2.5 V | 17mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.42 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
MAL218597504E3CAP ALUM POLY 150UF 20% 16V SMD |
0 |
|
- |
185 CPNZ | Box | Active | Polymer | 150 µF | ±20% | 16 V | 26mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 155 mA @ 120 Hz | 3.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | 0.335" L x 0.335" W (8.50mm x 8.50mm) | Surface Mount |
|
RHT1A561MDN1PHCAP ALUM POLY 560UF 20% 10V TH |
0 |
|
规格书 |
FPCAP, RHT | Tape & Box (TB) | Active | Polymer | 560 µF | ±20% | 10 V | 13mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 525 mA @ 120 Hz | 5.25 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
A700V686M006ATE025CAP ALUM POLY 68UF 20% 6.3V SMD |
0 |
|
规格书 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 6.3 V | 25mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
RL81C471MDN1CAP ALUM |
0 |
|
规格书 |
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RL81C471MCN1CAP ALUM HYBRID 22UF 20% 50V SMD |
0 |
|
规格书 |
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
APV0811221M025RCAP ALUM POLY 220UF 20% 25V SMD |
0 |
|
规格书 |
APV | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 25 V | 27mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 135 mA @ 120 Hz | 2.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
MAL218497002E3CAP ALUM POLY 47UF 20% 35V SMD |
0 |
|
- |
184 CPNS | Box | Active | Polymer | 47 µF | ±20% | 35 V | 50mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 80 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
PCF0G471MCL1GSCAP ALUM POLY 470UF 20% 4V SMD |
0 |
|
规格书 |
PCF | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 4 V | 17mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
APZ0811270M080RCAP ALUM POLY 27UF 20% 80V SMD |
0 |
|
规格书 |
APZ | Tape & Reel (TR) | Active | Polymer | 27 µF | ±20% | 80 V | 50mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 30 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
MAL218497412E3CAP ALUM POLY 220UF 20% 10V SMD |
0 |
|
- |
184 CPNS | Box | Active | Polymer | 220 µF | ±20% | 10 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 260 mA @ 120 Hz | 5.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
RHA0809560M040BCAP ALUM HYBRID 56UF 20% 40V TH |
0 |
|
规格书 |
RHA | Bulk | Active | Hybrid | 56 µF | ±20% | 40 V | 32mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 170 mA @ 100 Hz | 1.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.433" (11.00mm) | - | Through Hole |
|
RNU1V470MDN1PXCAP ALUM POLY 47UF 20% 35V TH |
0 |
|
规格书 |
FPCAP, RNU | Tape & Box (TB) | Active | Polymer | 47 µF | ±20% | 35 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 360 mA @ 120 Hz | 3.6 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
APXG200ARA270ME46GCAP ALUM POLY 27UF 20% 20V SMD |
0 |
|
规格书 |
NPCAP™-PXG | Tape & Reel (TR) | Obsolete | Polymer | 27 µF | ±20% | 20 V | 55mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.77 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.189" (4.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
10SEP120M+TSSCAP ALUM POLY 120UF 20% 10V TH |
0 |
|
规格书 |
OS-CON™, SEP | Tape & Box (TB) | Active | Polymer | 120 µF | ±20% | 10 V | 35mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 128 mA @ 120 Hz | 2.56 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole |
|

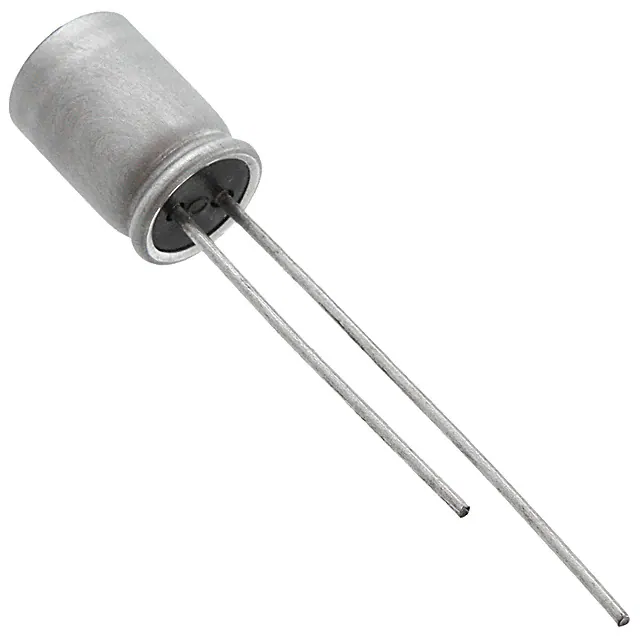

2SEPC330MWCAP ALUM POLY 330UF 20% 2.5V TH |
0 |
|
规格书 |
OS-CON™, SEPC | Bulk | Obsolete | Polymer | 330 µF | ±20% | 2.5 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 280 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|
MAL218697403E3CAP ALUM POLY 270UF 20% 10V SMD |
0 |
|
- |
186 CPNT | Box | Active | Polymer | 270 µF | ±20% | 10 V | 25mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 150 mA @ 120 Hz | 3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | 0.335" L x 0.335" W (8.50mm x 8.50mm) | Surface Mount |
