铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

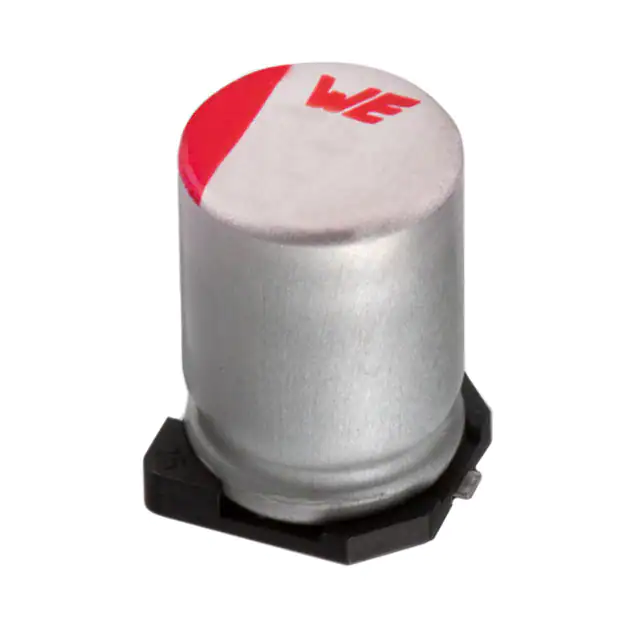

875075355002CAP ALUM POLY 220UF 20% 16V SMD Würth Elektronik |
2,297 |
|
规格书 |
WCAP-PSLC | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 235 mA @ 120 Hz | 4.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.461" (11.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
875075355004CAP ALUM POLY 330UF 20% 16V SMD Würth Elektronik |
529 |
|
规格书 |
WCAP-PSLC | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 235 mA @ 120 Hz | 4.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.461" (11.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
870055674005CAP ALUM POLY 47UF 20% 35V TH Würth Elektronik |
1,667 |
|
规格书 |
WCAP-PTHR | Cut Tape (CT) | Active | Polymer | 47 µF | ±20% | 35 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 144.5 mA @ 120 Hz | 2.89 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
870575873001CAP ALUM HYBRID 10UF 20% 63V TH Würth Elektronik |
2,773 |
|
规格书 |
WCAP-HTG5 | Cut Tape (CT) | Active | Hybrid | 10 µF | ±20% | 63 V | 100mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 106 mA @ 100 Hz | 1.06 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|

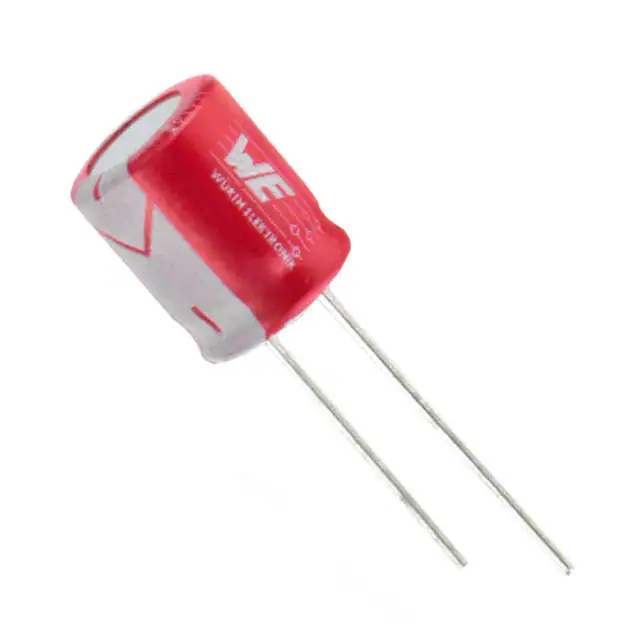

870025575007CAP ALUM POLY 220UF 20% 25V TH Würth Elektronik |
1,406 |
|
规格书 |
WCAP-PTG5 | Cut Tape (CT) | Active | Polymer | 220 µF | ±20% | 25 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 245 mA @ 120 Hz | 4.9 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|

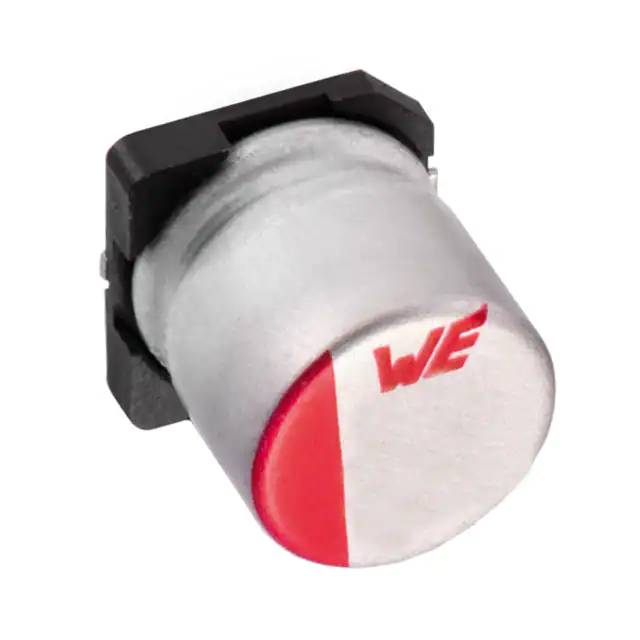

875115252003CAP ALUM POLY 470UF 20% 10V SMD Würth Elektronik |
1,366 |
|
规格书 |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 10 V | 11mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 240 mA @ 120 Hz | 4.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.343" (8.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
875575759001CAP ALUM HYBRID 10UF 20% 50V SMD Würth Elektronik |
1,680 |
|
规格书 |
WCAP-HSG5 | Tape & Reel (TR) | Active | Hybrid | 10 µF | ±20% | 50 V | 120mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 75 mA @ 100 Hz | 750 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
875115350002CAP ALUM POLY 220UF 20% 16V SMD Würth Elektronik |
5,222 |
|
规格书 |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 16 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 175 mA @ 120 Hz | 3.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.303" (7.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
875115452003CAP ALUM POLY 100UF 20% 20V SMD Würth Elektronik |
710 |
|
规格书 |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 20 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 175 mA @ 120 Hz | 3.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.343" (8.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
875105645005CAP ALUM POLY 47UF 20% 35V SMD Würth Elektronik |
7,656 |
|
规格书 |
WCAP-PSLP | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 35 V | 50mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 80 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
