铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

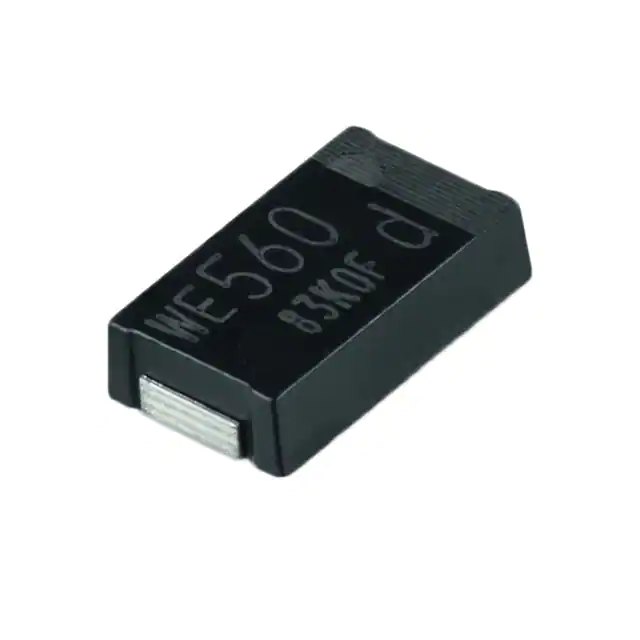

875046219002CAP ALUM POLY 470UF 20% 2V SMD Würth Elektronik |
2,867 |
|
规格书 |
WCAP-PHSE | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2 V | 3mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 10.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
870056175003CAP ALUM POLY 22UF 20% 80V TH Würth Elektronik |
663 |
|
规格书 |
WCAP-PTHR | Cut Tape (CT) | Active | Polymer | 22 µF | ±20% | 80 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 140 mA @ 120 Hz | 2.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
875075655002CAP ALUM POLY 68UF 20% 35V SMD Würth Elektronik |
1,142 |
|
规格书 |
WCAP-PSLC | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 35 V | 28mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 165 mA @ 120 Hz | 3.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
875115852001CAP ALUM POLY 10UF 20% 63V SMD Würth Elektronik |
146 |
|
规格书 |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 63 V | 45mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 75 mA @ 120 Hz | 1.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
875115952001CAP ALUM POLY 6.8UF 20% 100V SMD Würth Elektronik |
387 |
|
规格书 |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 6.8 µF | ±20% | 100 V | 48mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 75 mA @ 120 Hz | 1.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
875075855002CAP ALUM POLY 22UF 20% 63V SMD Würth Elektronik |
281 |
|
规格书 |
WCAP-PSLC | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 63 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 90 mA @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.461" (11.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
875116157002CAP ALUM POLY 15UF 20% 80V SMD Würth Elektronik |
454 |
|
规格书 |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 15 µF | ±20% | 80 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 95 mA @ 120 Hz | 1.9 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
875115657008CAP ALUM POLY 120UF 20% 35V SMD Würth Elektronik |
482 |
|
规格书 |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 35 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 160 mA @ 120 Hz | 3.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
870055874001CAP ALUM POLY 10UF 20% 63V TH Würth Elektronik |
1,450 |
|
规格书 |
WCAP-PTHR | Cut Tape (CT) | Active | Polymer | 10 µF | ±20% | 63 V | 55mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 70 mA @ 120 Hz | 1.4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
875075855005CAP ALUM POLY 39UF 20% 63V SMD Würth Elektronik |
1,740 |
|
规格书 |
WCAP-PSLC | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 63 V | 27mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 175 mA @ 120 Hz | 3.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
