铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCX1D121MCL6GSCAP ALUM POLY 120UF 20% 20V SMD |
0 |
|
规格书 |
PCX | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 20 V | 29mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 1.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PLX1E820MCL1TDCAP ALUM POLY 82UF 20% 25V TH |
2 |
|
规格书 |
PLX | Cut Tape (CT) | Active | Polymer | 82 µF | ±20% | 25 V | 28mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
HHXB250ARA331MJA0GCAP ALUMHYB 330UF 20% 25V SMD |
4 |
|
规格书 |
HXB | Tape & Reel (TR) | Not For New Designs | Hybrid | 330 µF | ±20% | 25 V | 20mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.406" (10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
-Photo-Taped-Size-G16.jpg)
|
EEH-AZS1E561BCAP ALUM HYBRID 560UF 20% 25V TH |
9 |
|
规格书 |
ZS | Cut Tape (CT) | Active | Hybrid | 560 µF | ±20% | 25 V | 14mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 600 mA @ 100 Hz | 4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.657" (16.70mm) | - | Through Hole |
|
EEH-ZF1E151VCAP ALUMHYB 150UF 20% 25V SMD |
0 |
|
规格书 |
ZF, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 25 V | 27mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 120 mA @ 100 Hz | 800 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCX1E820MCL6GSCAP ALUM POLY 82UF 20% 25V SMD |
0 |
|
规格书 |
PCX | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 25 V | 30mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 1.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCX1C151MCL1GSCAP ALUM POLY 150UF 20% 16V SMD |
0 |
|
规格书 |
PCX | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 16 V | 33mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 1.9 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

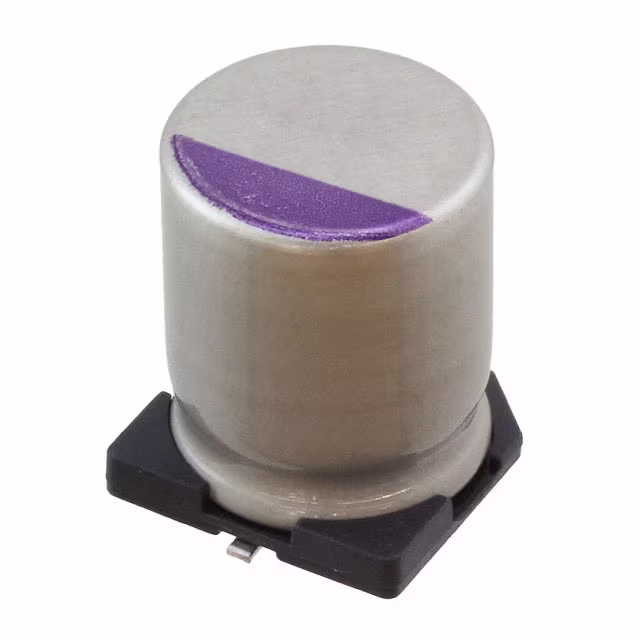

2R5SVPC2700MCAP ALUM POLY 2700UF 20% 2.5V |
0 |
|
规格书 |
OS-CON™, SVPC | Tape & Reel (TR) | Active | Polymer | 2700 µF | ±20% | 2.5 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 253.5 mA @ 120 Hz | 5.07 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCX1H100MCS1GSCAP ALUM POLY 10UF 20% 50V SMD |
0 |
|
规格书 |
PCX | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 50 V | 75mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCV1C271MCL7GSCAP ALUM POLY 270UF 20% 16V SMD |
0 |
|
规格书 |
PCV | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 16 V | 21mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
35PHV270M10X10.5CAP ALUMHYB 270UF 20% 35V SMD |
0 |
|
规格书 |
PHV | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 180 mA @ 120 Hz | 3.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PLX1D121MCL1TDCAP ALUM POLY 120UF 20% 20V TH |
13 |
|
规格书 |
PLX | Cut Tape (CT) | Active | Polymer | 120 µF | ±20% | 20 V | 27mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
100SXV18MXCAP ALUM POLY 18UF 20% 100V SMD |
0 |
|
规格书 |
OS-CON™, SXV | Tape & Reel (TR) | Active | Polymer | 18 µF | ±20% | 100 V | 40mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 117.5 mA @ 120 Hz | 2.35 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
63SXE39MCAP ALUM POLY 39UF 20% 63V TH |
25 |
|
规格书 |
OS-CON™, SXE | Bulk | Active | Polymer | 39 µF | ±20% | 63 V | 25mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 46.5 mA @ 120 Hz | 930 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
RPS1E101MCN1GSCAP ALUM POLY 100UF 20% 25V SMD |
0 |
|
规格书 |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 25 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 332 mA @ 120 Hz | 3.32 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCV1D221MCL7GSCAP ALUM POLY 220UF 20% 20V SMD |
0 |
|
规格书 |
PCV | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 20 V | 22mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCX1V390MCL1GSCAP ALUM POLY 39UF 20% 35V SMD |
0 |
|
规格书 |
PCX | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 35 V | 41mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 1.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
35SVPT120MCAP ALUM POLY 120UF 20% 35V SMD |
0 |
|
规格书 |
OS-CON™, SVPT | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 35 V | 18mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 220 mA @ 120 Hz | 4.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCV1C271MCL2GSCAP ALUM POLY 270UF 20% 16V SMD |
0 |
|
规格书 |
PCV | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 16 V | 24mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCX1H270MCL1GSCAP ALUM POLY 27UF 20% 50V SMD |
0 |
|
规格书 |
PCX | Tape & Reel (TR) | Active | Polymer | 27 µF | ±20% | 50 V | 35mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
