铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RNU1C681MDN1PHCAP ALUM POLY 680UF 20% 16V TH Nichicon |
862 |
|
规格书 |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 680 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|

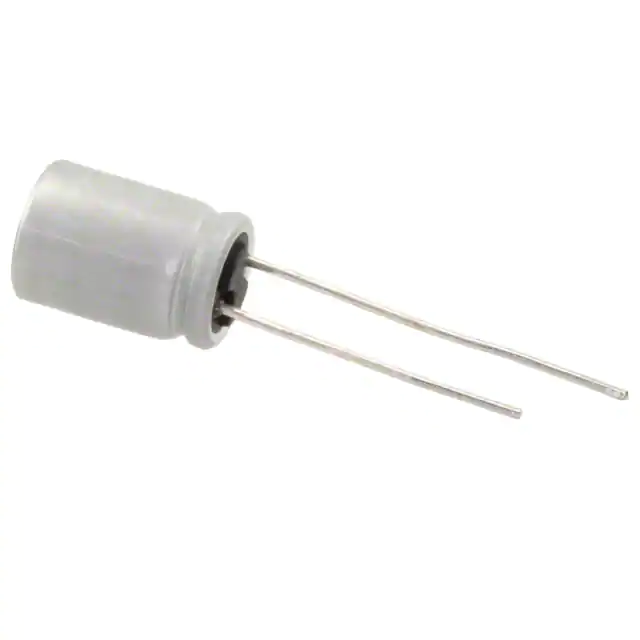

PLS1A271MDO1TDCAP ALUM POLY 270UF 20% 10V TH Nichicon |
1,979 |
|
规格书 |
PLS | Cut Tape (CT) | Active | Polymer | 270 µF | ±20% | 10 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.9 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
PCG0E331MCO1GSCAP ALUM POLY 330UF 20% 2.5V SMD Nichicon |
5,994 |
|
规格书 |
PCG | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2.5 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.3 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
PCF1A331MCL1GSCAP ALUM POLY 330UF 20% 10V SMD Nichicon |
369 |
|
规格书 |
PCF | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 10 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
RPS1J8R2MCN1GSCAP ALUM POLY 8.2UF 20% 63V SMD Nichicon |
1,490 |
|
规格书 |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 8.2 µF | ±20% | 63 V | 41mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 120 mA @ 120 Hz | 1.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|
RPS1C181MCN1GSCAP ALUM POLY 180UF 20% 16V SMD Nichicon |
2,477 |
|
规格书 |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 16 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 370 mA @ 120 Hz | 3.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.461" (11.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
RNS1E330MDN1PHCAP ALUM POLY 33UF 20% 25V TH Nichicon |
715 |
|
规格书 |
FPCAP, RNS | Cut Tape (CT) | Active | Polymer | 33 µF | ±20% | 25 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 380 mA @ 120 Hz | 3.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
|
PCG1C101MCL1GSCAP ALUM POLY 100UF 20% 16V SMD Nichicon |
1,132 |
|
规格书 |
PCG | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 16 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|

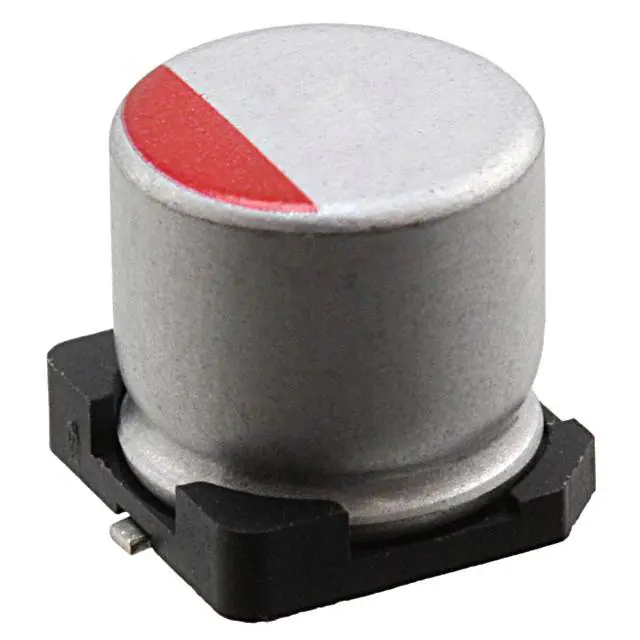

RHS1A331MCN1GSCAP ALUM POLY 330UF 20% 10V SMD Nichicon |
3,065 |
|
规格书 |
FPCAP, RHS | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 10 V | 19mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 339 mA @ 120 Hz | 3.39 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCF1C221MCL9GSCAP ALUM POLY 220UF 20% 16V SMD Nichicon |
1,153 |
|
规格书 |
PCF | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 16 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 5.05 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
