铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

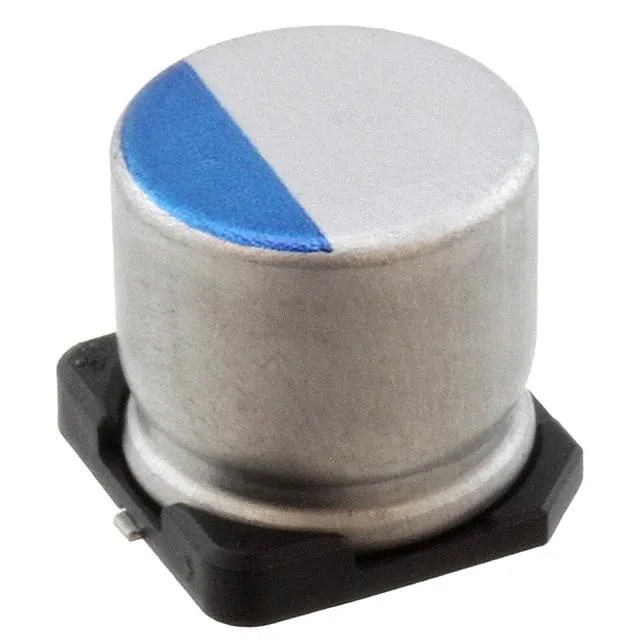

PCV1H470MCL2GSCAP ALUM POLY 47UF 20% 50V SMD Nichicon |
500 |
|
规格书 |
PCV | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 50 V | 37mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCV1E181MCL1GSCAP ALUM POLY 180UF 20% 25V SMD Nichicon |
5,095 |
|
规格书 |
PCV | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 25 V | 28mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCR1E331MCL1GSCAP ALUM POLY 330UF 20% 25V SMD Nichicon |
3,364 |
|
规格书 |
PCR | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 25 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 3.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCV1V101MCL1GSCAP ALUM POLY 100UF 20% 35V SMD Nichicon |
9,505 |
|
规格书 |
PCV | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 35 V | 29mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCR1V221MCL1GSCAP ALUM POLY 220UF 20% 35V SMD Nichicon |
10,630 |
|
规格书 |

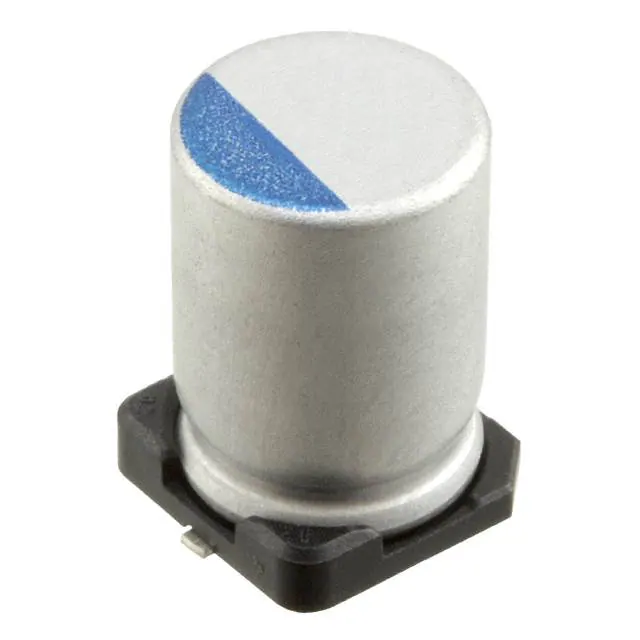

PCR | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 35 V | 21mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 3.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCV1E221MCL2GSCAP ALUM POLY 220UF 20% 25V SMD Nichicon |
851 |
|
规格书 |
PCV | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 25 V | 22mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCR1K470MCL1GSCAP ALUM POLY 47UF 20% 80V SMD Nichicon |
3,952 |
|
规格书 |
PCR | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 80 V | 33mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCV1J470MCL2GSCAP ALUM POLY 47UF 20% 63V SMD Nichicon |
9,285 |
|
规格书 |
PCV | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 63 V | 30mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCV1H101MCL2GSCAP ALUM POLY 100UF 20% 50V SMD Nichicon |
5,973 |
|
规格书 |
PCV | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 50 V | 27mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCV2A100MCL1GSCAP ALUM POLY 10UF 20% 100V SMD Nichicon |
1,768 |
|
规格书 |
PCV | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 100 V | 45mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
