铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

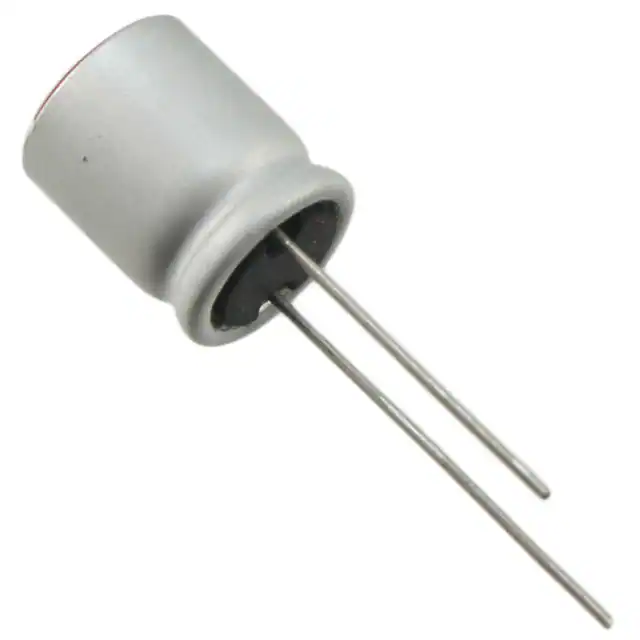

RL80J471MDNASQKXCAP ALUM POLY 470UF 20% 6.3V TH Nichicon |
3,946 |
|
规格书 |
FPCAP, RL8 | Cut Tape (CT) | Active | Polymer | 470 µF | ±20% | 6.3 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 570 mA @ 120 Hz | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
PCS1C390MCL9GSCAP ALUM POLY 39UF 20% 16V SMD Nichicon |
947 |
|
规格书 |
PCS | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 16 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
PCF1A470MCL6GSCAP ALUM POLY 47UF 20% 10V SMD Nichicon |
2,592 |
|
规格书 |
PCF | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 10 V | 26mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.6 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
RHA0E821MCN1GSCAP ALUM POLY 820UF 20% 2.5V SMD Nichicon |
3,749 |
|
规格书 |
FPCAP, RHA | Tape & Reel (TR) | Active | Polymer | 820 µF | ±20% | 2.5 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
RR50G821MDN1CAP ALUM POLY 820UF 20% 4V TH Nichicon |
317 |
|
规格书 |
FPCAP, RR5 | Bulk | Active | Polymer | 820 µF | ±20% | 4 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 722 mA @ 120 Hz | 7.22 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.492" (12.50mm) | - | Through Hole |
|
PCJ0J391MCL1GSCAP ALUM POLY 390UF 20% 6.3V SMD Nichicon |
2,372 |
|
规格书 |
PCJ | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 6.3 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.95 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PLG1A561MCO1TDCAP ALUM POLY 560UF 20% 10V TH Nichicon |
1,498 |
|
规格书 |
PLG | Cut Tape (CT) | Active | Polymer | 560 µF | ±20% | 10 V | 11mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
PCF1C390MCL4GBCAP ALUM POLY 39UF 20% 16V SMD Nichicon |
530 |
|
规格书 |
PCF | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 16 V | 31mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.217" (5.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
RR50E152MDN1CAP ALUM POLY 1500UF 20% 2.5V TH Nichicon |
402 |
|
规格书 |
FPCAP, RR5 | Bulk | Active | Polymer | 1500 µF | ±20% | 2.5 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 722 mA @ 120 Hz | 7.22 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.492" (12.50mm) | - | Through Hole |
|
|
RR50J681MDN1CAP ALUM POLY 680UF 20% 6.3V TH Nichicon |
397 |
|
规格书 |
FPCAP, RR5 | Bulk | Active | Polymer | 680 µF | ±20% | 6.3 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 722 mA @ 120 Hz | 7.22 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.492" (12.50mm) | - | Through Hole |
