铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RNU1V820MDNASQCAP ALUM POLY 82UF 20% 35V TH Nichicon |
0 |
|
规格书 |
FPCAP, RNU | Tape & Box (TB) | Active | Polymer | 82 µF | ±20% | 35 V | 20mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 400 mA @ 120 Hz | 4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
RNU1V820MCNASQCAP ALUM POLY 82UF 20% 35V TH Nichicon |
0 |
|
规格书 |
FPCAP, RNU | Tape & Box (TB) | Active | Polymer | 82 µF | ±20% | 35 V | 20mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 400 mA @ 120 Hz | 4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
PCJ0E561MCL1GSCAP ALUM POLY 560UF 20% 2.5V SMD Nichicon |
0 |
|
规格书 |
PCJ | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 2.5 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCJ0E681MCL1GSCAP ALUM POLY 680UF 20% 2.5V SMD Nichicon |
0 |
|
规格书 |
PCJ | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 2.5 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCL0G561MCL1GSCAP ALUM POLY 560UF 20% 4V SMD Nichicon |
0 |
|
规格书 |
PCL | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 4 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 160 mA @ 120 Hz | 3.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.291" (7.40mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PLG0E182MCO1CAP ALUM POLY 1800UF 20% 2.5V TH Nichicon |
0 |
|
规格书 |
PLG | Bulk | Active | Polymer | 1800 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
PLG0G122MCO1CAP ALUM POLY 1200UF 20% 4V TH Nichicon |
0 |
|
规格书 |
PLG | Bulk | Active | Polymer | 1200 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.9 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
PLG1A561MCO1CAP ALUM POLY 560UF 20% 10V TH Nichicon |
0 |
|
规格书 |
PLG | Bulk | Active | Polymer | 560 µF | ±20% | 10 V | 11mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
PLF1E560MDO2CAP ALUM POLY 56UF 20% 25V TH Nichicon |
0 |
|
规格书 |
PLF | Bulk | Active | Polymer | 56 µF | ±20% | 25 V | 28mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|

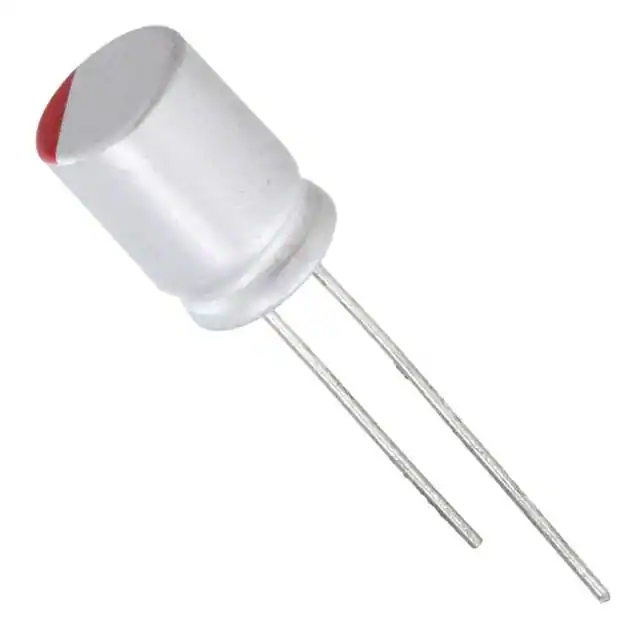

RHT1C331MDN1PHCAP ALUM POLY 330UF 20% 16V TH Nichicon |
0 |
|
规格书 |
FPCAP, RHT | Tape & Box (TB) | Active | Polymer | 330 µF | ±20% | 16 V | 16mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 475 mA @ 120 Hz | 4.75 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
