铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCM1K680MCL1GSCAP ALUM POLY 68UF 20% 80V SMD Nichicon |
98 |
|
规格书 |
PCM | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 80 V | 28mOhm | 8000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 110 mA @ 120 Hz | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.520" (13.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
RL80J471MDN1KXCAP ALUM POLY 470UF 20% 6.3V TH Nichicon |
743 |
|
规格书 |
FPCAP, RL8 | Cut Tape (CT) | Active | Polymer | 470 µF | ±20% | 6.3 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 570 mA @ 120 Hz | 5.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
PLF0E821MCO8CAP ALUM POLY 820UF 20% 2.5V TH Nichicon |
81 |
|
规格书 |
PLF | Bulk | Active | Polymer | 820 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | 280 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.374" (9.50mm) | - | Through Hole |
|
RR50J471MDN1KXCAP ALUM POLY 470UF 20% 6.3V TH Nichicon |
833 |
|
规格书 |
FPCAP, RR5 | Cut Tape (CT) | Active | Polymer | 470 µF | ±20% | 6.3 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 663 mA @ 120 Hz | 6.63 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
RR50J391MDN1CAP ALUM POLY 390UF 20% 6.3V TH Nichicon |
607 |
|
规格书 |
FPCAP, RR5 | Bulk | Active | Polymer | 390 µF | ±20% | 6.3 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 663 mA @ 120 Hz | 6.63 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.453" (11.50mm) | - | Through Hole |
|
PLF1D220MCL2CAP ALUM POLY 22UF 20% 20V TH Nichicon |
176 |
|
规格书 |
PLF | Bulk | Active | Polymer | 22 µF | ±20% | 20 V | 50mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.7 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole |
|
RNS1A680MDS1CAP ALUM POLY 68UF 20% 10V TH Nichicon |
242 |
|
规格书 |
FPCAP, RNS | Bulk | Active | Polymer | 68 µF | ±20% | 10 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 265 mA @ 120 Hz | 2.65 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole |
|

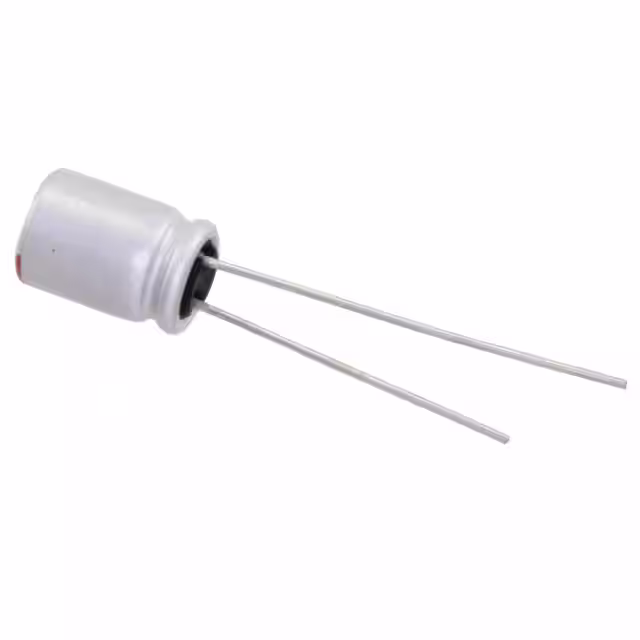

RNS1D330MDS1CAP ALUM POLY 33UF 20% 20V TH Nichicon |
709 |
|
规格书 |
FPCAP, RNS | Bulk | Active | Polymer | 33 µF | ±20% | 20 V | 49mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 220 mA @ 120 Hz | 2.2 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole |
|
RNS0J221MDN1KXCAP ALUM POLY 220UF 20% 6.3V TH Nichicon |
881 |
|
规格书 |
FPCAP, RNS | Cut Tape (CT) | Active | Polymer | 220 µF | ±20% | 6.3 V | 21mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 390 mA @ 120 Hz | 3.9 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
RSA0J271MCN1GSCAP ALUM POLY 270UF 20% 6.3V SMD Nichicon |
502 |
|
规格书 |
FPCAP, RSA | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 6.3 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 316 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
